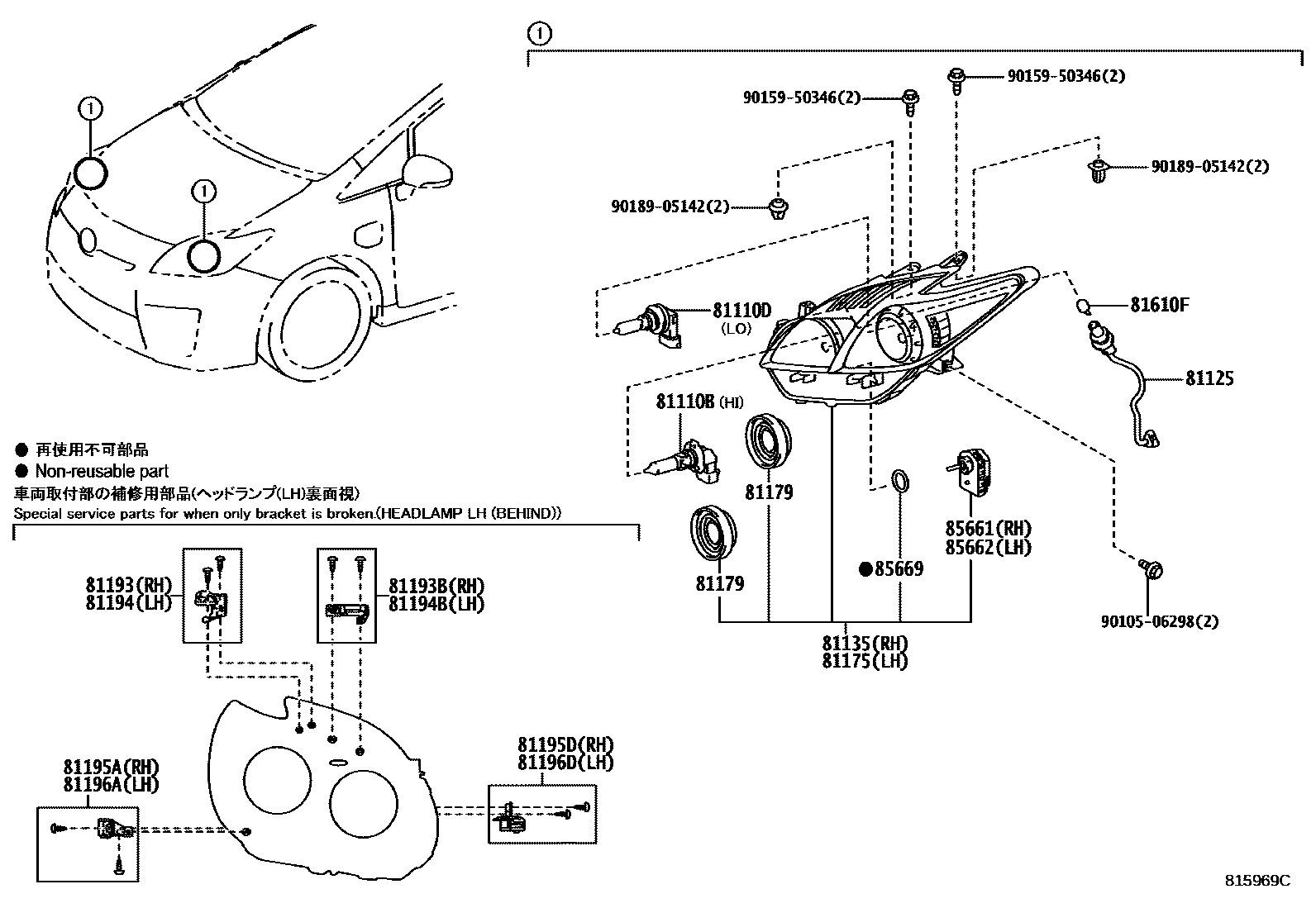

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81125CORD, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
HEADLAMP-LED
81175UNIT ASSY, HEADLAMP, LH
HEADLAMP-LED
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
HEADLAMP-LED
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
HEADLAMP-LED
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
HEADLAMP-LED
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
HEADLAMP-LED
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
HEADLAMP-LED
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
HEADLAMP-LED
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010506298
main90105-06298
9015950346
main90159-50346
9018905142
main90189-05142
21 parts on this diagram · 2 diagrams in section
