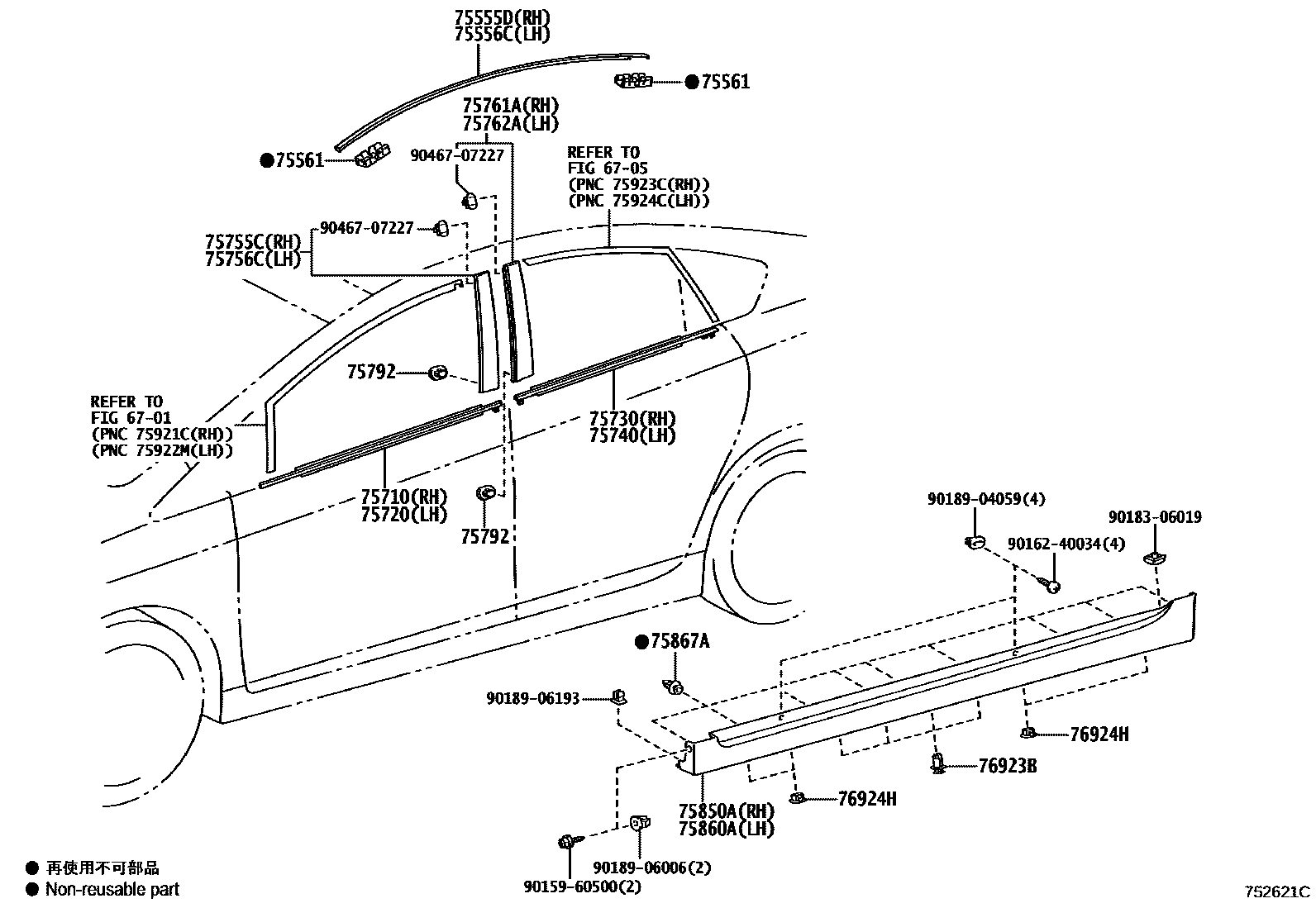

SIDE MOULDING

6701

6705

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-47030iZVW35201201-201506

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-47030iZVW35201201-201506

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iZVW35201201-201506

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-47021iZVW35201201-201506

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-47021iZVW35201201-201506

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-47021iZVW35201201-201506

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-47021iZVW35201201-201506

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-47020iZVW35201201-201506

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-47020iZVW35201201-201506

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-47020iZVW35201201-201506

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-47020iZVW35201201-201506

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iZVW35201201-201506

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75851-47900iZVW35201201-201506

sub75851-47902

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75852-47900iZVW35201201-201506

sub75852-47901

75867ACLIP, ROCKER PANEL MOULDING

main75867-33030iZVW35201201-201212

main75867-68010iZVW35201212-201506

76923BRETAINER, SIDE MUDGUARD

main76923-47010iZVW35201201-201506

76924HRETAINER, SIDE MUDGUARD, NO.2

main76924-47020iZVW35201201-201506

9015960500

main90159-60500

9016240034

main90162-40034

9018306019

main90183-06019

9018904059

main90189-04059

9018906006

main90189-06006

9018906193

main90189-06193

9046707227

main90467-07227

26 parts on this diagram · 1 diagram in section
