ARMREST & VISOR

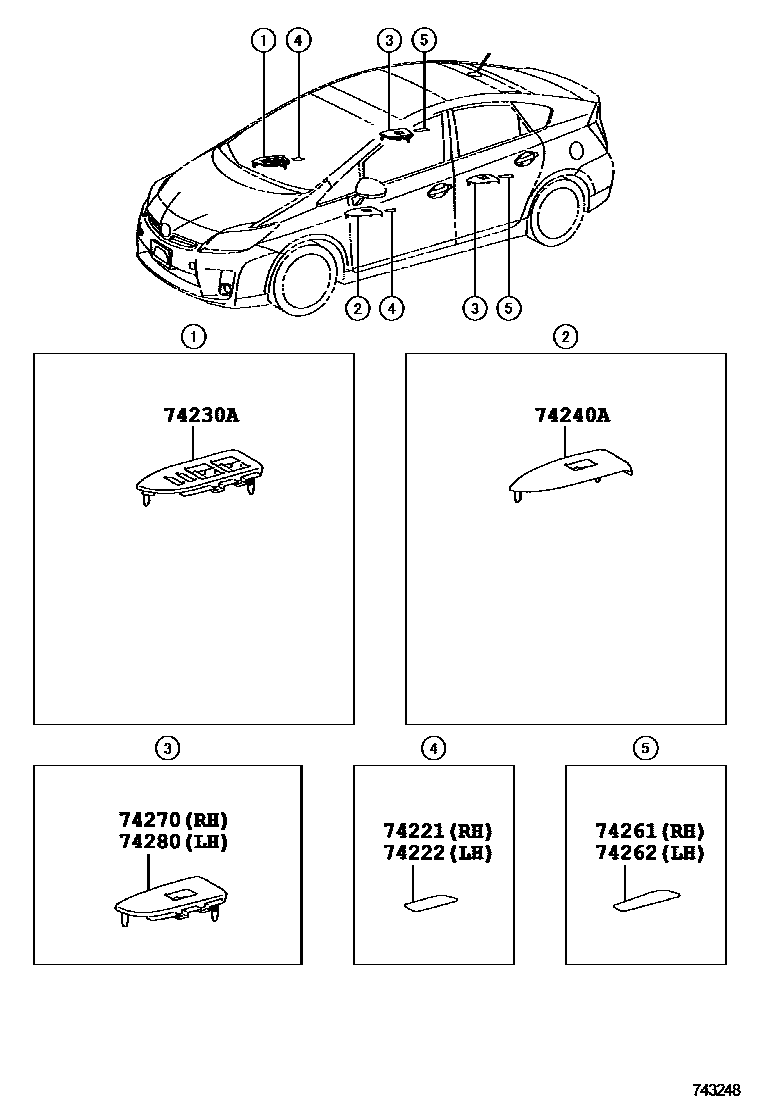

Parts diagram

74221COVER, DOOR ARMREST, RH

main74221-47020i201201-201506

74222COVER, DOOR ARMREST, LH

main74221-47020i201201-201506

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47100i201201-201506

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47080i201201-201506

74261COVER, REAR DOOR ARMREST, RH

main74261-47020i201201-201506

74262COVER, REAR DOOR ARMREST, LH

main74261-47020i201201-201506

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47060i201201-201506

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47060i201201-201506

8 parts on this diagram · 2 diagrams in section
