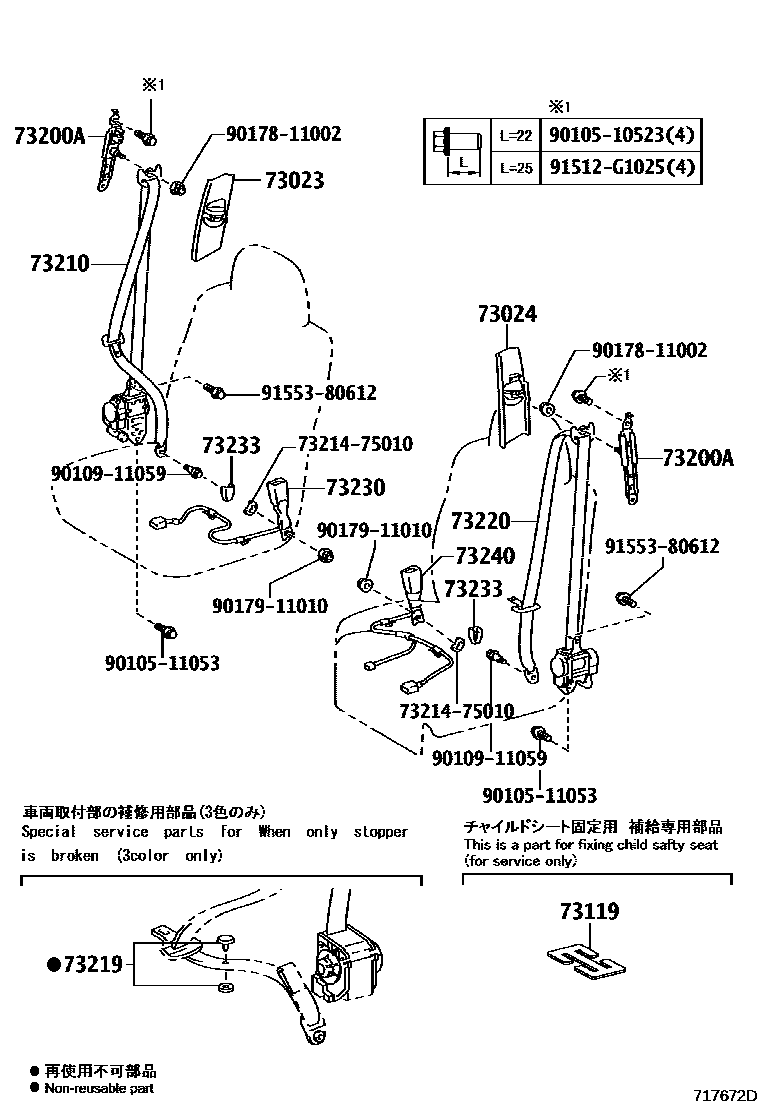

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#,4#,6#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,4#,6#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
GRAY/LT.GRAY,TRIM6#
BLACK/LT.GRAY,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY/LT.GRAY,TRIM6#
BLACK/LT.GRAY,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
MD.GRAY,TRIM6#
BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
MD.GRAY,TRIM6#
BLACK,TRIM2#
MD.GRAY,TRIM6#
BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9010911059
main90109-11059
9017811002
main90178-11002
9017911010
main90179-11010
91512G1025
main91512-G1025
9155380612
main91553-80612
18 parts on this diagram · 2 diagrams in section
