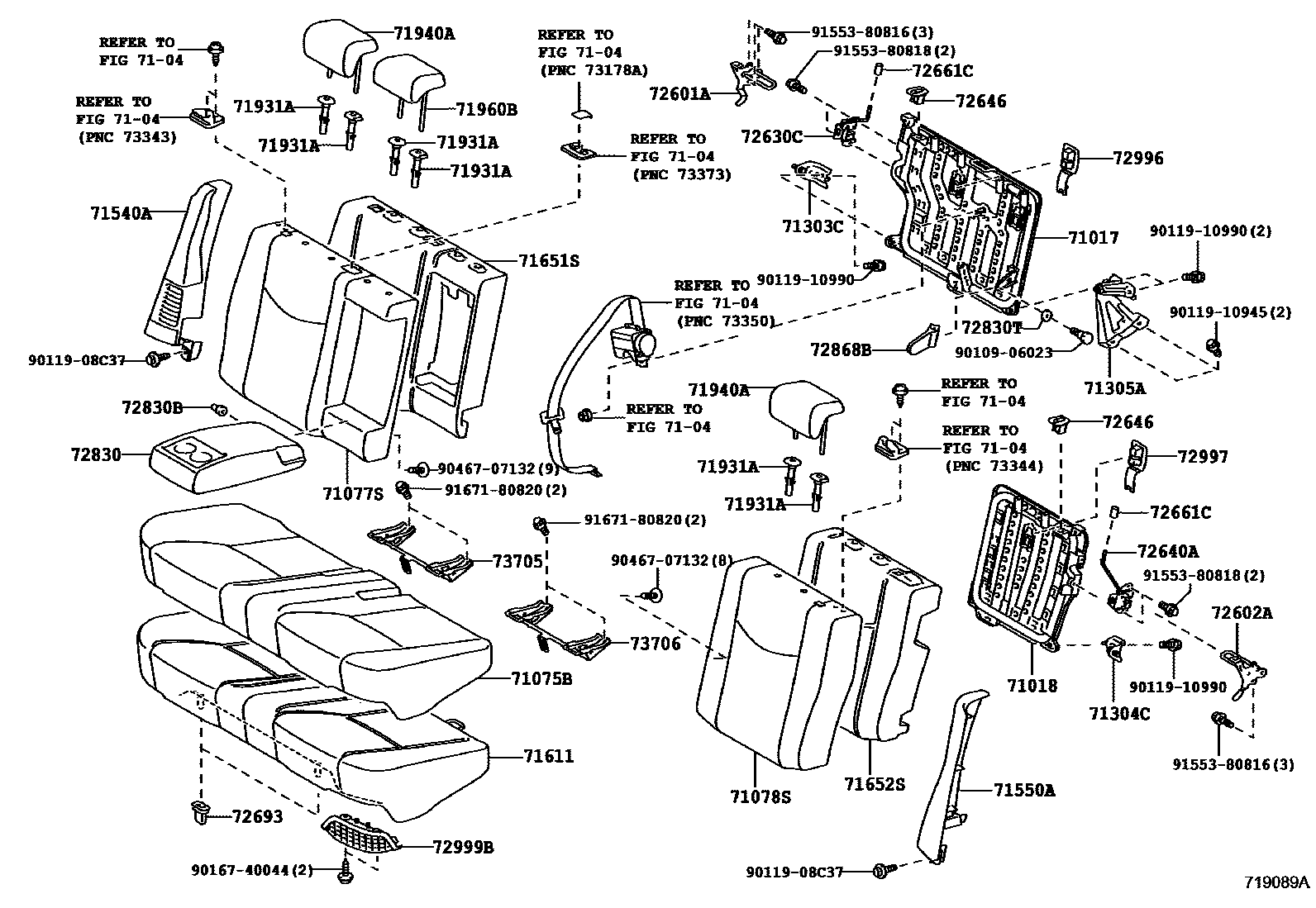

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47110iZVW35201201-201506

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47050iZVW35201201-201506

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47240-C2iZVW35201201-201310

BLACK,TRIM2#

main71075-47240-G2iZVW35201201-201310

AQUA,TRIM6#

main71075-47260-C4iZVW35201310-201506

BLACK,TRIM2#

main71075-47260-G5iZVW35201310-201506

AQUA,TRIM6#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47262-C2iZVW35201201-201310

BLACK,TRIM2#

sub71077-47262

sub71077-47770

main71077-47262-G3iZVW35201201-201310

AQUA/LT.GRAY,TRIM6#

sub71077-47262

sub71077-47770

main71077-47321-C3iZVW35201310-201506

BLACK,TRIM2#

sub71077-47720

sub71077-47321

main71077-47321-G9iZVW35201310-201506

AQUA,TRIM6#

sub71077-47720

sub71077-47321

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47161-C2iZVW35201201-201310

BLACK,TRIM2#

sub71078-47161

sub71078-47162

main71078-47161-G4iZVW35201201-201310

AQUA/LT.GRAY,TRIM6#

sub71078-47161

sub71078-47162

main71078-47190-C4iZVW35201310-201506

BLACK,TRIM2#

sub71078-47190

sub71078-47191

main71078-47190-G9iZVW35201310-201506

AQUA,TRIM6#

sub71078-47190

sub71078-47191

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47020iZVW35201201-201506

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47020iZVW35201201-201506

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47030iZVW35201201-201506

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-47040-C3iZVW35201201-201310

BLACK,TRIM2#

sub71540-47040

sub71540-47041

main71540-47040-G3iZVW35201201-201310

AQUA,TRIM6#

sub71540-47040

sub71540-47041

main71540-47061-C7iZVW35201310-201504

BLACK,TRIM2#

sub71540-47062

sub71540-47063

main71540-47061-G9iZVW35201310-201504

AQUA,TRIM6#

sub71540-47062

sub71540-47063

main71540-47062iZVW35201505-201506

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-47040-C3iZVW35201201-201310

BLACK,TRIM2#

sub71550-47040

main71550-47040-G3iZVW35201201-201310

AQUA,TRIM6#

sub71550-47040

main71550-47061-C7iZVW35201310-201506

BLACK,TRIM2#

sub71550-47062

main71550-47061-G9iZVW35201310-201506

AQUA,TRIM6#

sub71550-47062

71611PAD, REAR SEAT CUSHION

main71503-47110iZVW35201201-201506

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47120iZVW35201201-201506

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47060iZVW35201201-201506

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020-C0iZVW35201201-201506

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-G0iZVW35201201-201506

W(LOCK),AQUA,TRIM6#

sub71930-47020

main71931-47020-C0iZVW35201201-201506

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

main71931-47020-G0iZVW35201201-201506

W/O(LOCK),AQUA,TRIM6#

sub71931-47020

71940AHEADREST ASSY, REAR SEAT

main71940-47120iZVW35201201-201310

main71940-47150-C4iZVW35201310-201506

BLACK,TRIM2#

sub71940-47150

main71940-47150-G5iZVW35201310-201506

AQUA,TRIM6#

sub71940-47150

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47070-C1iZVW35201201-201310

BLACK,TRIM2#

sub71960-47070

main71960-47070-G2iZVW35201201-201310

AQUA,TRIM6#

sub71960-47070

main71960-47090-C4iZVW35201310-201506

BLACK,TRIM2#

sub71960-47090

main71960-47090-G7iZVW35201310-201506

AQUA,TRIM6#

sub71960-47090

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47030iZVW35201201-201506

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47020iZVW35201201-201506

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47030iZVW35201201-201203

sub72630-47031

main72630-47031iZVW35201204-201506

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47030iZVW35201201-201203

sub72640-47031

main72640-47031iZVW35201204-201506

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-47010-C0iZVW35201201-201506

BLACK,TRIM2#

main72646-47010-G0iZVW35201201-201506

AQUA,TRIM6#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-C0iZVW35201201-201506

BLACK,TRIM2#

sub72661-13030

main72661-13030-G1iZVW35201201-201506

AQUA,TRIM6#

sub72661-13030

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iZVW35201201-201506

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47080-C0iZVW35201201-201310

BLACK,TRIM2#

main72830-47080-G1iZVW35201201-201310

AQUQ,TRIM6#

main72830-47150-C1iZVW35201310-201506

BLACK,TRIM2#

main72830-47150-G2iZVW35201310-201506

AQUA,TRIM6#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010iZVW35201201-201506

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020iZVW35201201-201506

72868BCOVER, CENTER ARMREST HINGE

main72868-47020-C0iZVW35201201-201506

BLACK,TRIM2#

main72868-47020-G0iZVW35201201-201506

AQUA,TRIM6#

72996COVER, REAR SEATBACK, RH

main72996-47030-B0iZVW35201201-201506

LT.GRAY,TRIM2#,4#,6#

72997COVER, REAR SEATBACK, LH

main72996-47030-B0iZVW35201201-201506

LT.GRAY,TRIM2#,4#,6#

72999BCOVER, REAR SEAT CUSHION SIDE, LH

main72999-47040-C0iZVW35201201-201506

BLACK,TRIM2#

main72999-47040-G0iZVW35201201-201506

AQUA,TRIM6#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47040iZVW35201201-201506

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47050iZVW35201201-201506

9010906023

main90109-06023

9011908C37

main90119-08C37

9011910945

main90119-10945

9011910990

main90119-10990

9016740044

main90167-40044

9046707132

main90467-07132

9155380816

main91553-80816

9155380818

main91553-80818

9167180820

main91671-80820

42 parts on this diagram · 1 diagram in section
