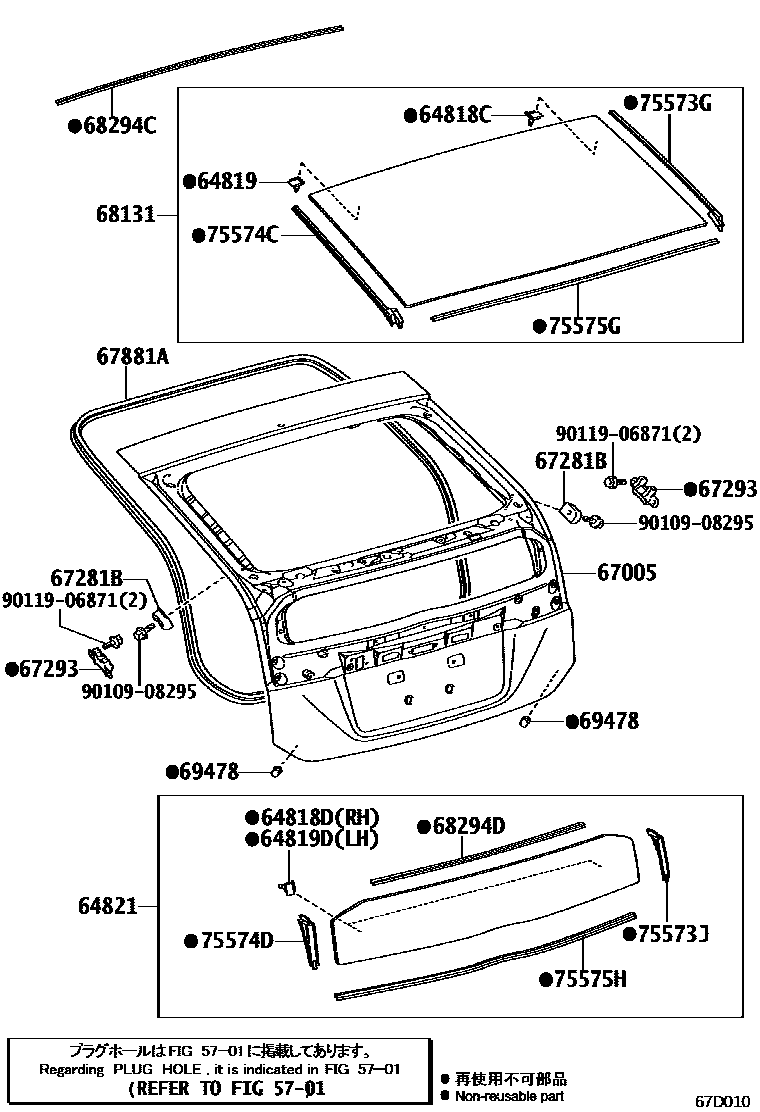

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-47060iZVW35201201-201506

64818DSPACER, BACK WINDOW GLASS, NO.3

main64818-47050iZVW35201201-201506

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-47060iZVW35201201-201506

64819DSPACER, BACK WINDOW GLASS, NO.4

main64819-47050iZVW35201201-201506

64821GLASS, BACK WINDOW FIX

main64821-47030iZVW35201201-201506

67005PANEL SUB-ASSY, BACK DOOR

main67005-47241iZVW35201201-201409

sub67005-47242

main67005-47242iZVW35201410-201506

67281BSTOPPER, BACK DOOR, LOWER

main67281-47010iZVW35201201-201506

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-47020iZVW35201201-201506

67881AWEATHERSTRIP, BACK DOOR

main67881-47022iZVW35201201-201506

68131GLASS, BACK DOOR

main68105-47122iZVW35201201-201506

T=3.1,GREEN

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main56117-50140iZVW35201201-201506

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main68294-47050iZVW35201201-201506

sub56117-74010

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-47010iZVW35201201-201506

75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1

main75573-47080iZVW35201201-201506

75573JMOULDING, BACK WINDOW, OUTSIDE RH NO.2

main75573-47090iZVW35201201-201506

75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1

main75574-47020iZVW35201201-201506

75574DMOULDING, BACK WINDOW, OUTSIDE LH NO.2

main75574-47010iZVW35201201-201506

75575GMOULDING, BACK WINDOW, LOWER NO.1

main75575-47030iZVW35201201-201506

75575HMOULDING, BACK WINDOW, LOWER NO.2

main75575-47020iZVW35201201-201506

9010908295

main90109-08295

9011906871

main90119-06871

22 parts on this diagram · 2 diagrams in section
