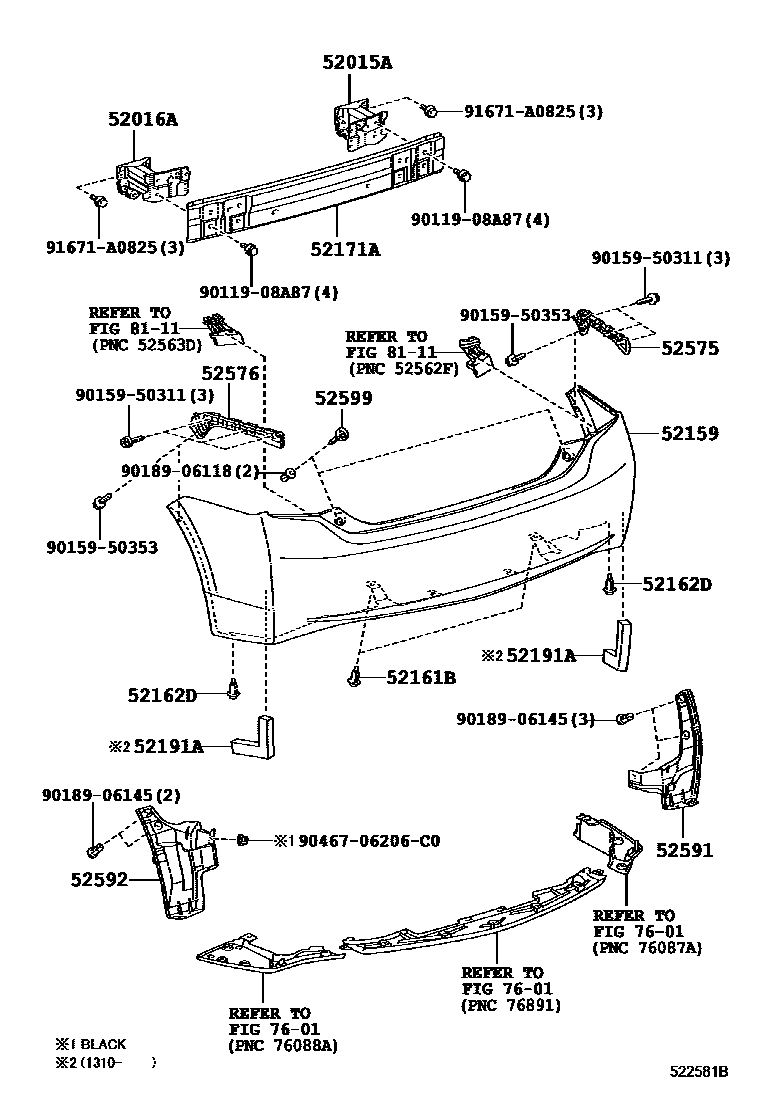

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47050iZVW35201201-201506

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47030iZVW35201201-201506

52159COVER, REAR BUMPER

main52159-47905iZVW35201201-201506

PAINT REQ.

sub52159-47916

52161BPIECE, REAR BUMPER

main52161-16010iZVW35201201-201506

sub52161-0K040

52162DPIECE, REAR BUMPER

main52161-16010iZVW35201201-201506

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-12240iZVW35201201-201506

52191ASEAL, REAR BUMPER ARM

main52191-47020iZVW35201310-201506

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47020iZVW35201201-201402

sub52575-47021

main52575-47021iZVW35201403-201506

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47020iZVW35201201-201402

sub52576-47021

main52576-47021iZVW35201403-201506

52591SEAL, REAR BUMPER SIDE, RH

main52591-47021iZVW35201201-201506

52592SEAL, REAR BUMPER SIDE, LH

main52592-47021iZVW35201201-201506

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iZVW35201201-201506

7601

8111

9011908A87

main90119-08A87

9015950311

main90159-50311

9015950353

main90159-50353

9018906118

main90189-06118

9018906145

main90189-06145

9046706206C0

main90467-06206C0

91671A0825

main91671-A0825

21 parts on this diagram · 1 diagram in section
