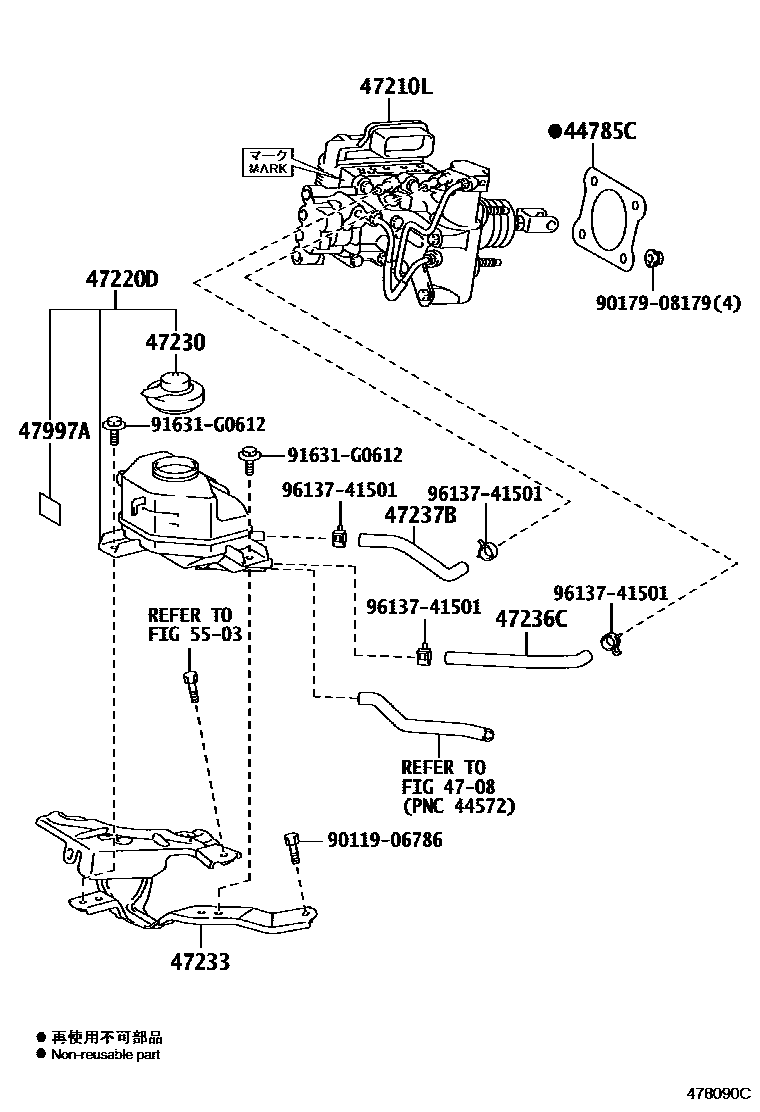

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040iZVW35201201-201506

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47200iZVW35201201-201309

MARK=47210-47370

main47050-47330iZVW35201309-201506

MARK=47210-47490

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47070iZVW35201201-201506

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZVW35201201-201506

47233BRACKET, RESERVOIR

main47233-47040iZVW35201201-201506

47236CHOSE, RESERVOIR TUBE

main47234-47050iZVW35201201-201506

47237BHOSE, RESERVIOR TUBE

main47235-47050iZVW35201201-201506

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZVW35201201-201506

5503

9011906786

main90119-06786

9017908179

main90179-08179

91631G0612

main91631-G0612

9613741501

main96137-41501

14 parts on this diagram · 1 diagram in section
