STANDARD TOOL

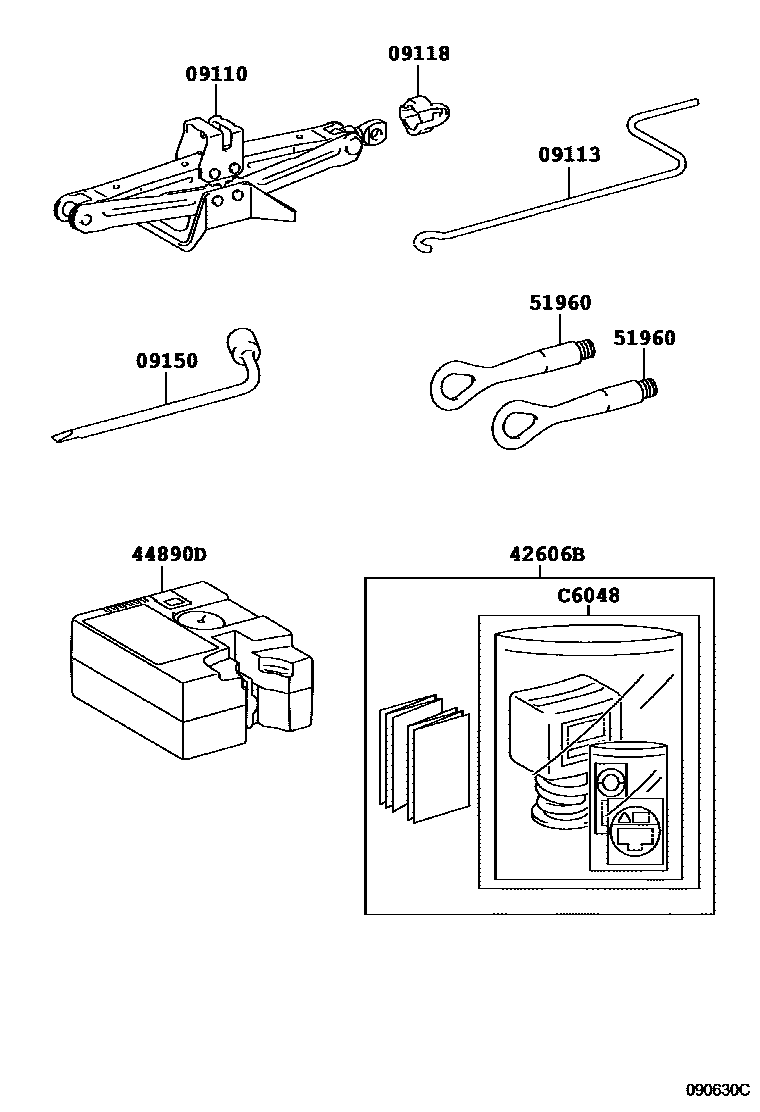

Parts diagram

09110JACK ASSY

main09110-47030i201201-201207

main09110-47050i201208-201212

main09110-47090i201301-201506

09113HANDLE, JACK

main09113-52031i¥450201201-201506

09118COVER, JACK

main09118-47020i201301-201506

09150WRENCH, HUB NUT BOX

main09150-35070i¥1,150201201-201303

main09150-76010i¥710201304-201506

42606BREPAIR KIT, TUBELESS TIRE

main42606-47060i¥3,400201201-201506

44890DCOMPRESSOR ASSY, AIR

main44890-74021i¥7,500201201-201209

sub44890-74022¥7,500

main44890-74022i¥7,500201210-201506

51960HOOK ASSY, FRONT

main51961-50041i¥3,330201201-201305

sub51961-50042¥1,380

main51961-50042i¥1,380201305-201506

C6048REPAIR SET, TIRE

mainC604874041i201201-201209

subC6048-74042¥3,400

mainC604874042i201210-201405

subC6048-74043¥3,400

mainC604874043i201406-201506

sub42606-47060¥3,400

8 parts on this diagram · 1 diagram in section
