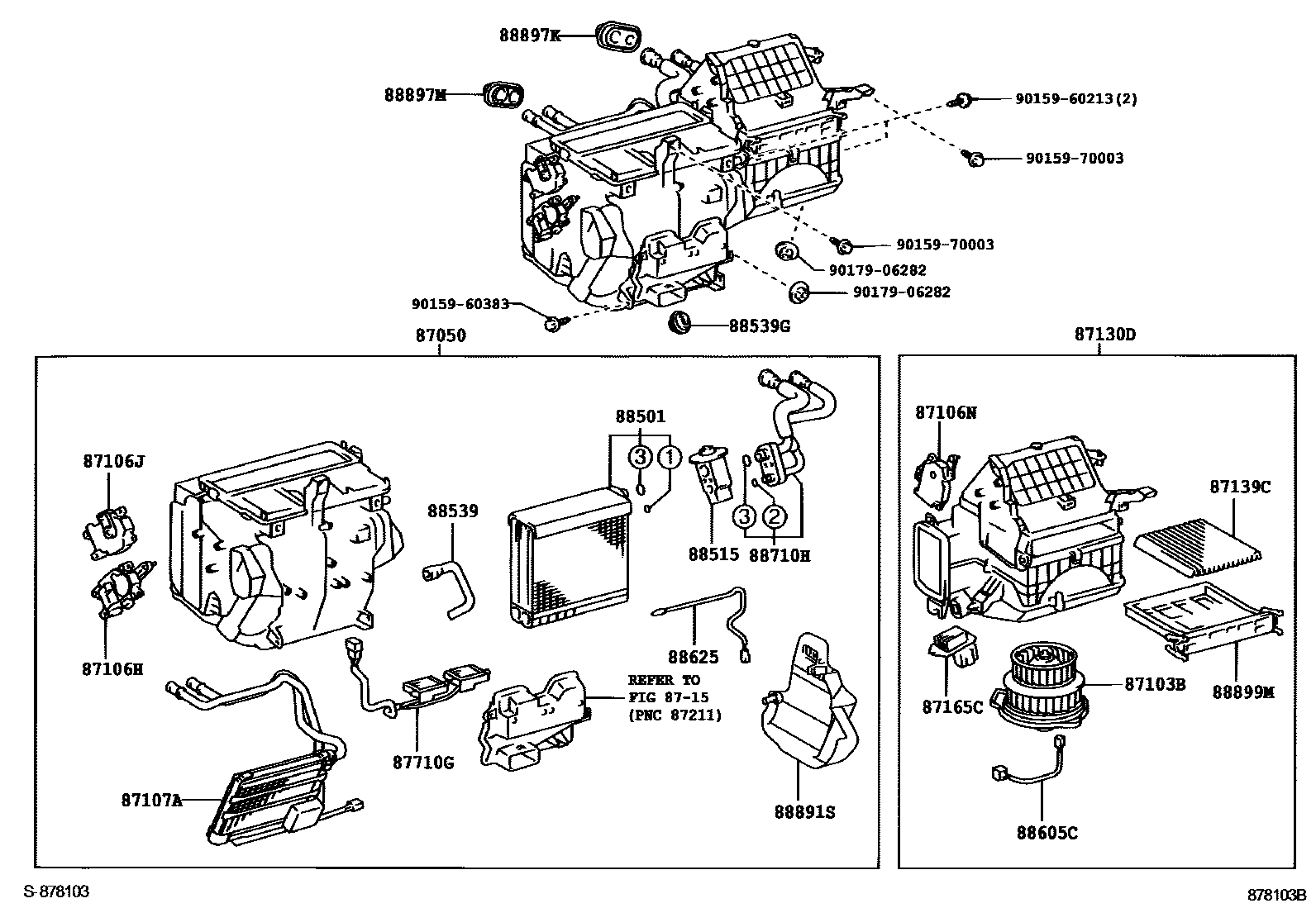

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47110iNHW20200511

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-47020iNHW20200511

sub87103-47050

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-47100iNHW20200511

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-47090iNHW20200511

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-47120iNHW20200511

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47060iNHW20200511

87130DBLOWER ASSY

main87130-47090iNHW20200511-200810

sub87130-47091

main87130-47091iNHW20200811

87139CFILTER, CLEAN AIR

main87139-28010iNHW20200811-200904

main87139-47010iNHW20200511-200811

8715

87165CCONTROL, BLOWER MOTOR

main87165-47020iNHW20200511-200904

87710GQUICK HEATER ASSY

main87710-47030iNHW20200511

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47040iNHW20200511-200802

sub88501-47041

main88501-47041iNHW20200803

88515VALVE, COOLER EXPANSION

main88515-21040iNHW20200511

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-47040iNHW20200511

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26022iNHW20200511

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-47050iNHW20200511

88625THERMISTOR, COOLER, NO.1

main88625-48050iNHW20200511

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47040iNHW20200511

88891SCOVER, COOLER, NO.1

main87237-47030iNHW20200511

88897KGROMMET, (FOR COOLER PIPE)

main88897-35040iNHW20200511

88897MGROMMET (FOR HEATER PIPE)

main90480-01696iNHW20200511

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47010iNHW20200511-200904

9015960213

main90159-60213

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

26 parts on this diagram · 2 diagrams in section
