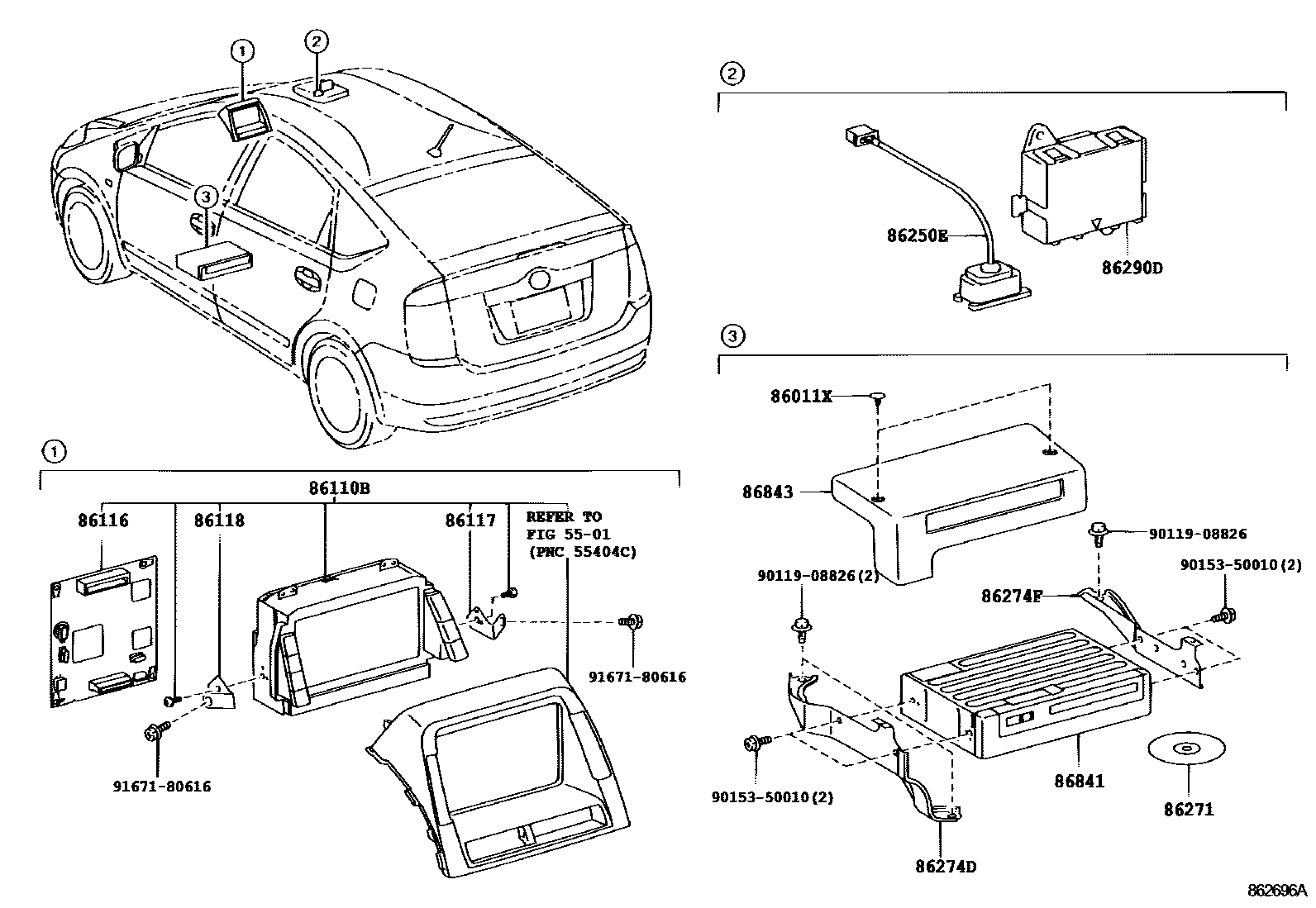

NAVIGATION & FRONT MONITOR DISPLAY

5501

86011XCLIP, NAVIGATION

main90467-05045-22iNHW20200608-200904

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC,BLACK

sub90467-05045

main90467-05045-22iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC),BLACK

sub90467-05045

86110BMULTI-DISPLAY ASSY

main86110-47180-C0iNHW20200511-200904

FUJITSU TEN,BLACK,TRIM1#

main86110-47190-C0iNHW20200511-200608

FUJITSU TEN,EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC),BLACK,TRIM1#

sub86110-47191

main86110-47190-C0iNHW20200608-200704

FUJITSU TEN,EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC,BLACK,TRIM1#

sub86110-47191

main86110-47191-C0iNHW20200705-200904

FUJITSU TEN,EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC,BLACK,TRIM1#

sub86110-47192

86116CONTROLLER, VIDEO

main86116-47070iNHW20200608-200704

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

sub86116-47071

main86116-47070iNHW20200511-200701

sub86116-47071

main86116-47071iNHW20200702

main86116-47071iNHW20200705

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-47010iNHW20200511

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-47010iNHW20200511

86250EMICROPHONE ASSY, AMPLIFIER

main86250-47020iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC)

main86250-47020iNHW20200608-200904

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

86271DISC, DISC PLAYER

main86807-0N013iNHW20200511-200602

MAP DISC(DOP)-WITH

sub86807-0W021

main86807-0W021iNHW20200603-200608

MAP DISC(DOP)-WITH

sub86807-0W022

main86807-0W022iNHW20200608-200707

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

sub86807-0W023

main86807-0W023iNHW20200708-200804

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

sub86807-0W024

main86807-0W024iNHW20200805

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

sub86807-0W025

86274DBRACKET, DISC PLAYER

main86274-47050iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC)

main86274-47050iNHW20200608

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

86274FBRACKET, DISC PLAYER, NO.2

main86274-47060iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC)

main86274-47060iNHW20200608

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

86290DAMPLIFIER ASSY, MICROPHONE

main86290-47010iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC)

main86290-47010iNHW20200608-200904

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

86841COMPUTER, NAVIGATION

main86841-33090iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC)

main86841-33090iNHW20200608

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

86843COVER, NAVIGATION COMPUTER

main86804-47010iNHW20200511-200608

EMV(W/NAVIGATION SYSTEM)-WITH(W/O MAP DISC)

main86804-47010iNHW20200608

EMV(W/NAVIGATION SYSTEM)-WITH(CHINA) WITH MAP DISC

9011908826

main90119-08826

9015350010

main90153-50010

9167180616

main91671-80616

16 parts on this diagram · 1 diagram in section
