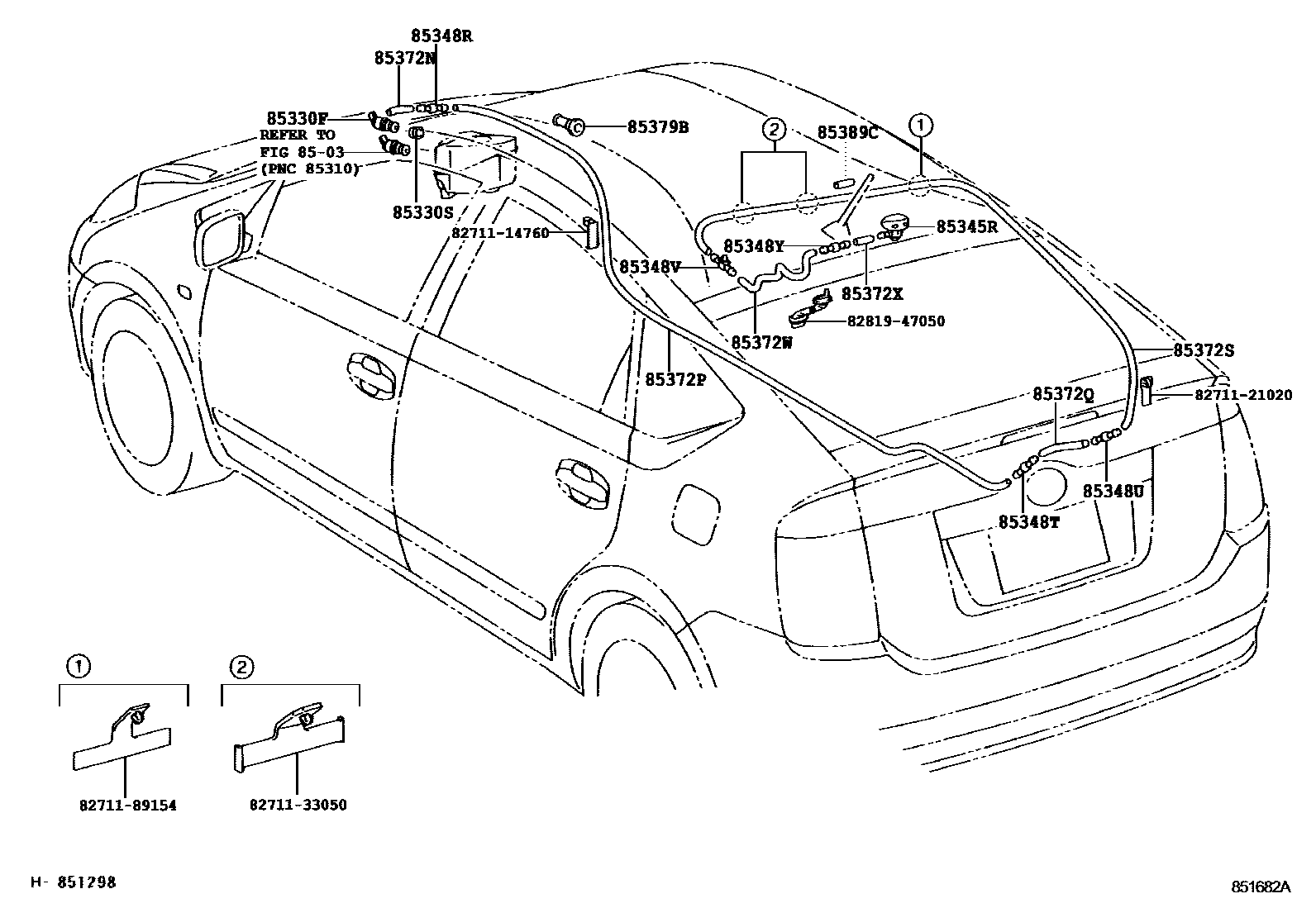

REAR WASHER

8503

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180iNHW20200511

85330SBUSH, REAR WASHER JAR

main85336-60300iNHW20200511

85345RNOZZLE, REAR WASHER

main85391-47010iNHW20200511

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iNHW20200511

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-10260iNHW20200511

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-10260iNHW20200511

85348VJOINT, REAR WASHER HOSE, NO.4

main85375-20800iNHW20200511

85348YJOINT, REAR WASHER HOSE, NO.5

main85375-10260iNHW20200511

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNHW20200511

L=1450(*H,L=60)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iNHW20200511

L=3300(*H,L=3000)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iNHW20200511

L=1000(*H,L=40)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33589iNHW20200511

L=3300(*H,L=1810)

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-33299iNHW20200511

L=1000(*H,L=290)

85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6

main90446-07001iNHW20200511

L=1800(*H,L=60)

85379BGROMMET, WASHER, A

main85379-16180iNHW20200511

85389CPROTECTOR, WASHER

main85389-28520iNHW20200707

8271114760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14760

8271121020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-21020

8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33050

8271189154WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89154

8281947050GROMMET, WIRING HARNESS

main82819-47050

22 parts on this diagram · 1 diagram in section
