HEV INVERTER

F1786TRANSISTOR, POWER MODULE INTELLIGENT, NO.1

main04899-47010iNHW20200511-200904

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484547020iNHW20200511-200904

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911847020iNHW20200511

G9200INVERTER ASSY, W/CONVERTER

mainG920047120iNHW20200602-200705

subG9200-47121

mainG920047121iNHW20200706

mainG920047130iNHW20200511-200602

subG9200-47120

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920947040iNHW20200511

G9214BRACKET, INVERTER, NO.1

mainG921447031iNHW20200511

G9215BRACKET, INVERTER, NO.2

mainG921547031iNHW20200511

G9216BRACKET, INVERTER, NO.3

mainG921647021iNHW20200511

G9221COVER, INVERTER

mainG902247030iNHW20200511

G9251SEAT, INVERTER NAME

mainG925147010iNHW20200511

G9258ACAP, INVERTER RESERVE TANK

mainG925847011iNHW20200511-200904

subG9258-28012

G9270CONVERTER ASSY, EV

mainG927047040iNHW20200511-200904

8868847110BRACKET, COOLER DIAPHRAGM

main88688-47110

9011006031

main90110-06031

9011908827

main90119-08827

9014860047

main90148-60047

9155180612

main91551-80612

9165160614

main91651-60614

9167380614

main91673-80614

9167380618

main91673-80618

9415180600

main94151-80600

9676124018

main96761-24018

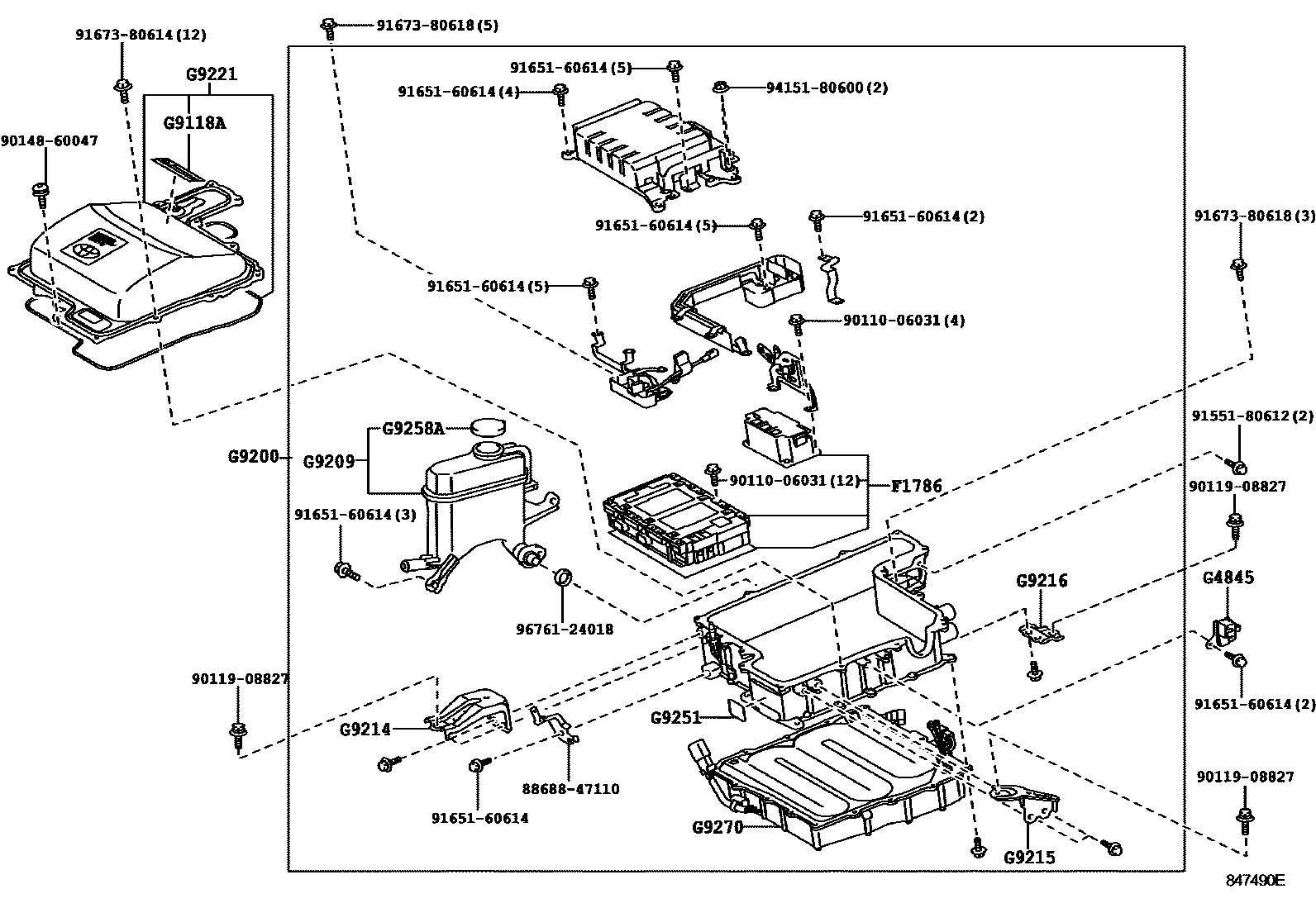

22 parts on this diagram · 1 diagram in section
