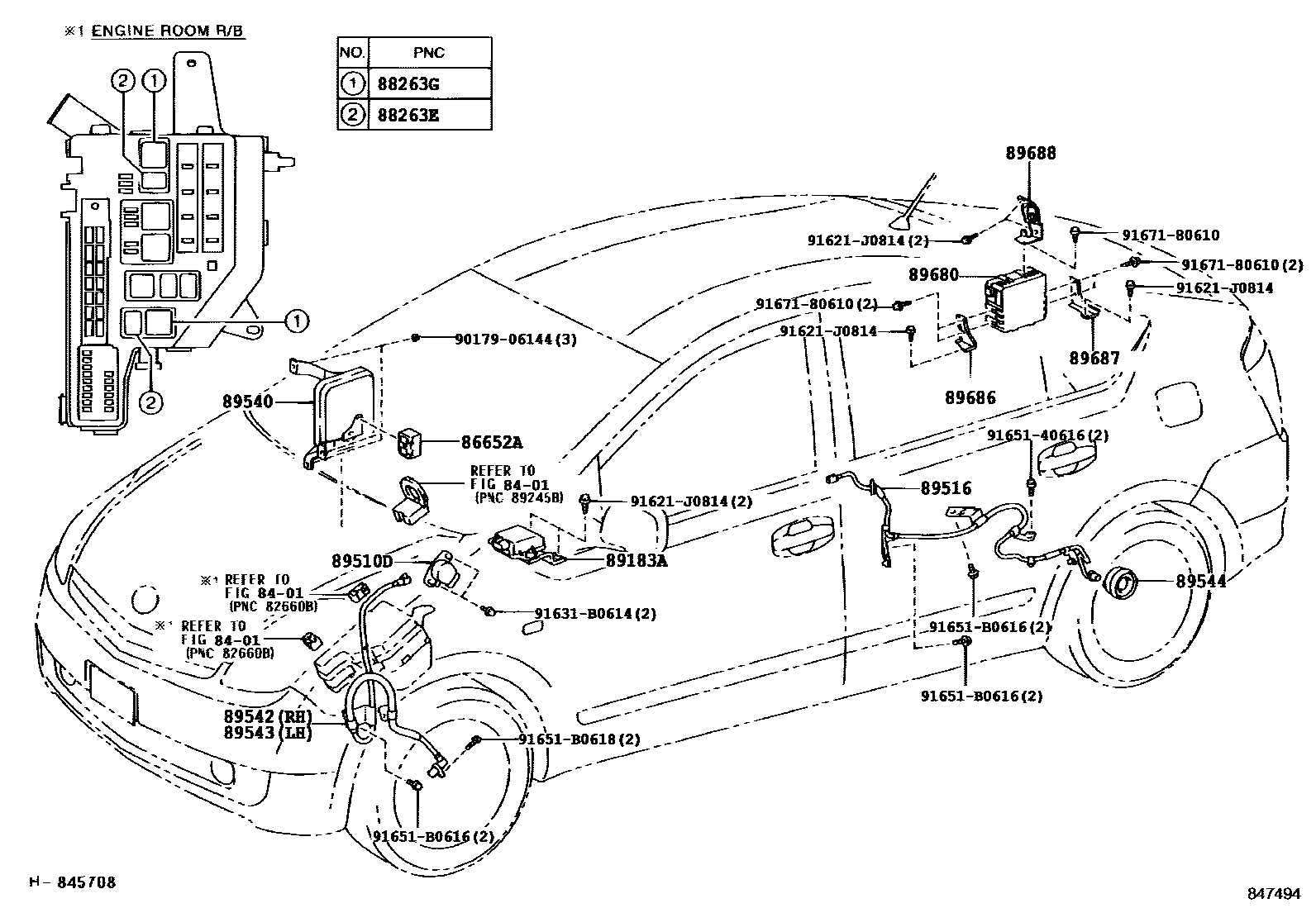

ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-20010iNHW20¥4,190200511

88263ERELAY, SKID CONTROL NO.2

main88263-32070iNHW20¥2,810200511

88263GRELAY, SKID CONTROL

main88263-21010iNHW20¥2,740200511

89183ASENSOR, YAWRATE

main89180-47010iNHW20¥120,000200511

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47010iNHW20¥9,800200511

89516WIRE, SKID CONTROL SENSOR

main89516-47050iNHW20¥2,840200511

RH

main89516-47060iNHW20¥2,840200511

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-47100iNHW20200511-200808

sub89540-47130

main89540-47130iNHW20200809

89542SENSOR, SPEED, FRONT RH

main89542-47020iNHW20¥21,700200511

89543SENSOR, SPEED, FRONT LH

main89543-47020iNHW20¥21,700200511

89544SENSOR, SKID CONTROL

main89544-20010iNHW20¥13,300200511-200904

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iNHW20¥62,100200608

main89680-47020iNHW20¥74,600200511-200607

sub89680-33010¥62,100

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-47010iNHW20¥900200511

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-47010iNHW20¥1,080200511

89688BRACKET, BRAKE CONTROL POWER SUPPLY, NO.3

main89688-47010iNHW20¥1,470200511

9017906144

main90179-06144¥160

91621J0814

main91621-J0814¥60

91631B0614

main91631-B0614¥110

9165140616

main91651-40616¥60

91651B0616

main91651-B0616¥80

91651B0618

main91651-B0618¥100

9167180610

main91671-80610¥60

22 parts on this diagram · 1 diagram in section
