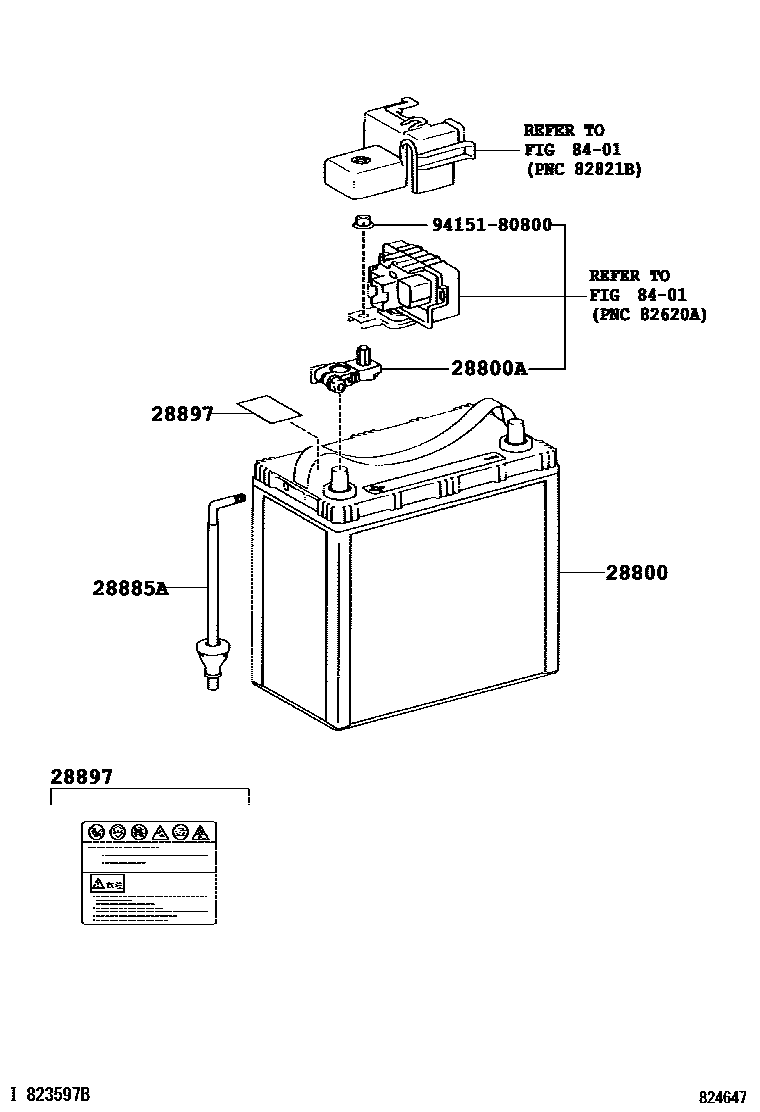

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21170i1NZFXE..NHW20200511

S46B24R

sub28800-21171

28800ATERMINAL, BATTERY POSITIVE

main90982-05060i1NZFXE..NHW20200511

28885HOSE, BATTERY ROOM VENTILATION

main28885-21030i1NZFXE..NHW20200511

28885AHOSE, BATTERY ROOM VENTILATION

main28885-21010i1NZFXE..NHW20200511

28897PLATE, BATTERY CAUTION

main28897-21010i1NZFXE..NHW20200511

8401

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
