SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

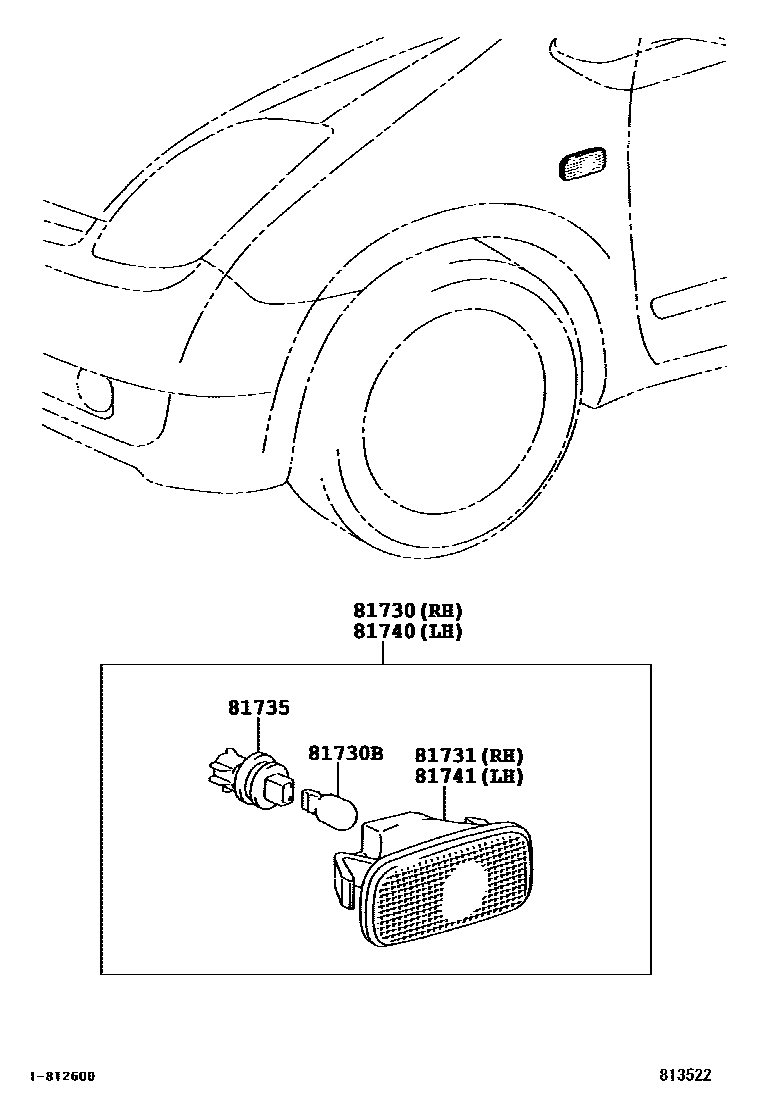

Parts diagram

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-53010i200511-200609

main81730-53011i200610

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2i200511-200609

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-53010i200511-200610

main81731-53011i200611

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001×2i200511

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-53010i200511-200609

main81730-53011i200610

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-53010i200511-200610

main81731-53011i200611

6 parts on this diagram · 1 diagram in section
