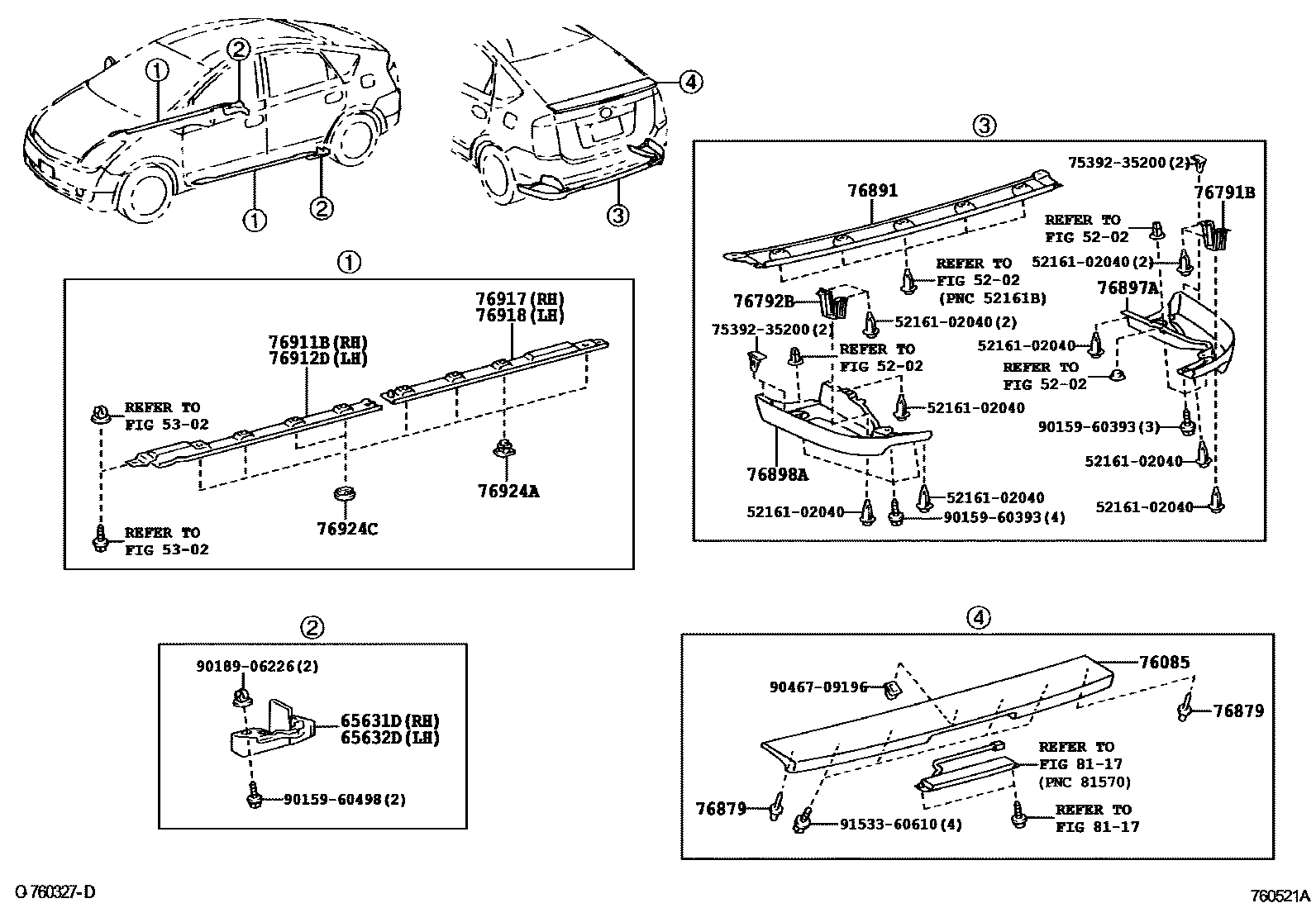

MUDGUARD & SPOILER
5202
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
76791BBRACKET, REAR SPOILER
76792BBRACKET, REAR SPOILER, NO.1 LH
76879CLIP, REAR SPOILER, NO.1
76891SPOILER, REAR NO.1
76897ASPOILER,REAR SIDE RH
76898ASPOILER,REAR SIDE LH
76911BMUDGUARD, SIDE, RH
76912DMUDGUARD, SIDE, LH
76917MUDGUARD, SIDE, REAR RH
76918MUDGUARD, SIDE, REAR LH
76924ARETAINER, SIDE MUDGUARD, NO.2
76924CRETAINER, SIDE MUDGUARD, NO.2
8117
5216102040CUSHION, REAR BUMPER GUARD, NO.1
main52161-02040
7539235200RETAINER, OUTSIDE MOULDING
main75392-35200
9015960393
main90159-60393
9015960498
main90159-60498
9018906226
main90189-06226
9046709196
main90467-09196
9153360610
main91533-60610
25 parts on this diagram · 1 diagram in section
