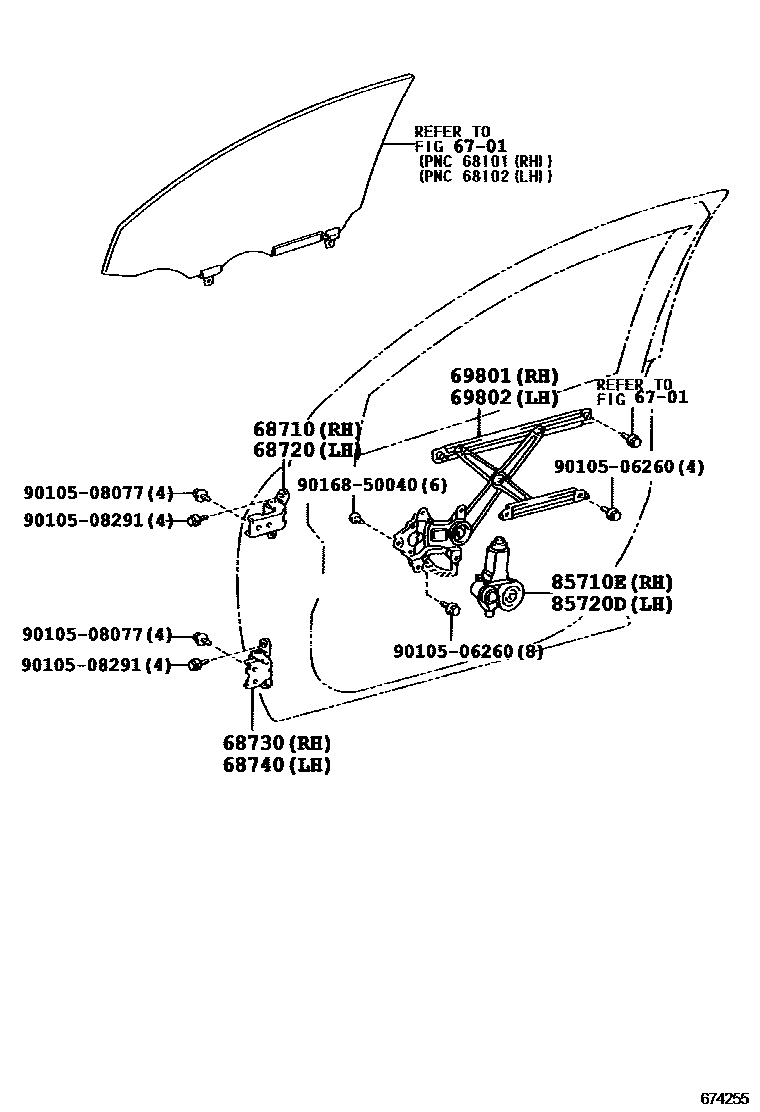

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iNHW20200511-200610

sub68710-12151

main68710-12151iNHW20200611-200904

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iNHW20200511-200610

sub68720-12151

main68720-12151iNHW20200611-200904

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iNHW20200511-200610

sub68730-33021

main68730-33021iNHW20200611-200904

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iNHW20200511-200610

sub68740-33021

main68740-33021iNHW20200611-200904

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52070iNHW20200511

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52070iNHW20200511

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iNHW20200511

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-58010iNHW20200511

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
