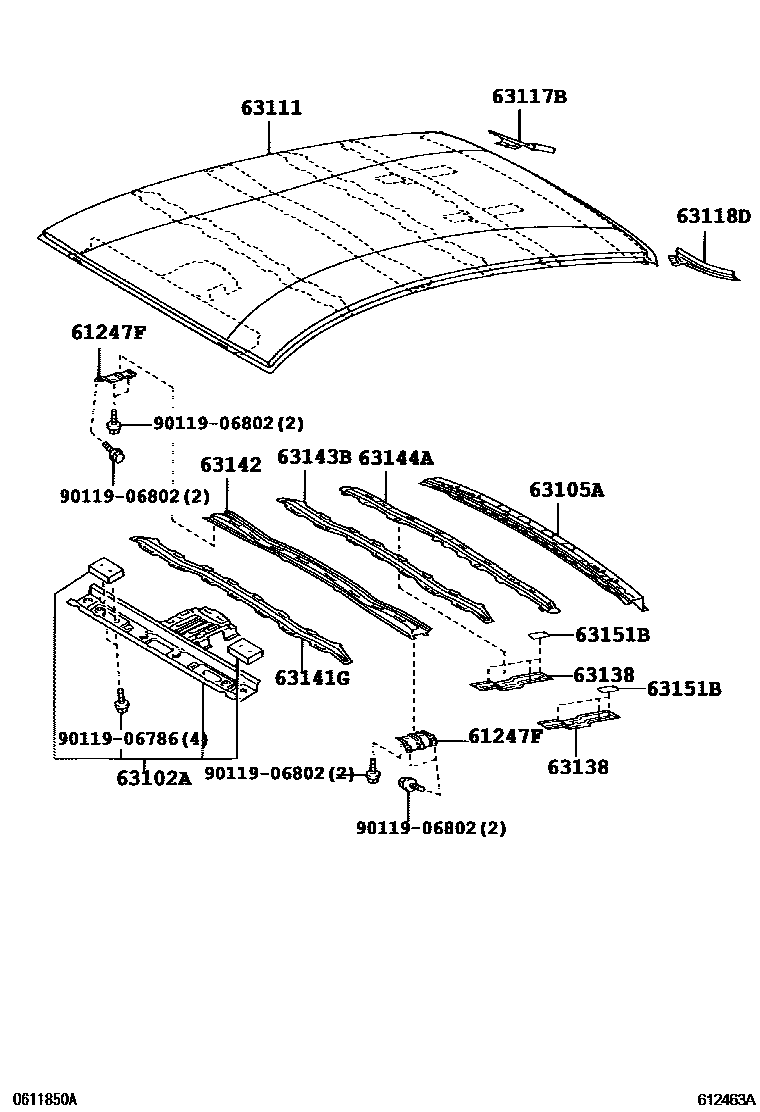

ROOF PANEL & BACK WINDOW GLASS

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-47010iNHW20¥940200511-200904

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47020iNHW20¥7,100200511-200904

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-47010iNHW20¥11,500200511-200904

63111PANEL, ROOF

main63111-47020iNHW20¥46,900200511

63117BPANEL, ROOF, REAR RH

main63117-47010iNHW20¥1,300200511

sub63117-47011¥1,450

63118DPANEL, ROOF, REAR LH

main63118-47010iNHW20¥1,300200511

sub63118-47011¥1,450

63138BRACKET, DOME LAMP, NO.2

main63138-47010iNHW20¥1,070200511

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-47010iNHW20¥2,400200511

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-47021iNHW20¥7,100200511

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-47020iNHW20¥2,440200511

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-47010iNHW20¥2,530200511

63151BSEAL, ROOF PANEL REINFORCEMENT

main63151-47010iNHW20200511

9011906786

main90119-06786¥90

9011906802

main90119-06802¥60

14 parts on this diagram · 1 diagram in section
