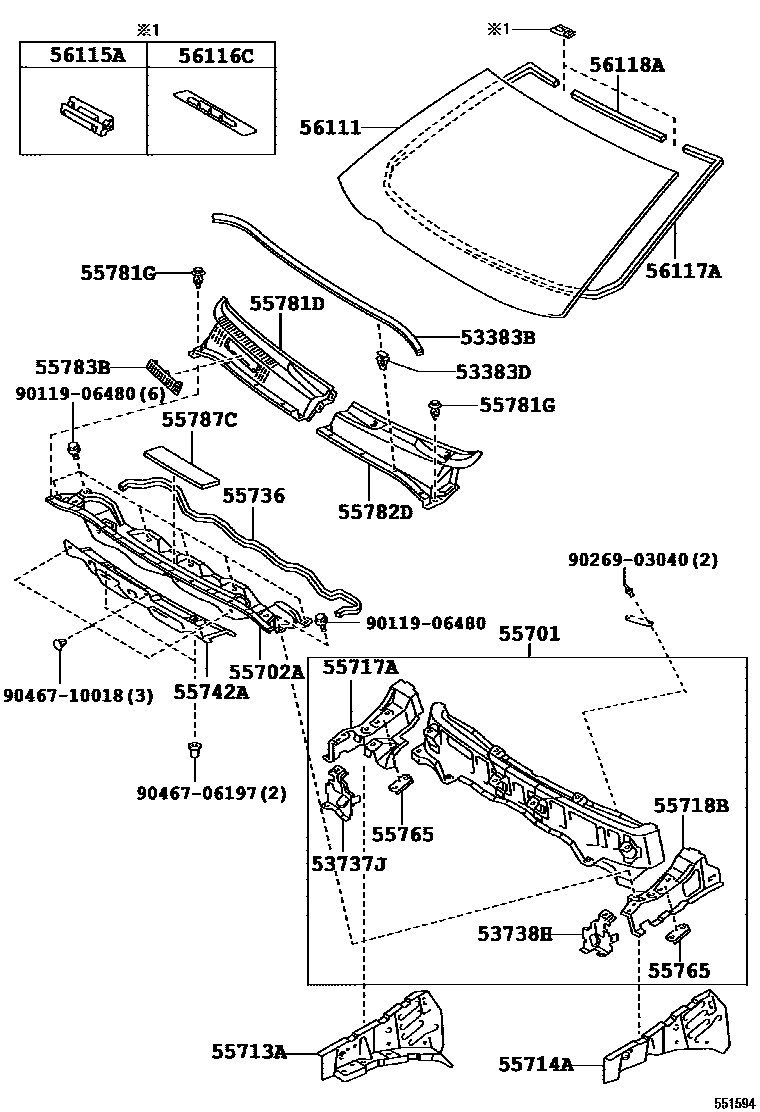

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53737JPLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738HPLATE, FRONT APRON TO COWL SIDE MEMBER, LH
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55736SEAL, WATER GUARD PLATE
55742ASHEET, COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3470
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
9011906480
9026903040
9046706197
9046710018
27 parts on this diagram · 1 diagram in section
