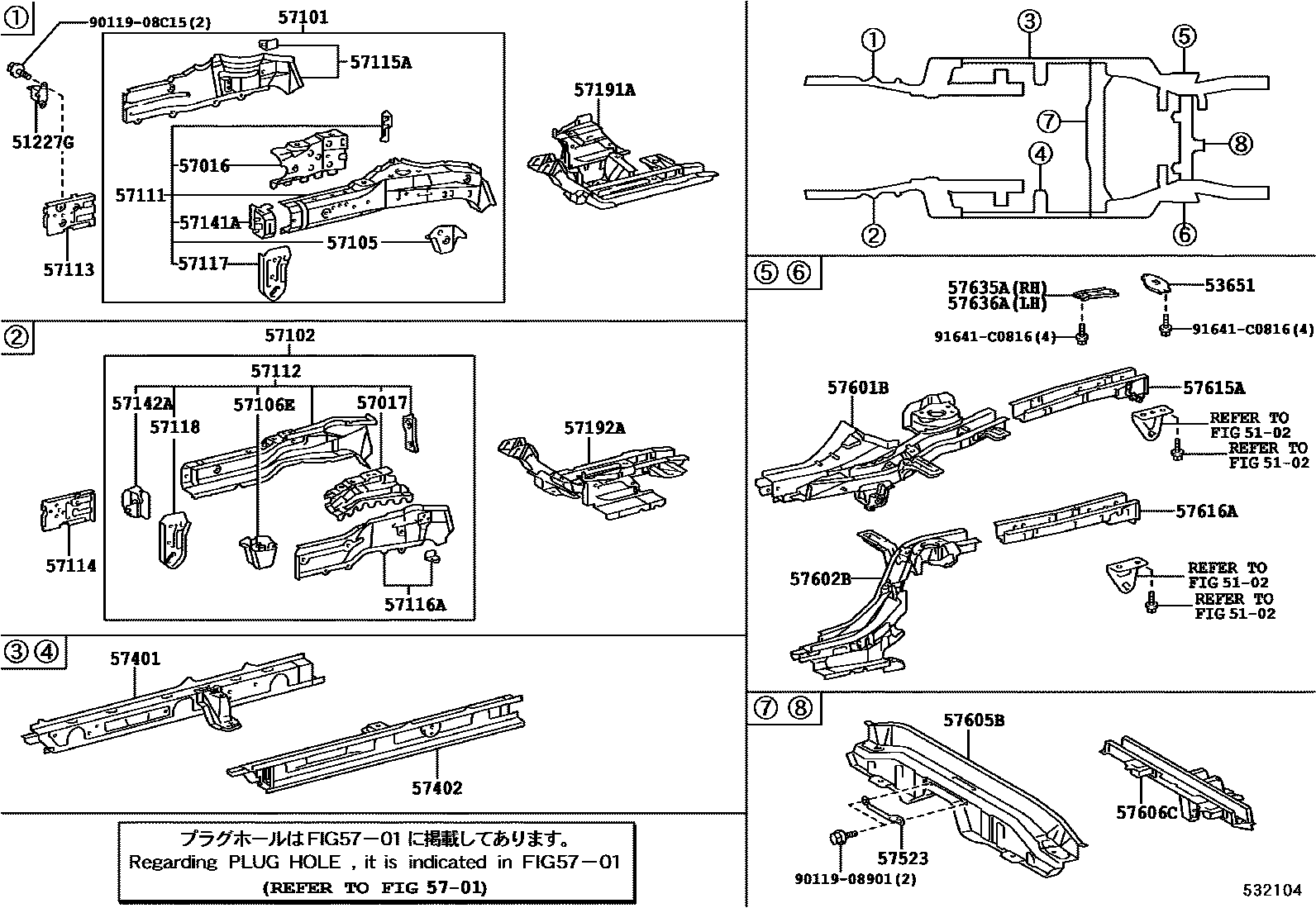

FLOOR SIDE MEMBER

5102

51227GDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-47010iNHW20200511

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-47010iNHW20200511

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-47020iNHW20200511

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-47020iNHW20200511

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-47900iNHW20200511

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-47900iNHW20200511

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12140iNHW20200511

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12130iNHW20200511

57111MEMBER, FRONT SIDE, RH

main57111-47904iNHW20200511

57112MEMBER, FRONT SIDE, LH

main57112-47903iNHW20200511

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-47010iNHW20200511

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-47010iNHW20200511

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47900iNHW20200511

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47900iNHW20200511

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-12130iNHW20200511

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12130iNHW20200511

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-47010iNHW20200511

57142ASUPPORT, FRONT BUMPER ARM, LH

main57014-47020iNHW20200511

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-47901iNHW20200511

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-47900iNHW20200511

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-47040iNHW20200511-200904

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-47060iNHW20200511-200904

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-47010iNHW20200511

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57611-47903iNHW20200511

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57612-47905iNHW20200511

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-47050iNHW20200511

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-47030iNHW20200511

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-47903iNHW20200511

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-47903iNHW20200511

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-63010iNHW20200511

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-63010iNHW20200511

9011908901

main90119-08901

9011908C15

main90119-08C15

91641C0816

main91641-C0816

36 parts on this diagram · 1 diagram in section
