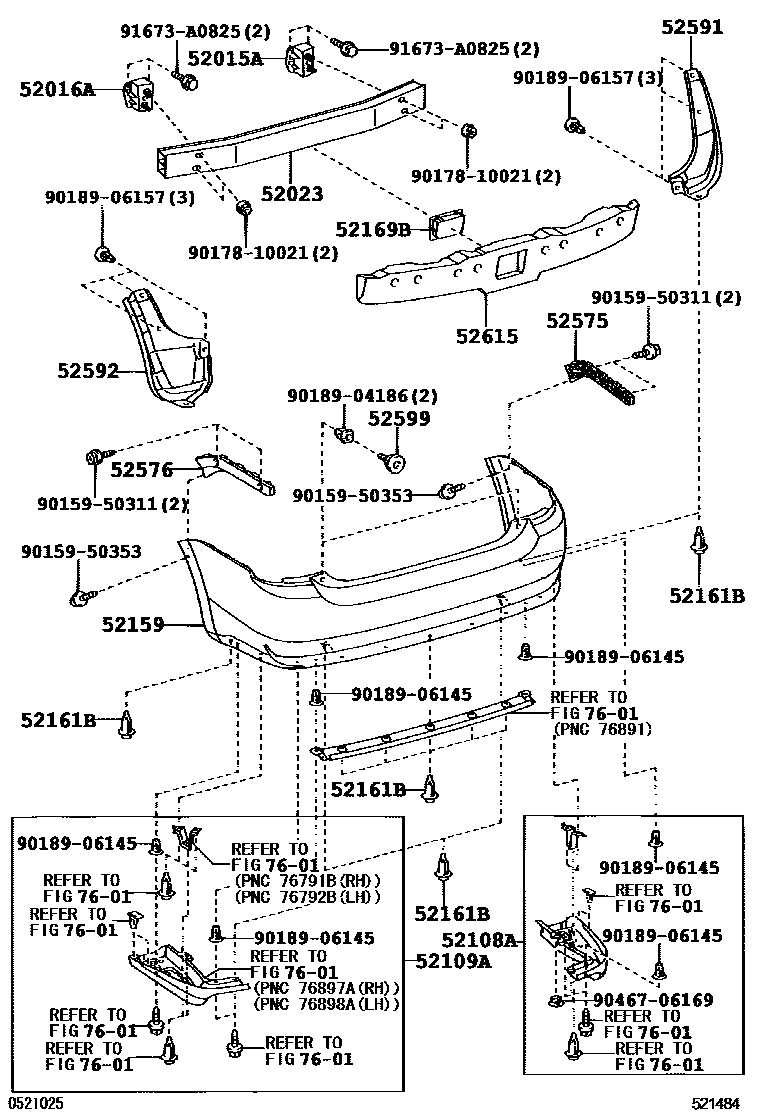

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47021iNHW20¥3,500200511

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47011iNHW20¥3,500200511

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-47050iNHW20¥45,100200511

52108ABUMPER SUB-ASSY, REAR SIDE, RH

main52108-47010iNHW20¥19,800200511

52109ABUMPER SUB-ASSY, REAR SIDE, LH

main52109-47010iNHW20¥19,800200511

52159COVER, REAR BUMPER

main52159-47903iNHW20¥44,600200511-200904

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iNHW20200701

main52161-16010iNHW20¥120200511-200701

sub52161-0K040¥120

52169BBRACKET, REAR BUMPER, CENTER

main52169-47010iNHW20¥3,480200511

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47011iNHW20¥3,470200511

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47011iNHW20¥3,470200511

52591SEAL, REAR BUMPER SIDE, RH

main52591-47010iNHW20¥1,790200511

52592SEAL, REAR BUMPER SIDE, LH

main52592-47010iNHW20¥2,210200511

52599STOPPER, REAR BUMPER, UPPER

main52599-68020iNHW20¥230200511

52615ABSORBER, REAR BUMPER ENERGY

main52615-47020iNHW20¥9,600200511

7601

9015950311

main90159-50311¥70

9015950353

main90159-50353¥60

9017810021

main90178-10021¥100

9018904186

main90189-04186¥90

9018906145

main90189-06145¥80

9018906157

main90189-06157¥80

9046706169

main90467-06169¥80

91673A0825

main91673-A0825¥100

23 parts on this diagram · 1 diagram in section
