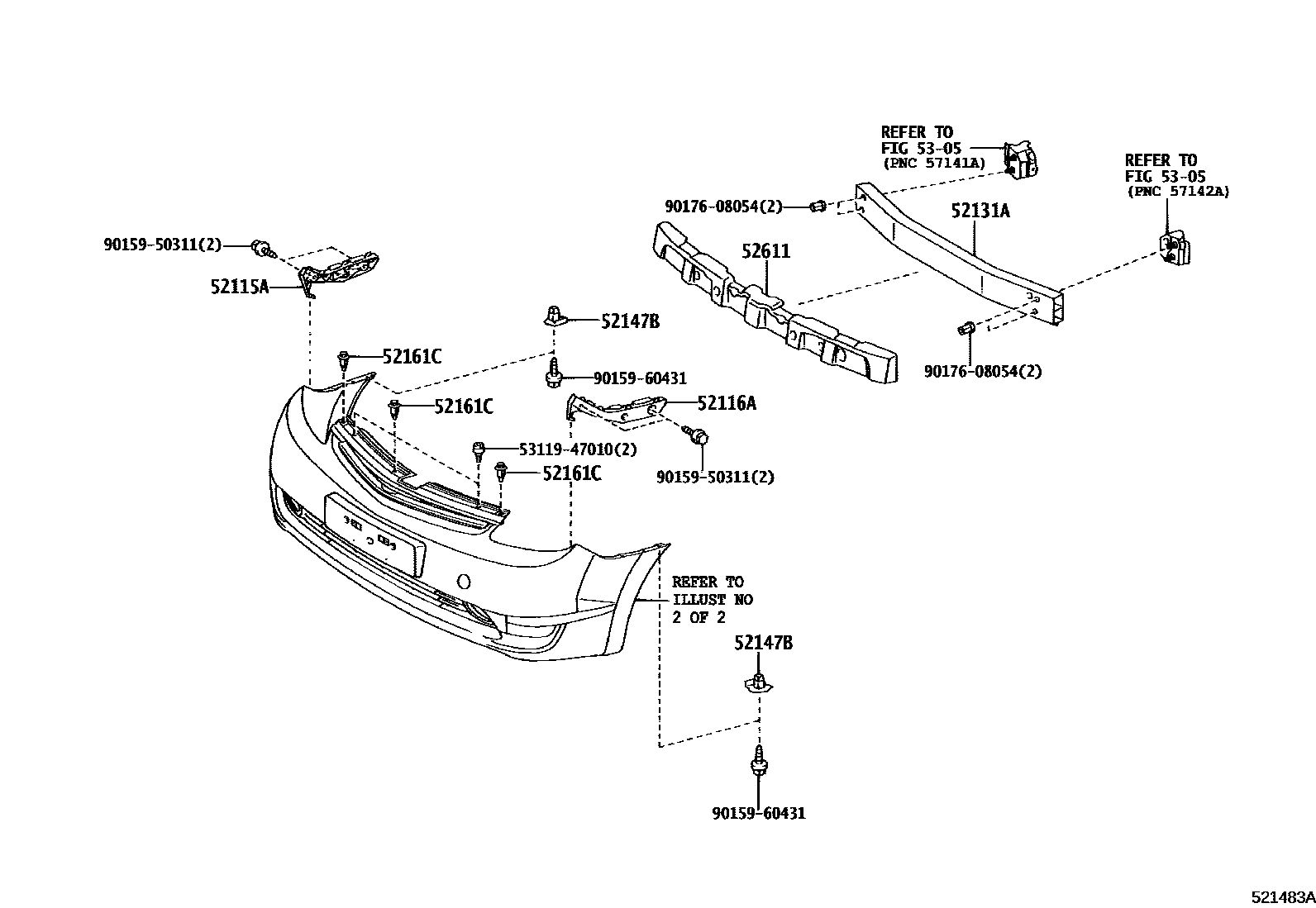

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47010iNHW20200511

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47010iNHW20200511

52131AREINFORCEMENT, FRONT BUMPER

main52131-47060iNHW20200511-200904

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-21010iNHW20200511

52161CPIECE, FRONT BUMPER

main52161-02040iNHW20200701

main52161-16010iNHW20200511-200612

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47030iNHW20200511

5305

5311947010SUPPORT, RADIATOR GRILLE, SIDE

main53119-47010

9015950311

main90159-50311

9015960431

main90159-60431

9017608054

main90176-08054

11 parts on this diagram · 2 diagrams in section
