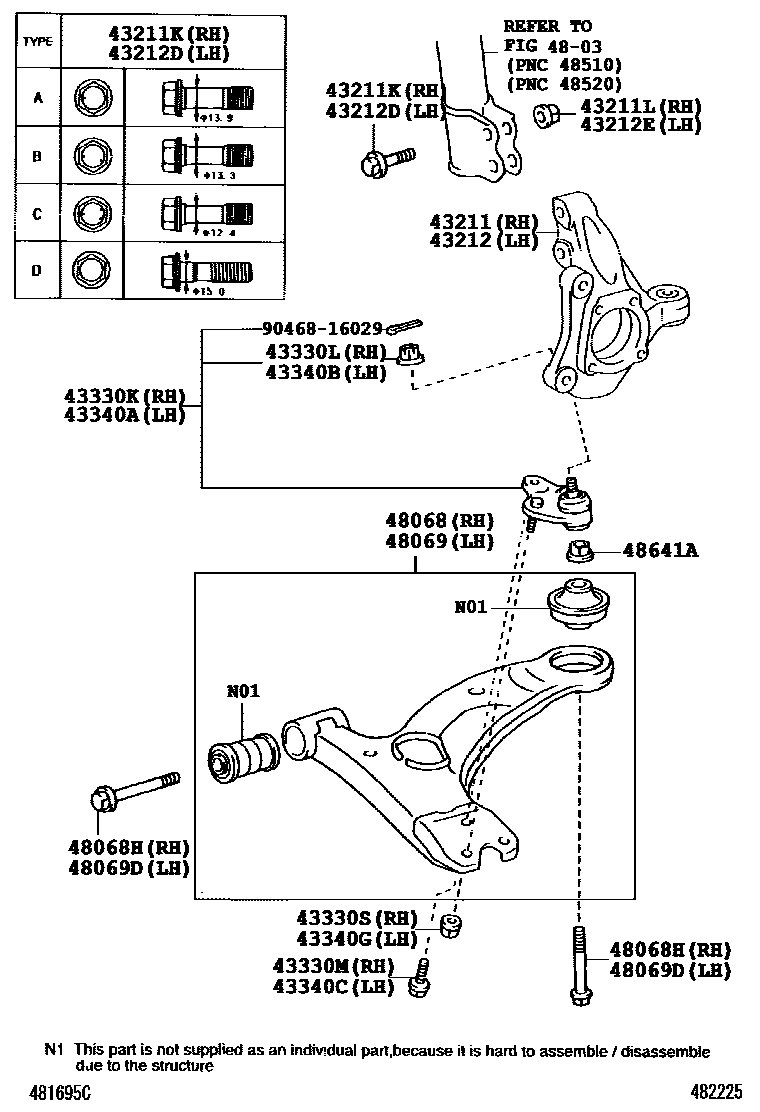

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-47010iNHW20200511

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15015iNHW20200511

OD=13.9,TYPE A:REFER ILLUST.

main90105-15016iNHW20200511

OD=13.3,TYPE B:REFER ILLUST.

main90105-15017iNHW20200511

OD=12.4,TYPE C:REFER ILLUST.

main90105-15018iNHW20200511

OD=15.0,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004iNHW20200511

43212KNUCKLE, STEERING, LH

main43202-47010iNHW20200511

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15015iNHW20200511

OD=13.9,TYPE A:REFER ILLUST.

main90105-15016iNHW20200511

OD=13.3,TYPE B:REFER ILLUST.

main90105-15017iNHW20200511

OD=12.4,TYPE C:REFER ILLUST.

main90105-15018iNHW20200511

OD=15.0,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004iNHW20200511

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49055iNHW20200511

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14013iNHW20200511

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12336iNHW20200511

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12015iNHW20200511

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49055iNHW20200511

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14013iNHW20200511

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12336iNHW20200511

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12015iNHW20200511

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-47040iNHW20200511

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14108iNHW20200511

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-47040iNHW20200511

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14108iNHW20200511

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-14011iNHW20200511

9046816029

main90468-16029

21 parts on this diagram · 1 diagram in section
