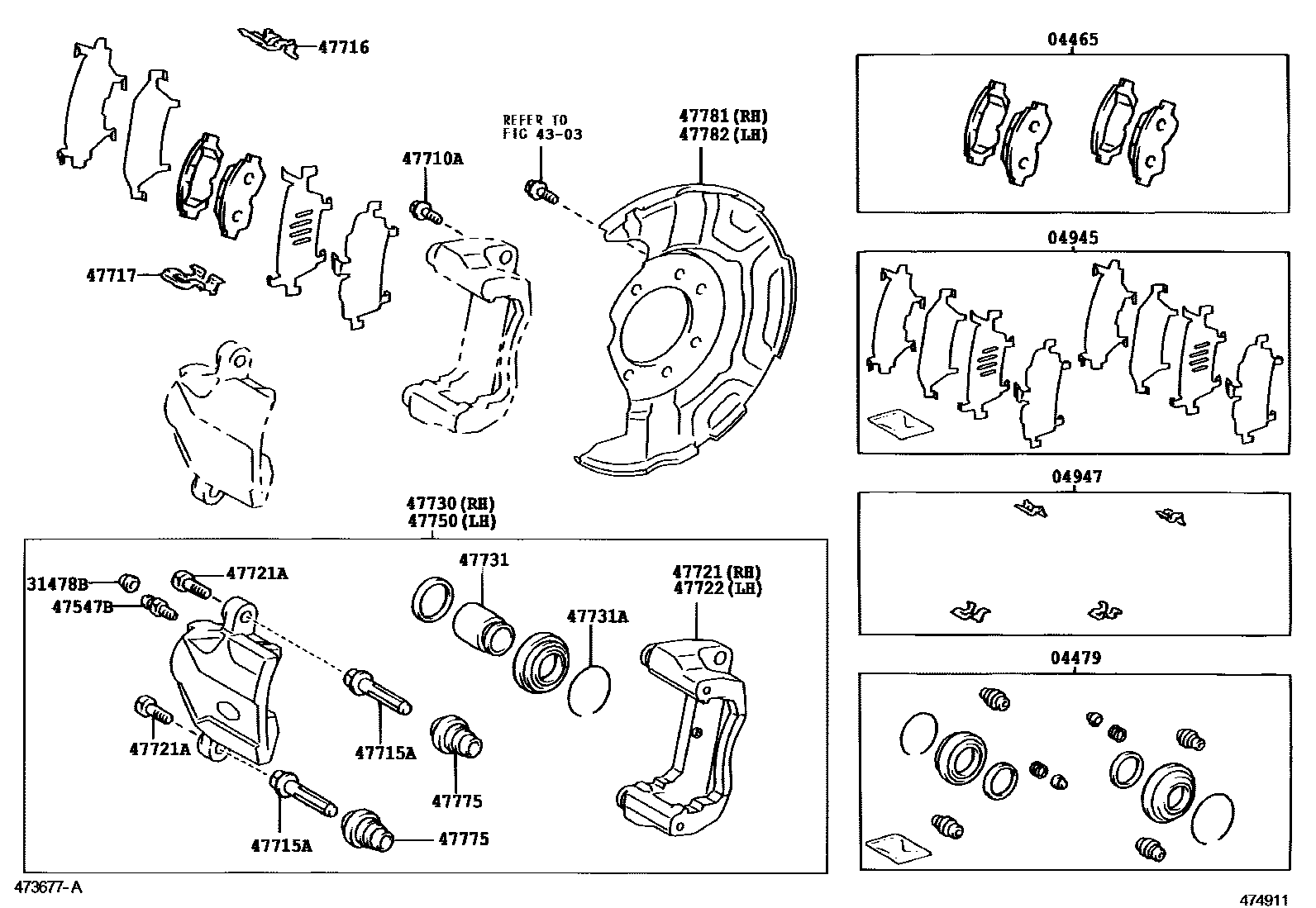

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W080iNHW20200511

TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-49010iNHW20200511

sub04478-47070

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNHW20200511

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47010iNHW20200511

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-50020iNHW20200511

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNHW20200511

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12347iNHW20200511-200904

*12-1.25PX40.5-20.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-47010iNHW20200511

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070iNHW20200511

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030iNHW20200511

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12220iNHW20200511-200609

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNHW20200511

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12040iNHW20200511-200609

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-47020iNHW20200511-200609

sub47730-47050

main47730-47050iNHW20200610

47731PISTON, FRONT DISC BRAKE

main47731-47010iNHW20200511

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iNHW20200511

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-47020iNHW20200511-200609

sub47750-47050

main47750-47050iNHW20200610

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010iNHW20200511

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-47020iNHW20200511-200601

sub47781-47021

main47781-47021iNHW20200602-200904

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-47020iNHW20200511-200601

sub47781-47021

main47781-47021iNHW20200602-200904

21 parts on this diagram · 2 diagrams in section
