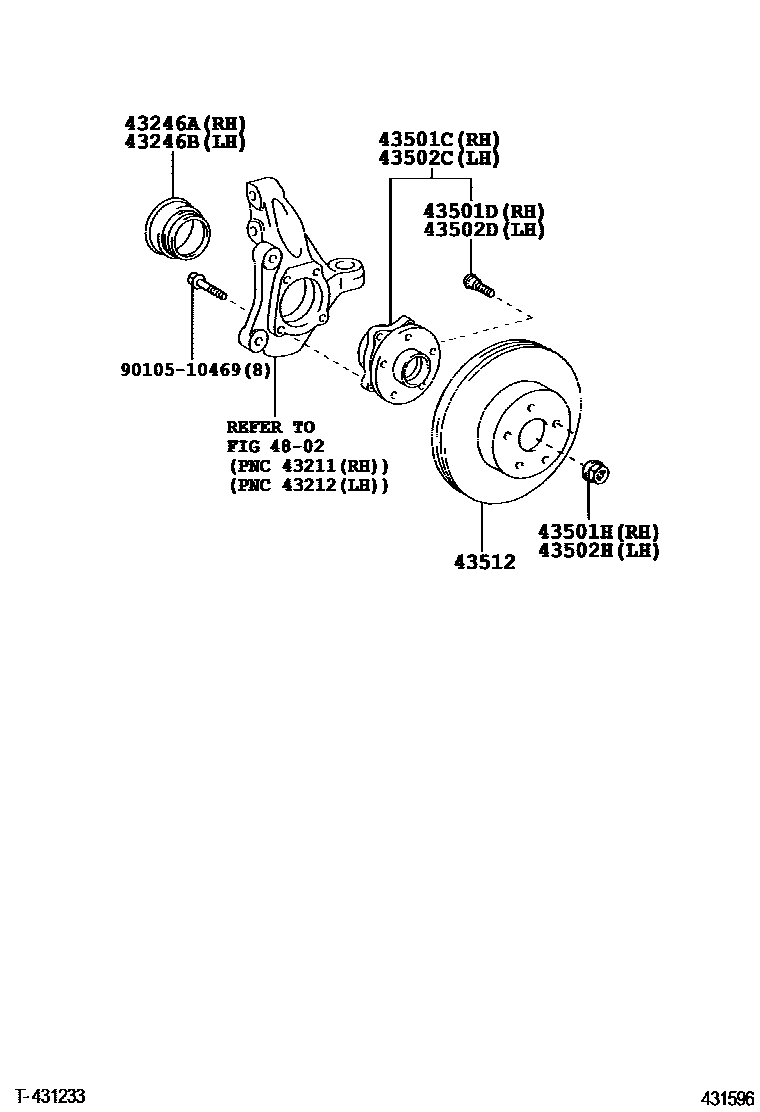

FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-47010iNHW20200511

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-47010iNHW20200511

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43510-47010iNHW20200511-200711

sub43510-47011

main43510-47011iNHW20200712

sub43510-47012

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNHW20200511-200711

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNHW20200511

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43510-47010iNHW20200511-200711

sub43510-47011

main43510-47011iNHW20200712

sub43510-47012

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNHW20200511-200711

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNHW20200511

43512DISC, FRONT

main43512-47030iNHW20200511-200904

4802

9010510469

main90105-10469

11 parts on this diagram · 1 diagram in section
