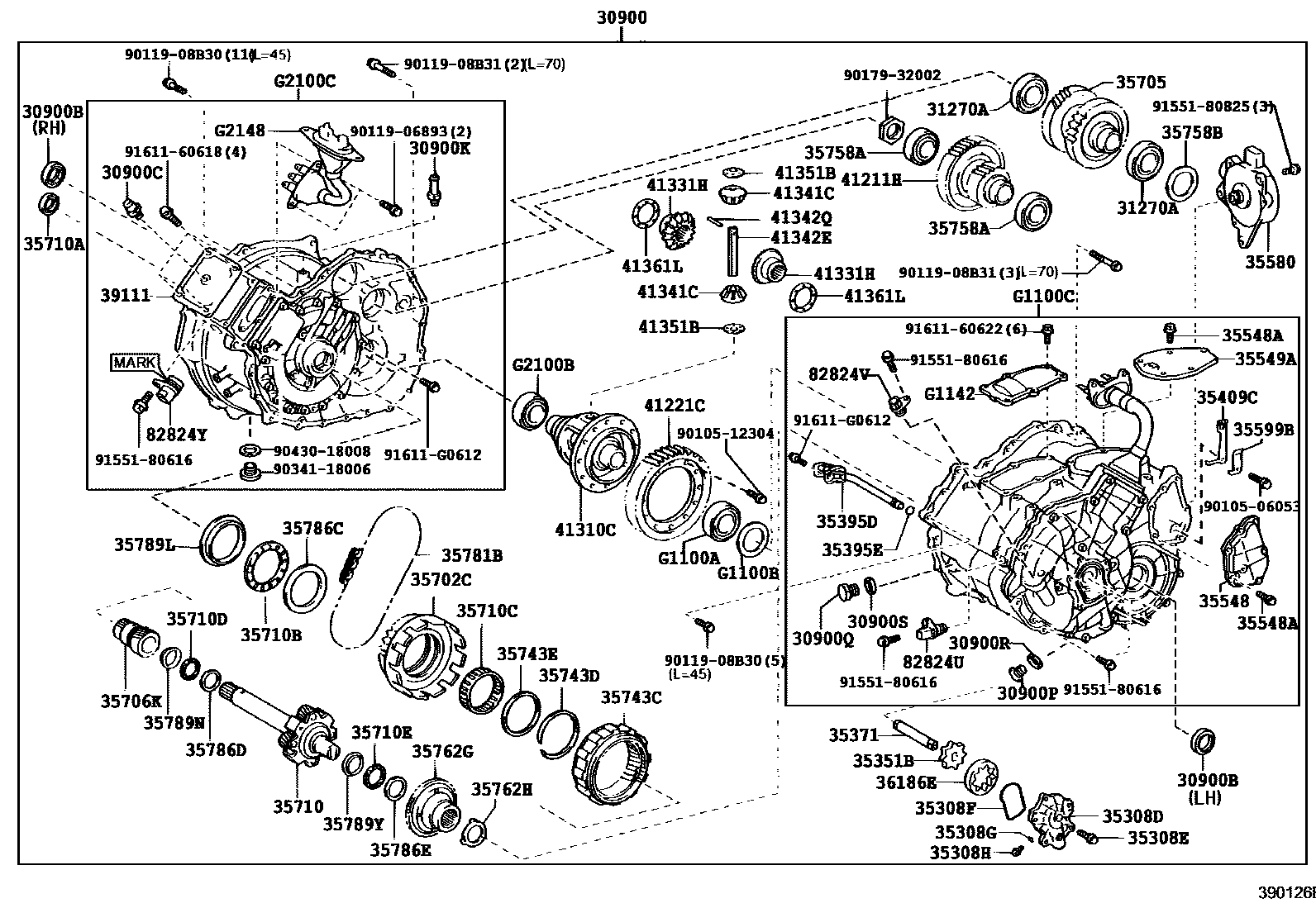

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900BSEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY)
30900CPLUG, BREATHER(FOR PARKING COVER)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
31270ABEARING, RADIAL BALL(FOR CRANKSHAFT)
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308EBOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER)
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35371SHAFT, OIL PUMP DRIVE
35395DSTRAINER, TRANSMISSION OIL
35395ERING, O(FOR TRANSAXLE OIL STRAINER)
35409CSPRING SUB-ASSY, MANUAL DETENT
35548COVER, PARKING
35548ABOLT, W/WASHER (FOR PARKING COVE & CASE)
35549ACOVER, PARKING SHAFT
35580ACTUATOR ASSY, SHIFT CONTROL
35599BCOVER, MANUAL DETENT SPRING
35702CSPROCKET SUB-ASSY, TRANSMISSION DRIVE
35705GEAR SUB-ASSY, COUNTER DRIVEN
35706KGEAR SUB-ASSY, PLANETARY SUN
35710SHAFT ASSY, INPUT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
35710BBEARING, THRUST NEEDLE ROLLER, NO.1(FOR DRIVE SPROCKET)
35710CBEARING, NEEDLE ROLLER, NO.2(FOR DRIVE SPROCKET)
35710DBEARING, THRUST NEEDLE ROLLER, NO.1(FOR INPUT SHAFT)
35710EBEARING, THRUST NEEDLE ROLLER, NO.2(FOR INPUT SHAFT)
35743CGEAR, PLANETARY RING
35743DRING, SNAP(FOR PLANETARY RING GEAR)
35743ESPACER(FOR PLANETARY RING GEAR)
35758ABEARING, RADIAL BALL(FOR CONTER DRIVE GEAR)
35758BSHIM(FOR COUNTER DRIVE GEAR)
T=2.20,MARK A
T=2.25,MARK B
T=2.30 MARK C
T=2.35 MARK D
T=2.40 MARK E
T=2.45 MARK F
T=2.50 MARK G
T=2.55 MARK H
T=2.60 MARK J
T=2.65 MARK K
T=2.70 MARK L
T=2.75 MARK M
T=2.80 MARK N
35762GFLANGE, PLANETARY RING GEAR
35762HSHIM(FOR PLANETARY RING GEAR FLANGE)
T=1.00,MARK 1
T=1.20,MARK 2
T=1.40,MARK 3
T=1.60,MARK 4
T=1.80,MARK 5
T=2.00,MARK 6
T=2.20,MARK 7
T=2.40,MARK 8
T=2.60,MARK 9
T=2.80,MARK 10
T=3.00,MARK 11
T=3.20,MARK 12
35781BCHAIN, TRANSMISSION DRIVE
35786CRACE, THRUST BEARING, NO.1
35786DRACE, THRUST BEARING, NO.1(FOR INPUT SHAFT)
35786ERACE, THRUST BEARING, NO.2(FOR INPUT SHAFT)
35789LRACE, THRUST BEARING, NO.2
35789NRACE, THRUST BEARING, NO.2(FOR INPUT SHAFT)
35789YRACE, THRUST BEARING NO.3(FOR INPUT SHAFT)
36186EROTOR, OIL PUMP DRIVEN
39111COVER, POWER CABLE
41211HPINION, DIFFERENTIAL DRIVE
41221CGEAR, DIFFERENTIAL RING
41310CCASE ASSY, DIFFERENTIAL
41331HGEAR, DIFFERENTIAL SIDE
41341CPINION, DIFFERENTIAL
41342ESHAFT, DIFFERENTIAL PINION
sub41342-52060
41342QPIN, STRAIGHT(FOR DIFFERENTIAL PINION SHAFT)
41351BWASHER, DIFFERENTIAL PINION THRUST
41361LWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00
T=1.10
T=1.20
T=0.95
T=1.05
T=1.15
82824UCONNECTOR, WIRING HARNESS(FOR MOTOR STATOR)
82824VCONNECTOR, WIRING HARNESS(FOR MOTOR REVOLUTION SENSOR)
82824YCONNECTOR, WIRING HARNESS(FOR GENERATOR)
MARK=82824-47100
MARK=82824-47250
G1100ABEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE LH)
G1100BSHIM(FOR DIFFERENTIAL CASE LH)
T=2.40,MARK 11
T=1.80,MARK 1
T=1.83,MARK 2
T=1.86,MARK 3
T=1.89,MARK 4
T=2.34,MARK 19
T=2.37,MARK 20
T=2.43,MARK 22
T=2.63,MARK 23
T=1.92,MARK 50
T=1.94,MARK 51
T=1.96,MARK 52
T=1.98,MARK 53
T=2.00,MARK 54
T=2.02,MARK 55
T=2.04,MARK 56
T=2.06,MARK 57
T=2.08,MARK 58
T=2.10,MARK 59
T=2.12,MARK 60
T=2.14,MARK 61
T=2.16,MARK 62
T=2.18,MARK 63
T=2.20,MARK 64
T=2.22,MARK 65
T=2.24,MARK 66
T=2.26,MARK 67
T=2.28,MARK 68
T=2.30,MARK 69
T=2.32,MARK 70
G1100CMOTOR ASSY, HYBRID VEHICLE
G1142COVER, MOTOR WATERJACET
G2100BBEARING, TAPERED ROLLER(FOR DIFFERENTIAL CASE RH)
G2100CGENERATOR ASSY, HYBRID VEHICLE
G2148CABLE, GENERATOR
9010506053
main90105-06053
9010512304
main90105-12304
9011906893
main90119-06893
9011908B30
main90119-08B30
9011908B31
main90119-08B31
9017932002
main90179-32002
9034118006
main90341-18006
9043018008
main90430-18008
9155180616
main91551-80616
9155180825
main91551-80825
9161160618
main91611-60618
9161160622
main91611-60622
91611G0612
main91611-G0612
82 parts on this diagram · 2 diagrams in section
