HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

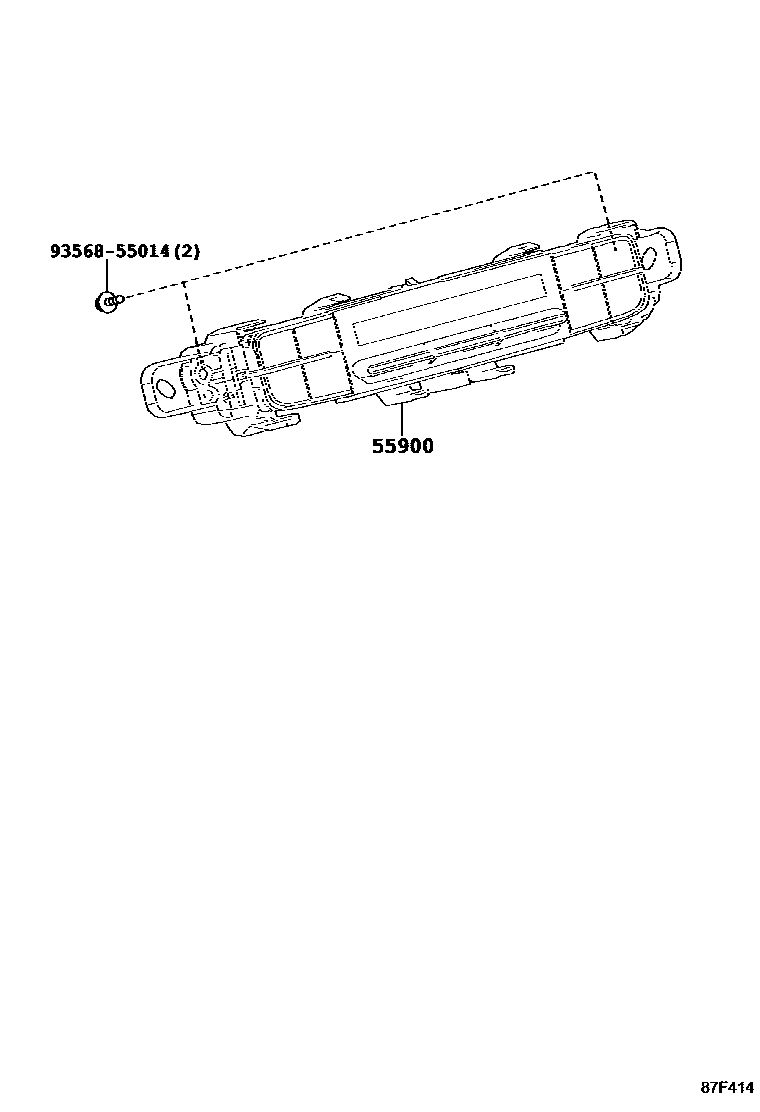

55900CONTROL ASSY, AIR CONDITIONER

main55900-47190iZVW50..GCC201511-201609

sub55900-47191

main55900-47191iZVW50..GCC201610-202006

main55900-47250iZVW50..ARL201511-201609

sub55900-47251

main55900-47251iZVW50..ARL201610-201812

9356855014

main93568-55014

2 parts on this diagram · 5 diagrams in section
