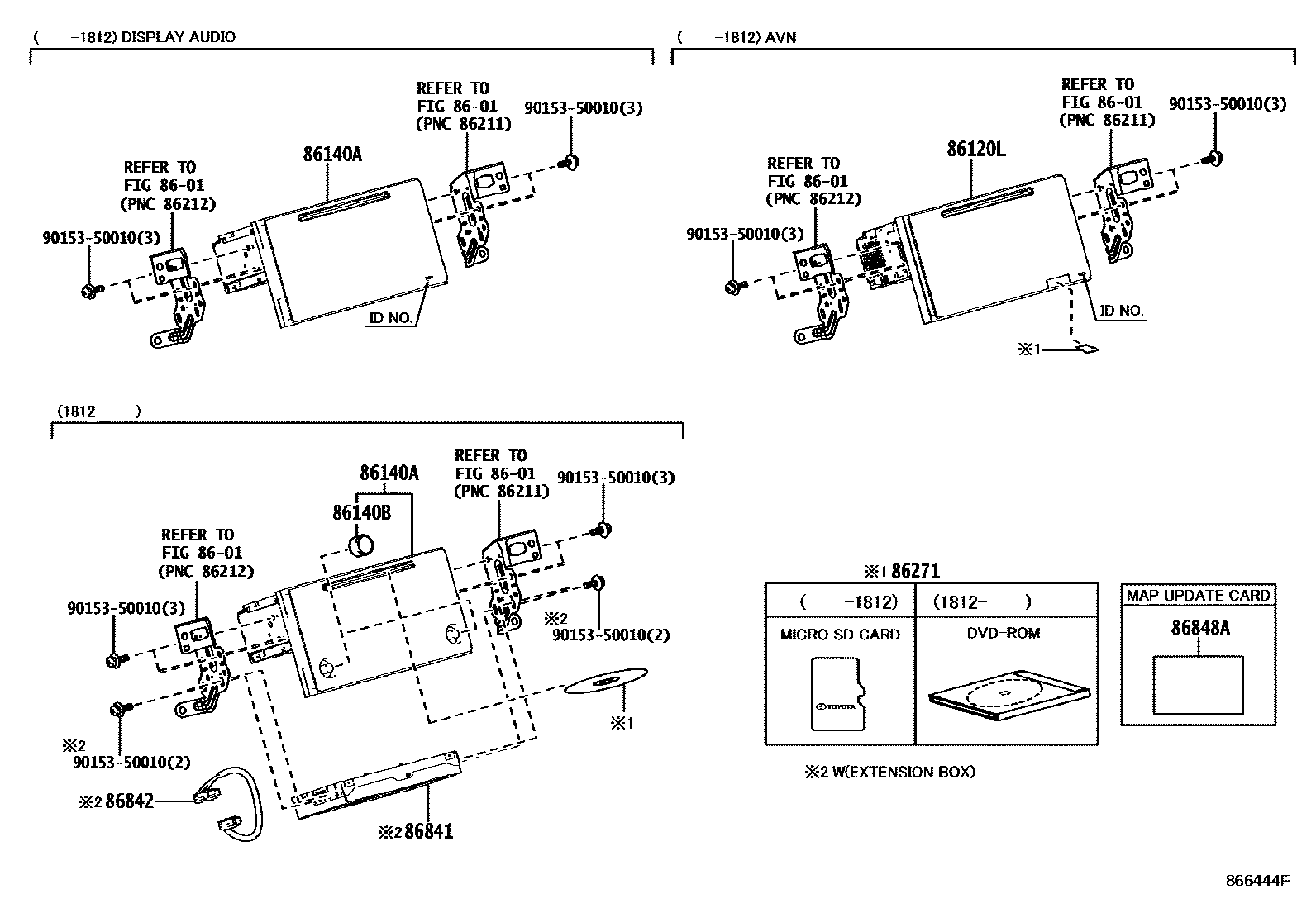

NAVIGATION & FRONT MONITOR DISPLAY

0001 1RECEIVER 0002 1ANTENNA CORD & MICROPHONE 0003 1ANTENNA CORD & MICROPHONE

8601

86120LRECEIVER ASSY, NAVIGATION

main86804-47350iZVW50..ARL201511-201812

FUJITSU TEN,ID100396,AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-47260iZVW50..ARL201511-201812

FUJITSU TEN,ID100395

main86140-47830iZVW50202007-202106

DENSO TEN

main86140-47831iZVW50202107

DENSO TEN

main86140-47510supersedes 86140-47500iZVW50..ARL201812-202007

PIONEER,AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86140-47840iZVW50202007

PIONEER,AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

86271DISC, DISC PLAYER

main86807-11033supersedes 86807-11032iZVW50..GCC201908-202006

sub86807-11034

main86271-0E172iZVW50..ARL201511-201609

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

main86271-0E173iZVW50..ARL201609-201710

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

main86271-0E174iZVW50..ARL201710-201810

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

main86271-0E175iZVW50..ARL201810-201812

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

sub86271-0E176

main86807-11041iZVW50..ARL201812-201909

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86807-11042iZVW50..ARL201910-202009

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86807-11043iZVW50202010-202109

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86807-11044iZVW50202110-202208

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86807-11045iZVW50202209

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

sub86807-11046

86841COMPUTER, NAVIGATION

main86840-26141supersedes 86840-26140iZVW50..GCC201908-202006

sub86840-26142

main86840-12021iZVW50..ARL201812-201909

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86840-12022iZVW50..ARL201910-202007

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86840-K0050iZVW50202007-202009

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86840-K0051iZVW50202010-202109

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86840-K0052iZVW50202110-202208

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

main86840-K0053iZVW50202209

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

sub86840-K0054

86842WIRE, NAVIGATION, NO.1

main86842-33150

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-33040iZVW50..ARL201812

AUDIO-AUSTRALIA SPEC & *DA & *BT & USB & JBL

9015350010

main90153-50010

9 parts on this diagram · 3 diagrams in section
