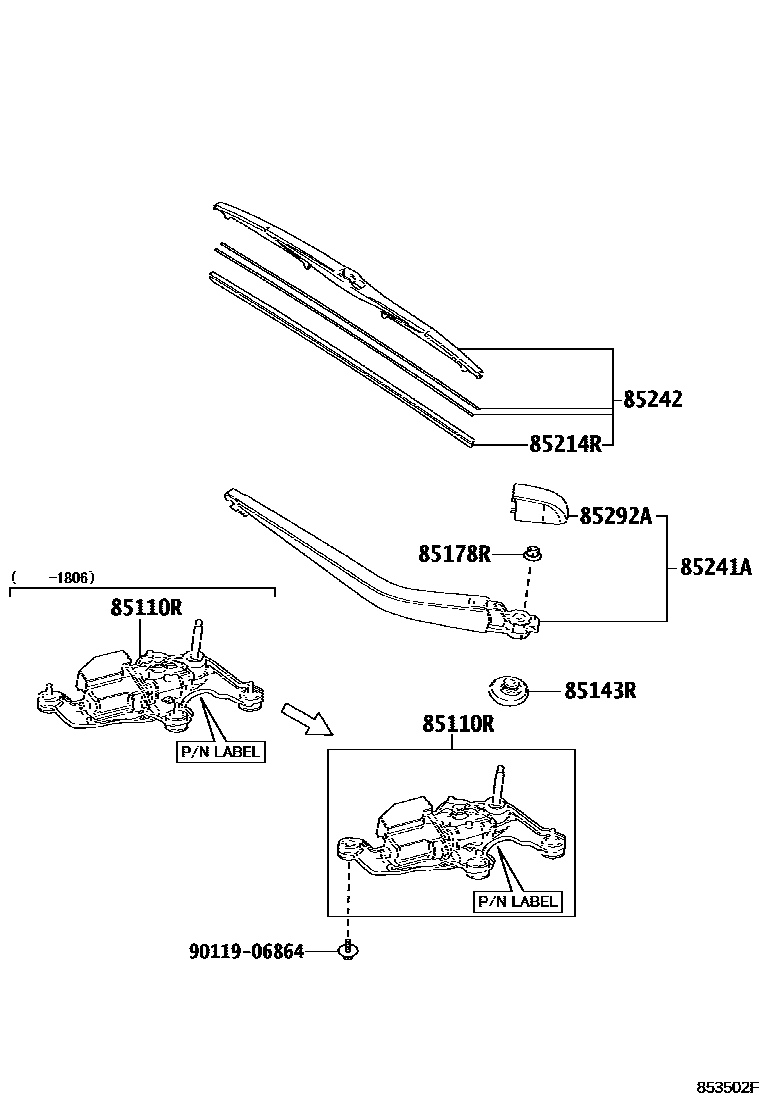

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-47030iZVW50201511-201605

main85130-47031iZVW50201605-201806

P/N LABEL=8513047031

main85130-47032iZVW50201806-201812

P/N LABEL=8513047032

85143RGROMMET, REAR WIPER MOTOR

main85143-47020iZVW50201511-201812

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZVW50201511-201812

85214RRUBBER, REAR WIPER

main85214-47010iZVW50201511-201812

85241AARM, REAR WIPER

main85241-47060iZVW50201511-201805

main85241-47061iZVW50201806-201812

85242BLADE, RR WIPER

main85242-47070iZVW50201511-201602

main85242-47071iZVW50201603-201806

main85242-47072iZVW50201806-201812

85292ACAP, REAR WIPER ARM HEAD

main85292-47060iZVW50201511-201812

9011906864

main90119-06864

8 parts on this diagram · 1 diagram in section
