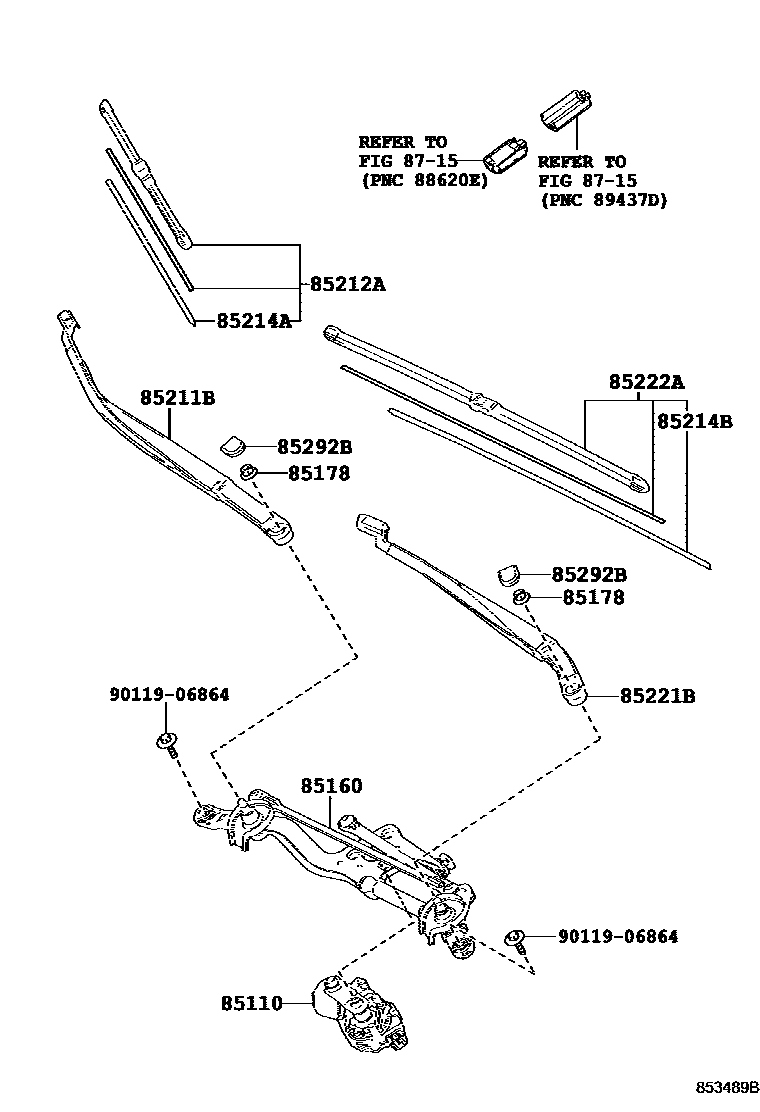

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
TYPE B:REFER ILLUST.
85212ABLADE, FR WIPER, RH
PNC 85211B=TYPE B
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
TYPE B:REFER ILLUST.
85222ABLADE, FR WIPER, LH
PNC 85221B=TYPE B
85292BCAP, FRONT WIPER ARM HEAD
8715
9011906864
main90119-06864
12 parts on this diagram · 2 diagrams in section
