HEV INVERTER

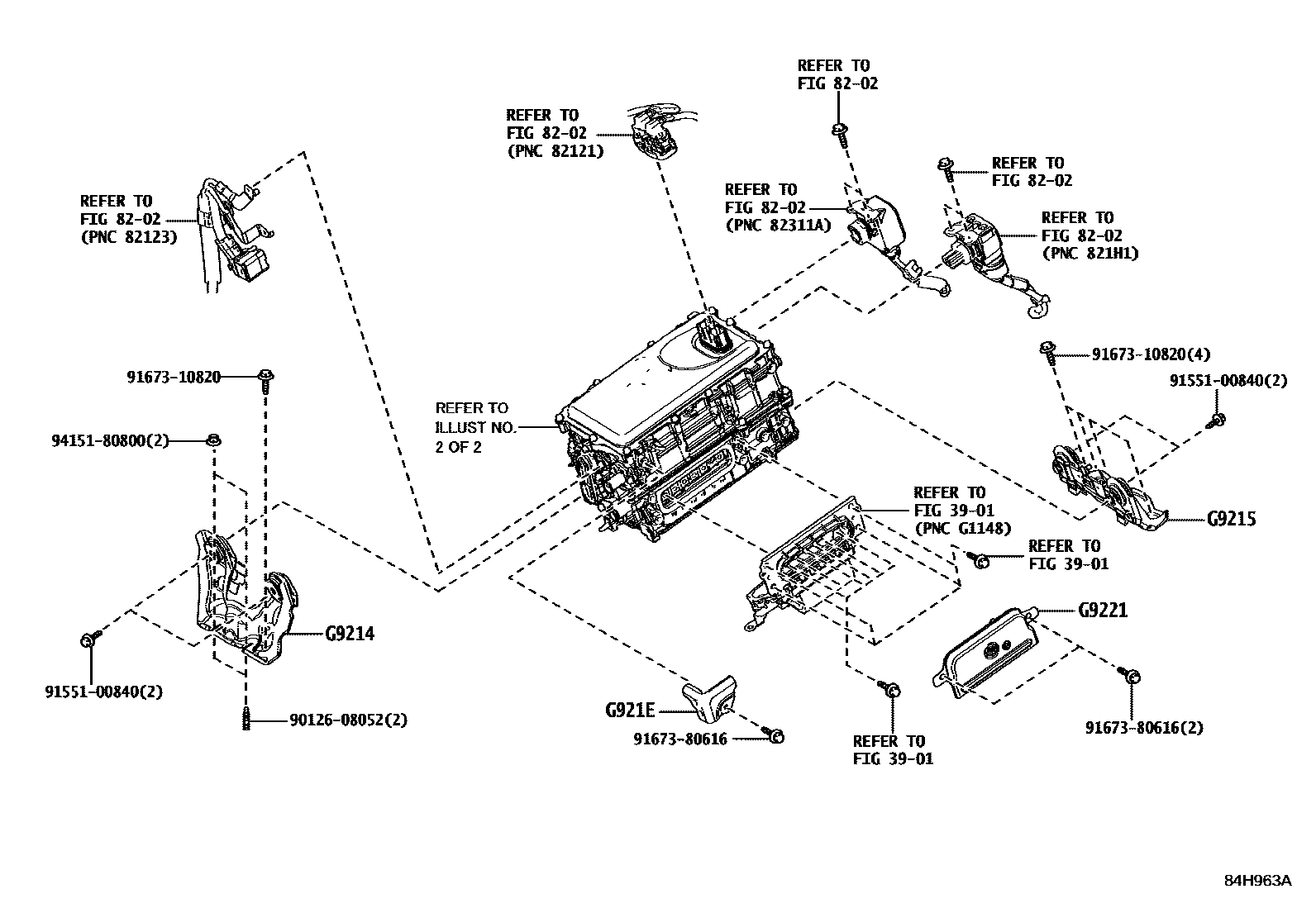

Parts diagram

3901

8202

G9214BRACKET, INVERTER, NO.1

mainG921447070i201511-202006

G9215BRACKET, INVERTER, NO.2

mainG921547050i201511-202006

G921EPROTECTOR, INVERTER

mainG921E47010i201511-202006

G9221COVER, INVERTER

mainG902247050i201511-202006

9012608052

main90126-08052¥80

9155100840

main91551-00840¥80

9167310820

main91673-10820¥80

9167380616

main91673-80616¥60

9415180800

main94151-80800¥80

11 parts on this diagram · 2 diagrams in section
