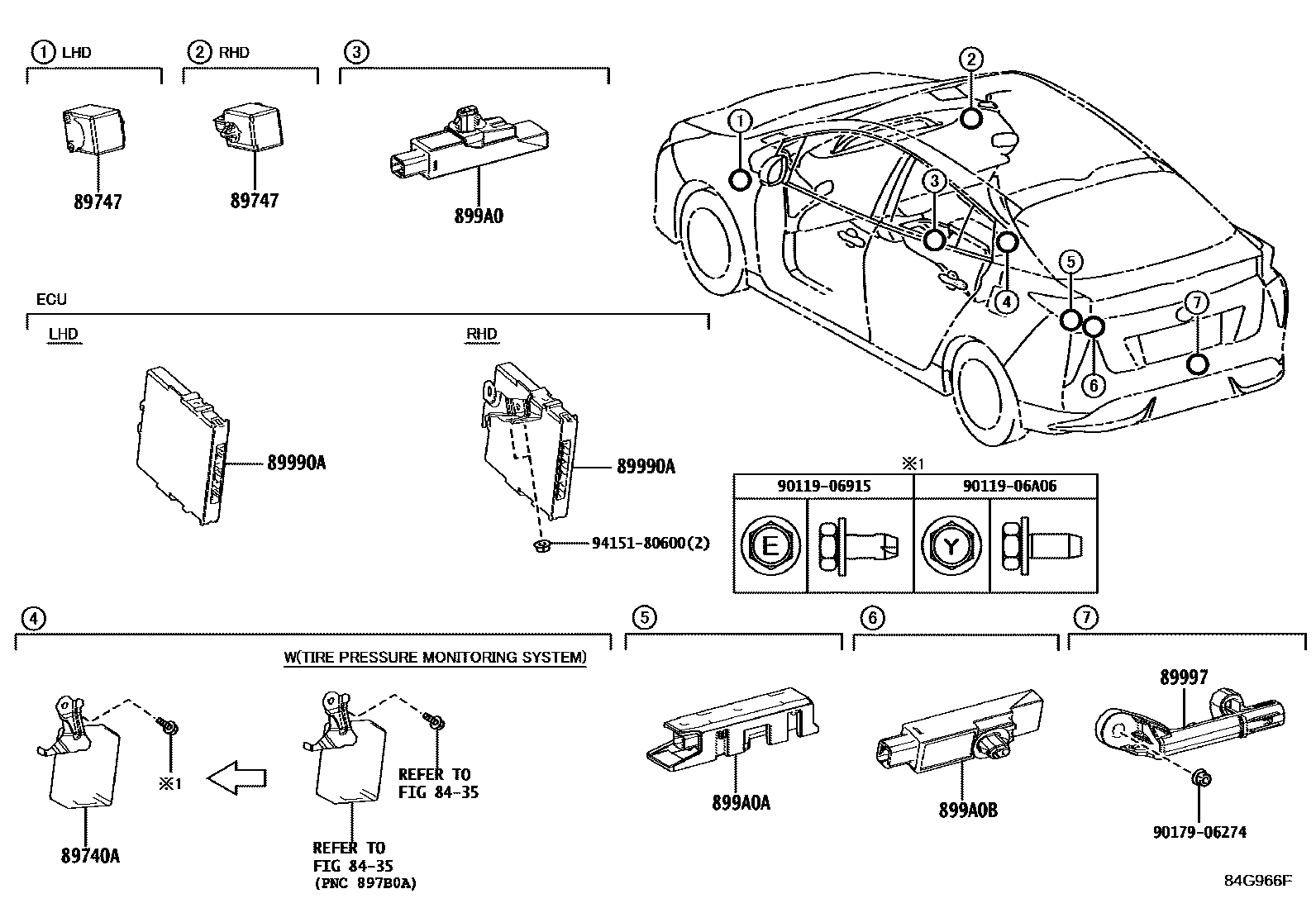

WIRELESS DOOR LOCK

8435

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-47170iZVW50..ARL201511-202007

main89740-47260iZVW50202007

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW50¥2,900201511-201812

89990ACOMPUTER ASSY, SMART KEY

main89990-47030iZVW50..ARL201511-201703

sub89990-47031

main89990-47031iZVW50..ARL201703-201711

sub89990-47032

main89990-47131iZVW50..ARL¥49,000201711-201801

sub89990-47132¥49,000

main89990-47132iZVW50..ARL¥49,000201802-202007

main89990-47210iZVW50..GCC201511-201710

sub89990-47211

main89990-47211iZVW50..GCC201711-201812

sub89990-47213

main89990-47212iZVW50..GCC201812-201908

main89990-47350iZVW50¥40,800202007-202106

main89990-47390iZVW50..GCC201908-202006

sub89990-47190

main89990-47420iZVW50¥40,800202106-202208

main89990-47421iZVW50¥40,800202209

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZVW50..ARL¥1,800201711-201812

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iZVW50¥1,410201511-201812

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47050iZVW50¥1,550201511-201812

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iZVW50¥1,410201511-201812

9011906915

main90119-06915¥60

9011906A06

main90119-06A06¥60

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

12 parts on this diagram · 1 diagram in section
