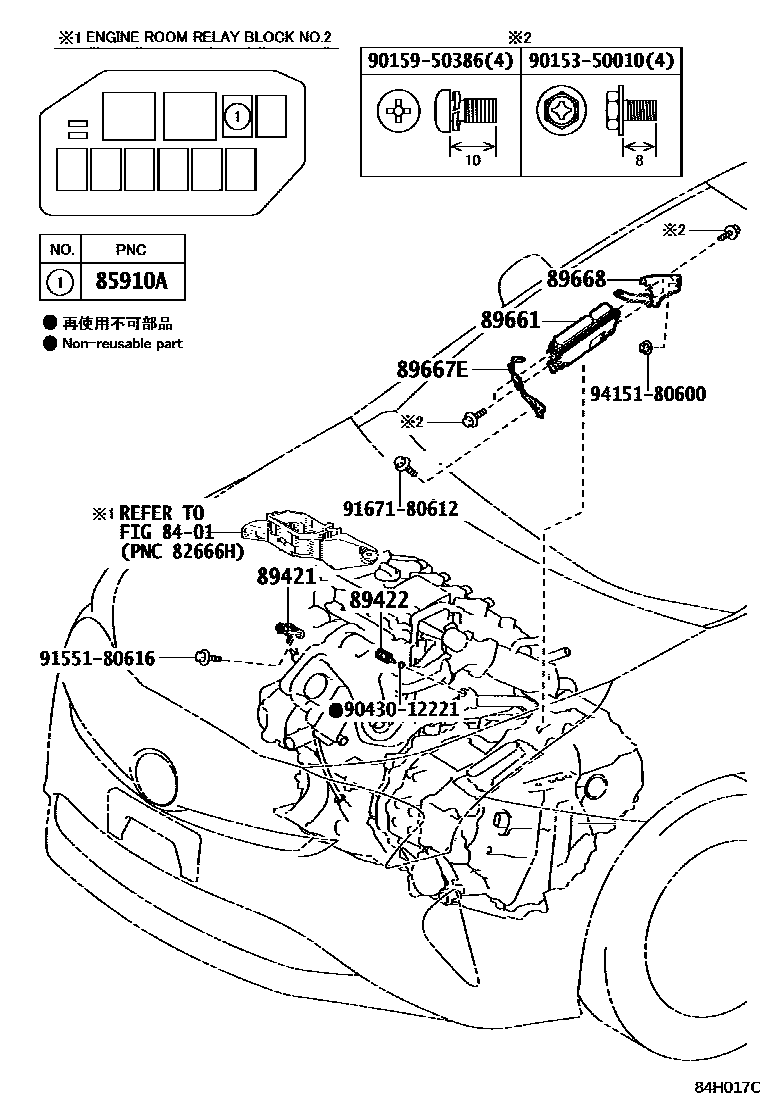

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZVW50201511-201812

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVW50201511-201812

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW50201511-201812

89661COMPUTER, ENGINE CONTROL

main89661-47700iZVW50..ARL201511-201704

sub89661-47701

main89661-47701iZVW50..ARL201705-201805

sub89661-47702

main89661-47702iZVW50..ARL201806-201812

DENSO TEN

sub89661-47703

main89661-47740iZVW50..GCC201511-201806

EXHAUST EMISSION CONTROL-EURO 6B,WITHOUT(ON BOARD DIAGNOSIS)

sub89661-47741

main89661-47741iZVW50..ARL201807-201812

DENSO TEN

sub89661-47742

main89661-47741iZVW50..ARL201807-201812

DENSO TEN,EXHAUST EMISSION CONTROL-EURO 6B,WITHOUT(ON BOARD DIAGNOSIS)

sub89661-47742

main89661-47A80iZVW50..ARL201812

DENSO TEN

main89661-47A90iZVW50..GCC201812-202006

DENSO TEN

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-47100iZVW50201511-201812

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47050iZVW50201511-201812

9015350010

main90153-50010

9015950386

main90159-50386

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
