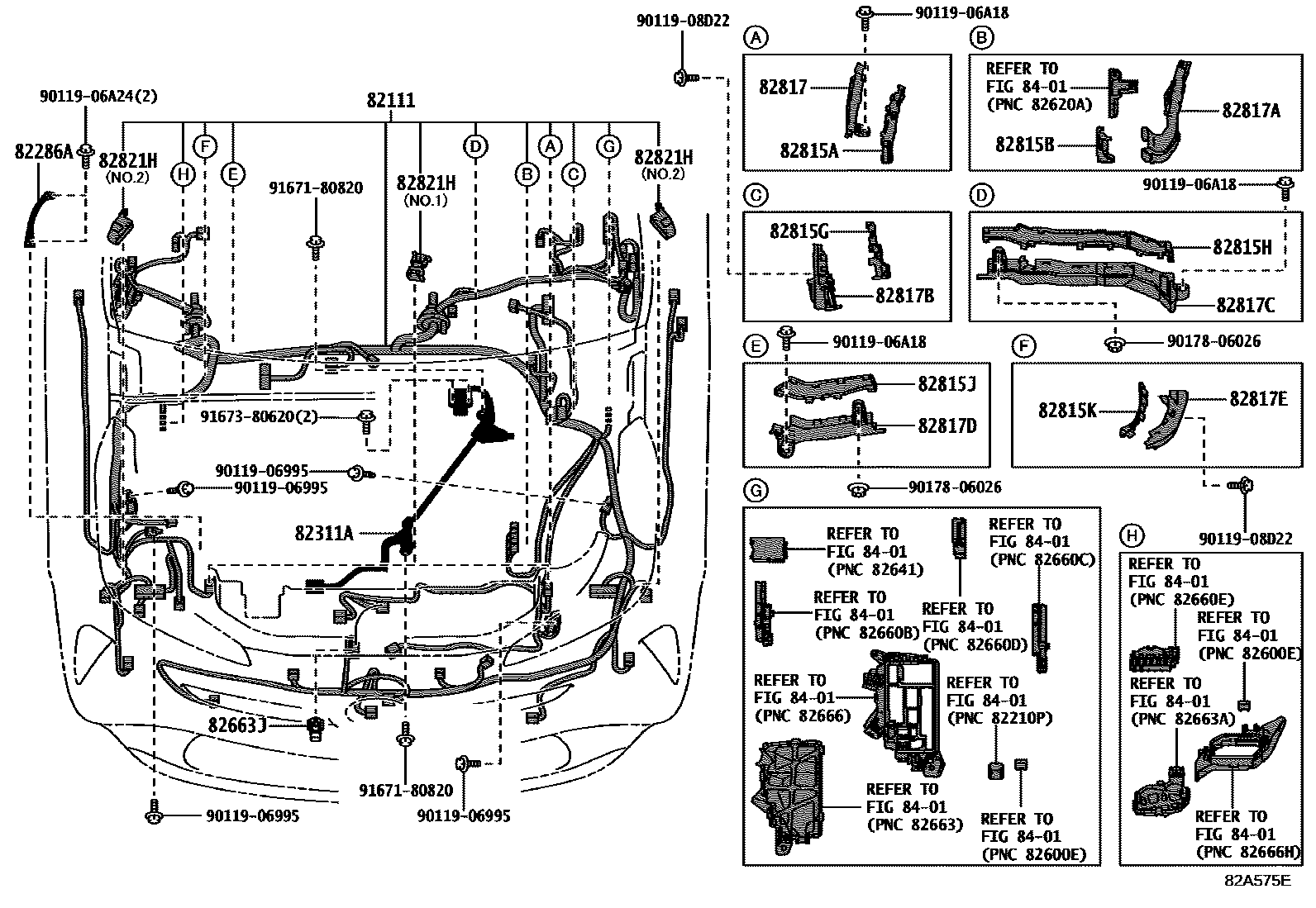

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1HIGH-TENSION CABLE 0009 1SEAT 0010 1CLAMP & BRACKET 0011 1CONNECTER 1/3 0012 1CONNECTER 2/3 0013 1CONNECTOR 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-47J20iZVW50..ARL201511-201605

sub82111-47J21

main82111-47J21iZVW50..ARL201606-201812

main82111-47U90iZVW50..GCC201511-201605

sub82111-47U91

main82111-47U91iZVW50..GCC201606-201812

main82111-4E090iZVW50..GCC201812-201908

main82111-4E091iZVW50..GCC201908-202006

main82111-4E160iZVW50..ARL201812-201908

main82111-4E161iZVW50..ARL201908-202007

main82111-4EA30iZVW50202007

82286AWIRE, EARTH, NO.2

main82286-47010iZVW50¥1,430201511-202006

82311AWIRE, AIR CONDITIONER

main821H2-47010iZVW50..GCC¥10,100201511-202006

82663JCOVER, CONNECTOR HOLDER

main82821-47410iZVW50¥360201908

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47880iZVW50¥400201511-201812

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47C20iZVW50¥500201511-201812

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47C80iZVW50..GCC201511-202006

main82815-47C90iZVW50..ARL¥980201511-201812

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47D00iZVW50..ARL¥650201511-201812

main82815-47D10iZVW50..GCC201511-202006

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47D20iZVW50..GCC201511-202006

main82815-47D30iZVW50..ARL¥1,070201511-201812

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-47D40iZVW50..ARL¥550201511-201812

main82815-47D60iZVW50..GCC201511-202006

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47N30iZVW50¥520201511-201812

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47N40iZVW50¥890201511-201812

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47N50iZVW50..GCC201511-202006

main82817-47N60iZVW50..ARL¥1,340201511-201812

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47N70iZVW50..ARL¥970201511-201812

main82817-47N80iZVW50..GCC201511-202006

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47N90iZVW50..GCC201511-202006

main82817-47P00iZVW50..ARL¥1,600201511-201812

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47P10iZVW50..ARL¥920201511-201812

main82817-47P30iZVW50..GCC201511-202006

82821HCOVER, CONNECTOR

main82821-30650iZVW50¥60201511-201812

main82821-30650iZVW50¥60201812

NO.1

main82821-50780iZVW50¥250201812

NO.2

8401

9011906995

main90119-06995¥60

9011906A18

main90119-06A18¥80

9011906A24

main90119-06A24¥60

9011908D22

main90119-08D22¥80

9017806026

main90178-06026¥80

9167180820

main91671-80820¥80

9167380620

main91673-80620¥60

25 parts on this diagram · 13 diagrams in section
