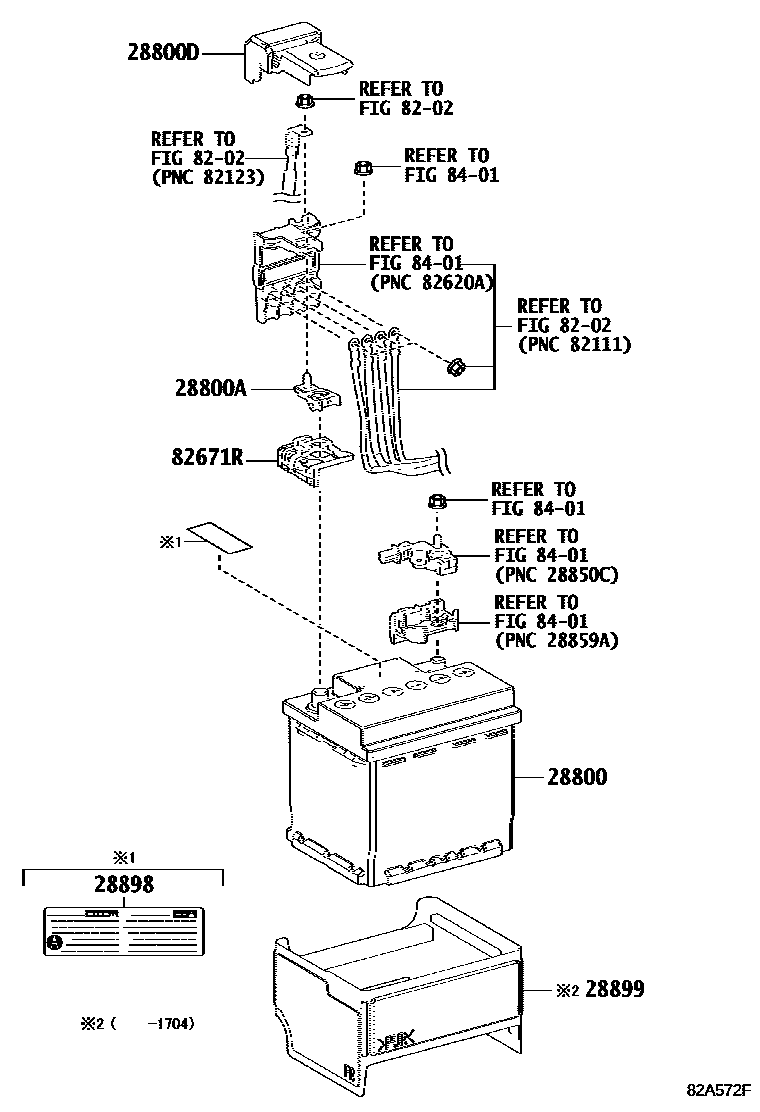

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-37130i2ZRFXE..ZVW50201511-202211

LN1

sub28800-37131

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ZRFXE..ZVW50201511-202006

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-47020i2ZRFXE..ZVW50201511-202006

28898PLATE, BATTERY

main28897-36030i2ZRFXE..ZVW50..GCC201608-202006

28899INSULATOR, BATTERY

main28899-37060i2ZRFXE..ZVW50201511-201704

8202

82671RSTOPPER, BATTERY TERMINAL

main82671-47040iZVW50201511-202006

8401

8 parts on this diagram · 4 diagrams in section
