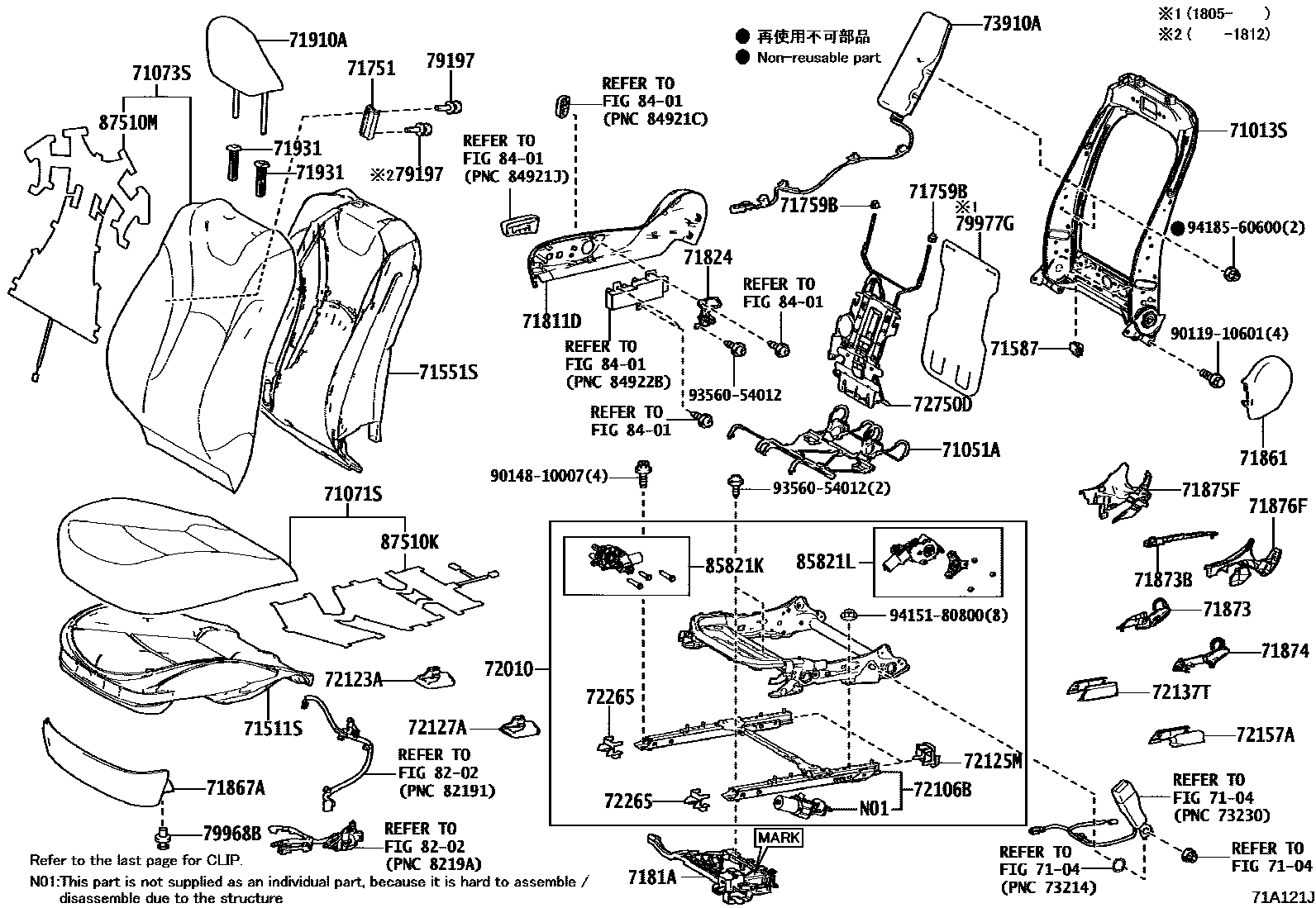

FRONT SEAT & SEAT TRACK

0001 1RH, POWER SEAT 0002 1RH, MANUAL 6-WAY SEAT 0003 1RH, MANUAL 4-WAY SEAT 0004 1LH, POWER SEAT 0005 1LH, MANUAL 6-WAY SEAT 0006 1LH, MANUAL 4-WAY SEAT 0007 1CLIP

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-47130iZVW50201511-201705

sub71013-47150

main71013-47150iZVW50201705-201812

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iZVW50201511-201812

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47A50-B2iZVW50..GCC201511-201812

COOL GRAY,TRIM1#

main71071-47A50-C2iZVW50..GCC201511-201812

BLACK,TRIM2#

main71071-47A60-B3iZVW50..ARL201511-201812

COOL GRAY,TRIM1#

main71071-47A60-C3iZVW50..ARL201511-201812

BLACK,TRIM2#

main71071-47D40-B3iZVW50..GCC201812-202006

COOL GRAY,TRIM1#

main71071-47D40-C2iZVW50..GCC201812-202006

BLACK,TRIM2#

main71071-47D50-B6iZVW50..ARL201812

COOL GRAY,TRIM1#

main71071-47D50-C4iZVW50..ARL201812

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47880-B4iZVW50201511-201812

COOL GRAY,TRIM1#

main71073-47880-C4iZVW50201511-201812

BLACK,TRIM2#

main71073-47C90-B2iZVW50202007

COOL GRAY,TRIM1#

main71073-47C90-C2iZVW50202007

BLACK,TRIM2#

main71073-47D10-B3iZVW50201812-202007

COOL GRAY,TRIM1#

main71073-47D10-C3iZVW50201812-202007

BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-47040iZVW50..GCC201511-202006

main71511-47250iZVW50..ARL201511-201812

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47250iZVW50201511-202007

main71551-47270iZVW50202007

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iZVW50201511-201812

71751HANGER, SEAT COVER

main71751-47050iZVW50201511-202007

71759BHOOK, FRONT SEATBACK

main71759-50040iZVW50..ARL201511-201812

main71759-52050iZVW50..GCC201812-202006

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47150-C0iZVW50..GCC201511-201610

BLACK,TRIM1#,2#

sub71811-47150

main71811-47150-C1iZVW50..GCC201610-202006

BLACK,TRIM1#,2#

sub71811-47150

main71811-47170-C0iZVW50..ARL201511-201610

BLACK,TRIM1#,2#

sub71811-47170

main71811-47170-C1iZVW50..ARL201610-201812

BLACK,TRIM1#,2#

sub71811-47170

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iZVW50201511-201812

71824BRACKET, FRONT SEAT SIDE, NO.1 RH

main72713-47010

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C0iZVW50..ARL201511-201610

BLACK,TRIM1#,2#

sub71861-47070

main71861-47070-C1iZVW50..ARL201610-201812

BLACK,TRIM1#,2#

sub71861-47070

main71861-47080-C0iZVW50..GCC201511-201610

BLACK,TRIM1#,2#

sub71861-47080

main71861-47080-C1iZVW50..GCC201610-202006

BLACK,TRIM1#,2#

sub71861-47080

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iZVW50..ARL201511-201812

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iZVW50..ARL201511-201812

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C0iZVW50..ARL201511-201610

BLACK,TRIM1#,2#

sub71875-47040

main71875-47040-C1iZVW50..ARL201610-201812

BLACK,TRIM1#,2#

sub71875-47040

main71875-47060-C0iZVW50..GCC201511-201610

BLACK,TRIM1#,2#

sub71875-47060

main71875-47060-C1iZVW50..GCC201610-202006

BLACK,TRIM1#,2#

sub71875-47060

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C0iZVW50..ARL201511-201610

BLACK,TRIM1#,2#

sub71875-47070

main71875-47070-C1iZVW50..ARL201610-201812

BLACK,TRIM1#,2#

sub71875-47070

main71875-47080-C0iZVW50..GCC201511-201610

BLACK,TRIM1#,2#

sub71875-47080

main71875-47080-C1iZVW50..GCC201610-202006

BLACK,TRIM1#,2#

sub71875-47080

71910AHEADREST ASSY, FRONT SEAT

main71910-47440-B1iZVW50201511-201812

COOL GRAY,TRIM1#

main71910-47440-B6iZVW50201812

COOL GRAY/TURQUOISE,TRIM1#

main71910-47440-C1iZVW50201511-201812

BLACK,TRIM2#

main71910-47440-C7iZVW50201812

BLACK/DK.GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B0iZVW50201511-201812

W(LOCK),COOL GRAY,TRIM10

main71930-47050-C0iZVW50201511-201610

W(LOCK),BLACK,TRIM10,2#

main71930-47050-C5iZVW50201610-201812

W(LOCK),BLACK,TRIM10,2#

main71931-47030-B0iZVW50201511-201812

W/O(LOCK),COOL GRAY,TRIM10

main71931-47030-C0iZVW50201511-201610

W/O(LOCK),BLACK,TRIM10,2#

main71931-47030-C4iZVW50201610-201812

W/O(LOCK),BLACK,TRIM10,2#

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-47360iZVW50..ARL201511-201905

main72010-47361iZVW50..ARL201906

main72010-47380iZVW50..GCC201511-201811

main72010-47381iZVW50..GCC201812-202006

72106BRAIL SUB-ASSY, SEAT TRACK, UPPER RH

main72106-33070iZVW50..ARL201511-201812

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47060iZVW50201511-202006

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-47010iZVW50201511-201803

INNER

main72125-47010iZVW50201803-201812

main72125-47020iZVW50201511-201803

OUTER

sub72125-47010

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-47060iZVW50201511-202006

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iZVW50..ARL201511-202006

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iZVW50201511-202006

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iZVW50201511-201812

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-11020iZVW50..ARL201805-201812

main72750-33140iZVW50..ARL201812

main72750-47020iZVW50..ARL201511-201804

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47080iZVW50201511-202007

main73910-47110iZVW50202007

79197HOOK, SEATBACK COVER

main79197-47010iZVW50201511-202007

79968BCLIP

79977GFELT, FRONT SEATBACK, RH

main79977-33030iZVW50..ARL201805-201812

8202

8401

85821KMOTOR ASSY, POWER SEAT TILT, RH

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

87510MHEATER ASSY, FRONT SEATBACK, RH

9011910601

main90119-10601

9014810007

main90148-10007

9356054012

main93560-54012

9415180800

main94151-80800

9418560600

main94185-60600
