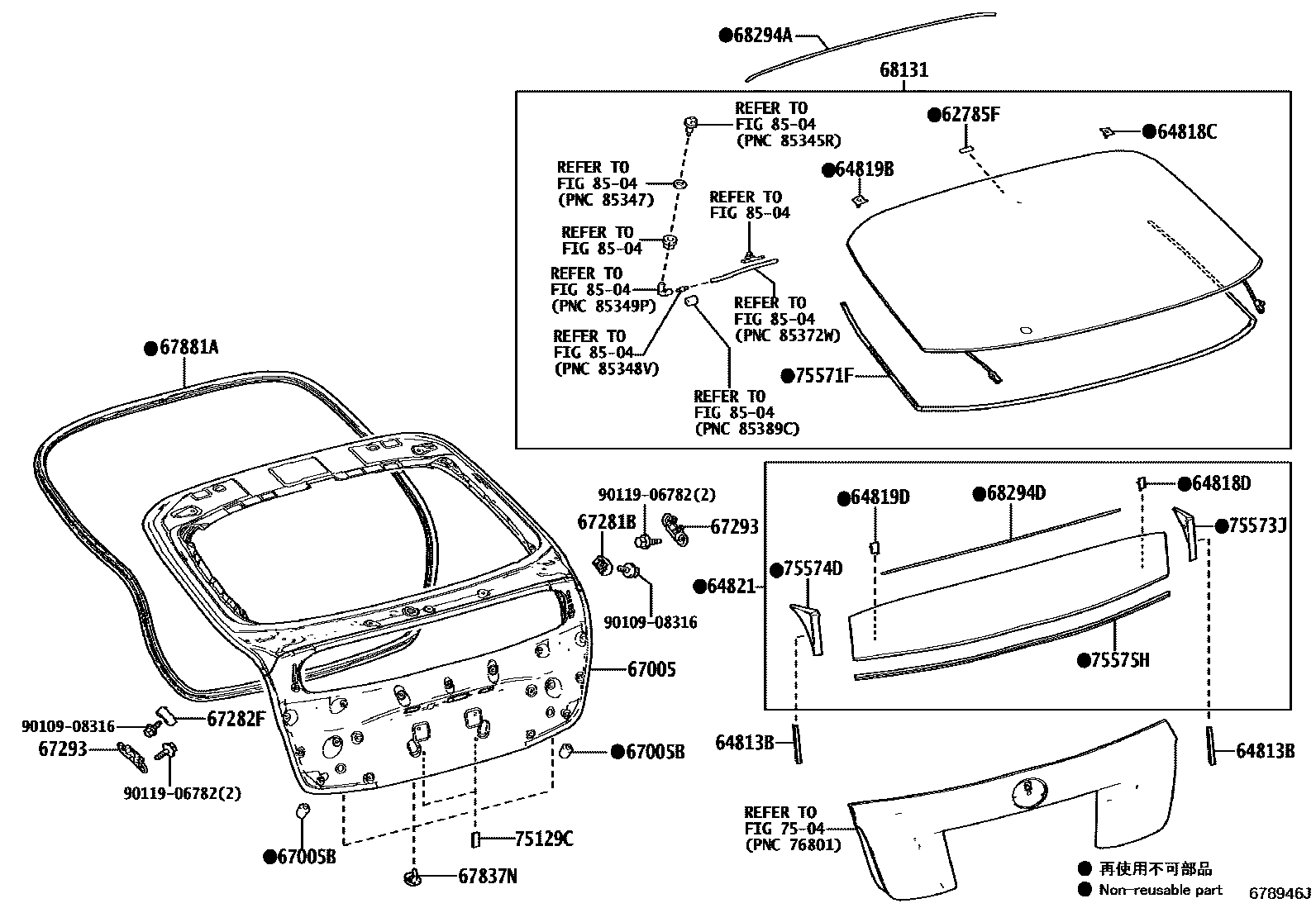

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64818CSPACER, BACK WINDOW GLASS, NO.1
64818DSPACER, BACK WINDOW GLASS, NO.3
64819BSPACER, BACK WINDOW GLASS, NO.2
64819DSPACER, BACK WINDOW GLASS, NO.4
64821GLASS, BACK WINDOW FIX
67005PANEL SUB-ASSY, BACK DOOR
DECONTENT PACKAGE
BACK MONITOR-WITH(GUIDE)
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294ADAM, BACK DOOR GLASS ADHESIVE
68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2
7504
75129CCUSHION, REAR LICENCE PLATE
75571FMOULDIMG, BACK DOOR WINDOW
75573JMOULDING, BACK WINDOW, OUTSIDE RH NO.2
75574DMOULDING, BACK WINDOW, OUTSIDE LH NO.2
75575HMOULDING, BACK WINDOW, LOWER NO.2
8504
9010908316
9011906782
26 parts on this diagram · 2 diagrams in section
