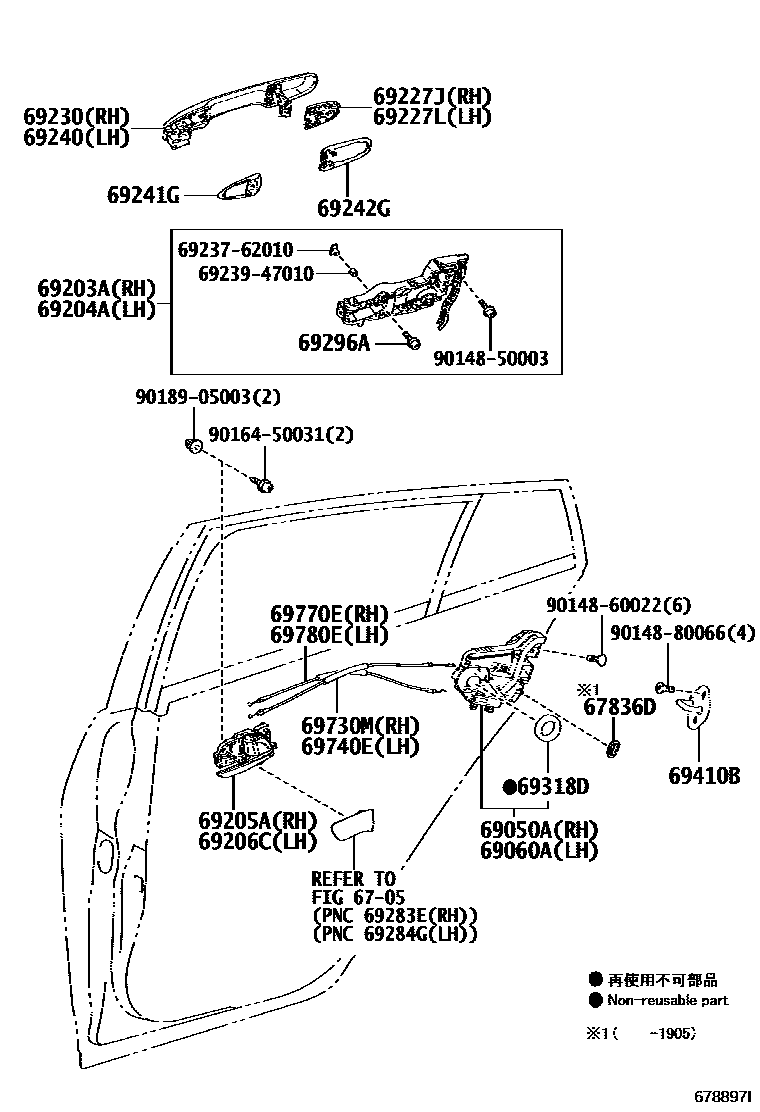

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
BLUE ME.,8X7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
BLUE ME.,8X7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
6923762010RETAINER, DOOR OUTSIDE HANDLE
6923947010PIN, BACK DOOR OUTSIDE HANDLE
9014850003
9014860022
9014880066
9016450031
9018905003
28 parts on this diagram · 1 diagram in section
