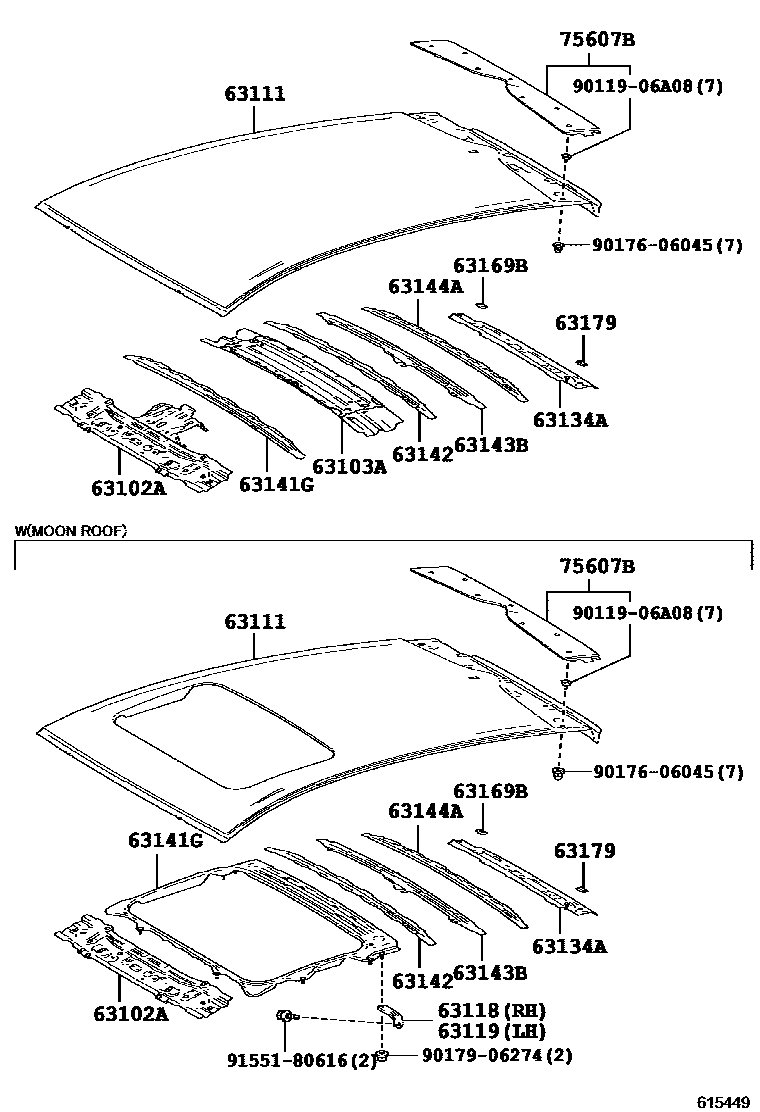

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47902iZVW50201511-201812

main63102-47903iZVW50..ARL201511-201812

MOON ROOF-WITH

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47040iZVW50201511-201812

sub63103-47050

63111PANEL, ROOF

main63111-47060iZVW50201511-201812

main63111-47070iZVW50..ARL201511-201812

MOON ROOF-WITH

63118SUPPORT, ROOF PANEL, RH

main63118-47020iZVW50..ARL201511-201812

MOON ROOF-WITH

63119SUPPORT, ROOF PANEL, LH

main63118-47020iZVW50..ARL201511-201812

MOON ROOF-WITH

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-47040iZVW50201511-201812

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-47040iZVW50201511-201812

main63142-47050iZVW50..ARL201511-201812

MOON ROOF-WITH

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-47050iZVW50201511-201812

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-47050iZVW50201511-201812

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63177-47010iZVW50201511-201812

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iZVW50201511-201812

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iZVW50201511-201812

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-47010iZVW50201511-202006

9011906A08

main90119-06A08

9017606045

main90176-06045

9017906274

main90179-06274

9155180616

main91551-80616

17 parts on this diagram · 2 diagrams in section
