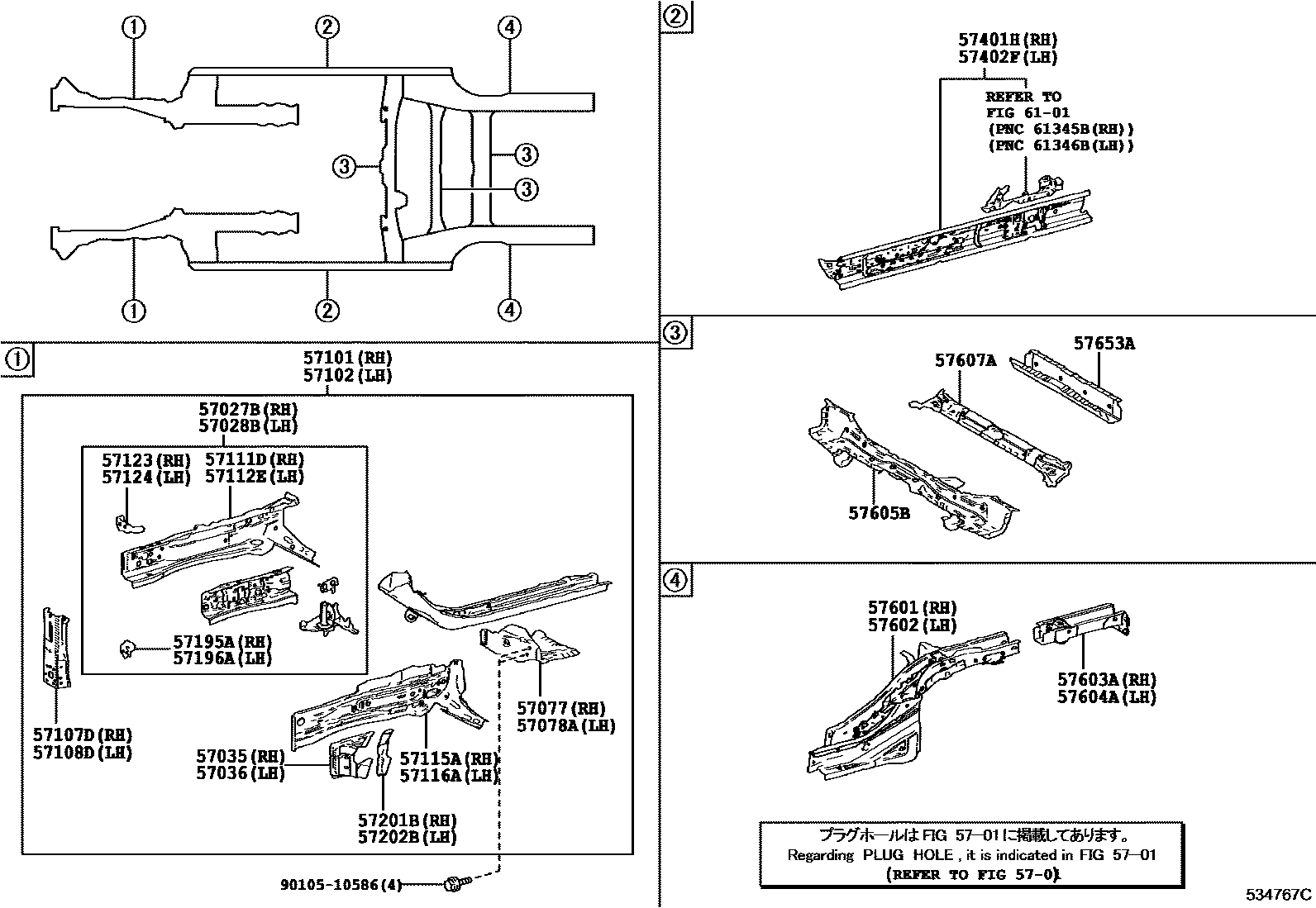

FLOOR SIDE MEMBER

5701

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47020iZVW50201511-201710

sub57027-47021

main57027-47021iZVW50201711-202006

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iZVW50..GCC201511-202006

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47020iZVW50201511-201804

sub57035-47021

main57035-47021iZVW50201805-202006

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47030iZVW50201511-201804

sub57036-47031

main57036-47031iZVW50201805-202006

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47040iZVW50201511-201907

sub57077-47041

main57077-47041iZVW50..GCC201908-202006

main57077-47050iZVW50..ARL201908

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47040iZVW50201511-201907

sub57078-47041

main57078-47041iZVW50..GCC201908-202006

main57078-47050iZVW50..ARL201908

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-47070iZVW50201511-201908

sub57101-47071

main57101-47071iZVW50..GCC201908-202006

main57101-47080iZVW50..ARL201908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-47070iZVW50..ARL201908

main57102-47090iZVW50201511-201908

sub57102-47091

main57102-47091iZVW50..GCC201908-202006

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-47030iZVW50201511-202006

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-47030iZVW50..GCC201511-202006

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iZVW50201511-202006

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iZVW50201511-202006

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iZVW50201511-202006

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iZVW50..GCC201511-202006

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iZVW50201511-202006

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iZVW50201511-202006

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iZVW50201511-202006

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iZVW50201511-202006

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57203-47010iZVW50201511-201804

sub57203-47011

main57203-47011iZVW50201805-202006

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57204-47010iZVW50201511-201804

sub57204-47011

main57204-47011iZVW50201805-202006

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-47080iZVW50201511-201710

sub57401-47081

main57401-47081iZVW50201711-202006

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-47140iZVW50201511-201710

sub57402-47141

main57402-47141iZVW50201711-202006

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12B70iZVW50201511-202201

main57601-12C30iZVW50202201

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12C50iZVW50201511-202201

main57602-12D10iZVW50202201

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47060iZVW50201511-201812

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47060iZVW50201511-201812

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-47080iZVW50201511-201812

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-47020iZVW50201511-201812

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-47040iZVW50201511-201811

main57653-47050iZVW50201811-201812

6101

9010510586

main90105-10586

32 parts on this diagram · 1 diagram in section
