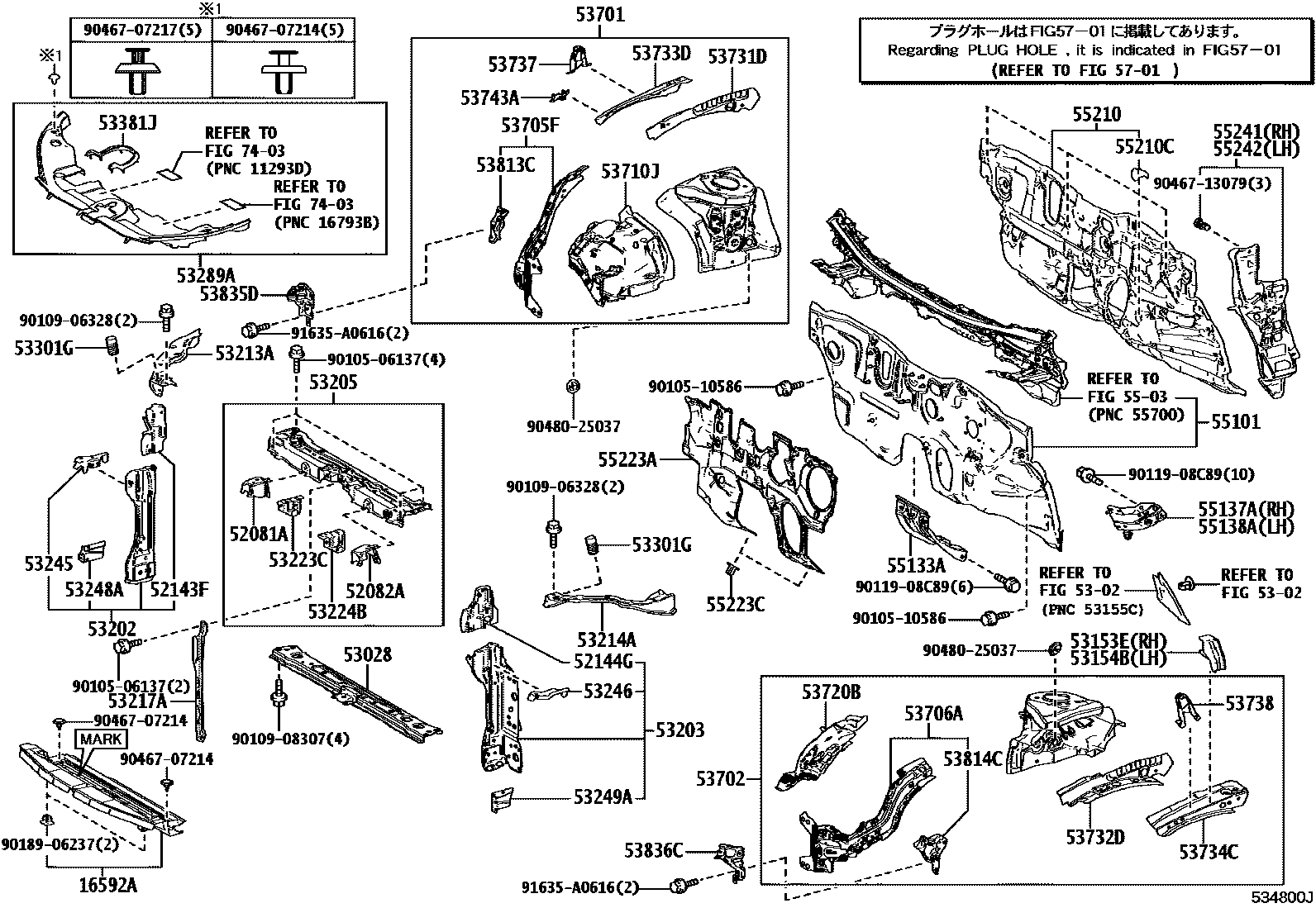

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

16592AGUIDE, RADIATOR AIR, NO.3

main16592-37010i2ZRFXE..ZVW50..GCC201511-201805

MARK 16592-37010

main16592-37020i2ZRFXE..ZVW50..ARL201511-201805

MARK 16592-37020

main16592-37110i2ZRFXE..ZVW50..GCC201812-202006

main16592-37110i2ZRFXE..ZVW50..GCC201805-201812

MARK 16592-37110

main16592-37120i2ZRFXE..ZVW50..ARL201805-201812

MARK 16592-37120

main16592-37120i2ZRFXE..ZVW50..ARL201812

52081ASTAY SUB-ASSY, FRONT BUMPER, RH

main52137-47010iZVW50201511-202006

52082ASTAY SUB-ASSY, FRONT BUMPER, LH

main52138-47010iZVW50201511-202006

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-47030iZVW50201511-202006

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-47050iZVW50201511-202006

5302

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-12050iZVW50..GCC201805-202006

main53028-47010iZVW50201511-201805

53153EGUIDE, FRONT SIDE AIR

main53153-47010iZVW50..GCC201511-202006

53154BGUIDE, FRONT SIDE AIR, NO.2

main53154-47010iZVW50201511-202006

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-47901iZVW50..ARL201511-202006

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-47901iZVW50201511-202006

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-47900iZVW50201511-202006

53213ASUPPORT, RADIATOR, UPPER RH

main53213-47050iZVW50201511-202006

53214ASUPPORT, RADIATOR, UPPER LH

main53214-47050iZVW50..ARL201511-202006

53217ABRACE, HOOD LOCK SUPPORT

main53217-47030iZVW50201511-201805

main53217-47031iZVW50201805-202006

53223CBRACKET, RADIATOR GRILLE MOUNTING, RH

main53223-47020iZVW50201511-202006

53224BBRACKET, RADIATOR GRILLE MOUNTING, LH

main53224-47010iZVW50..ARL201511-202006

53245BRACKET, HEADLAMP, RH

main53245-47010iZVW50201511-202006

53246BRACKET, HEADLAMP, LH

main53246-47010iZVW50201511-202006

53248ABRACKET, RADIATOR SHUTTER, RH

main53248-47010iZVW50201511-202006

53249ABRACKET, RADIATOR SHUTTER, LH

main53249-47010iZVW50..ARL201511-202006

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-47050iZVW50201511-201605

sub53289-47070

main53289-47070iZVW50..ARL201605-201612

sub53289-47071

main53289-47071iZVW50..ARL201701-201704

sub53289-47072

main53289-47072iZVW50..ARL201705-201812

main53289-47080iZVW50..GCC201605-201612

sub53289-47081

main53289-47081iZVW50..GCC201701-201704

sub53289-47082

main53289-47082iZVW50..GCC201705-201812

main53289-47090iZVW50..ARL201812

main53289-47100iZVW50..GCC201812-202006

53301GCUSHION, HOOD BUMPER

main90541-15037iZVW50..GCC201511-202006

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-47050iZVW50201511-201704

sub53381-47051

main53381-47051iZVW50201705-201812

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-47110iZVW50201511-201606

sub53701-47111

main53701-47111iZVW50201607-202006

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-47100iZVW50201511-201606

sub53702-47101

main53702-47101iZVW50..GCC201607-202006

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-47900iZVW50201511-201607

sub53705-47901

main53705-47901iZVW50201607-202006

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-47900iZVW50201511-201607

sub53706-47901

main53706-47901iZVW50201607-202006

53710JAPRON ASSY, FRONT FENDER, RH

main53710-47060iZVW50201511-202006

53720BAPRON ASSY, FRONT FENDER, LH

main53720-47070iZVW50201511-202006

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-47030iZVW50201511-201606

sub53731-47031

main53731-47031iZVW50201607-202006

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-47020iZVW50201511-202006

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-47020iZVW50201511-202006

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-47020iZVW50201511-202006

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-47040iZVW50201511-202006

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-47040iZVW50201511-202006

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-47020iZVW50201511-202006

53813CEXTENSION, FRONT FENDER, RH

main53813-47050iZVW50201511-202006

53814CEXTENSION, FRONT FENDER, LH

main53814-47030iZVW50201511-202006

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-47050iZVW50201511-202006

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-47050iZVW50..ARL201511-202006

5503

55101PANEL SUB-ASSY, DASH

main55101-47900iZVW50..GCC201511-202006

main55101-47901iZVW50..ARL201511-201901

sub55101-47904

main55101-47904iZVW50..ARL201901

55133AREINFORCEMENT, DASH TO FLOOR, RH

main55133-47010iZVW50..ARL201511-202006

55137ABRACE, DASH TO FRAME, RH

main55137-47040iZVW50..GCC201511-202006

55138ABRACE, DASH TO FRAME, LH

main55138-47070iZVW50..ARL201511-202006

55210INSULATOR ASSY, DASH PANEL

main55210-12730iZVW50..ARL201812

TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM

main55210-47210iZVW50..ARL201511-201812

TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM

main55210-47240iZVW50..GCC201511-201812

main55210-47250iZVW50..ARL201511-201812

main55210-47280iZVW50..GCC201812-202006

main55210-47290iZVW50..ARL201812

55210CCLIP

main90467-11122iZVW50201511-202006

55223AINSULATOR, DASH PANEL, OUTER

main55223-47090iZVW50..GCC201511-202006

main55223-47100iZVW50..ARL201511-201812

55223CCLIP

main90467-06197iZVW50201511-202006

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-47010iZVW50201511-202006

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-47010iZVW50201511-202006

5701

7403

9010506137

main90105-06137

9010510586

main90105-10586

9010906328

main90109-06328

9010908307

main90109-08307

9011908C89

main90119-08C89

9018906237

main90189-06237

9046707214

main90467-07214

9046707217

main90467-07217

9046713079

main90467-13079

9048025037

main90480-25037

91635A0616

main91635-A0616

65 parts on this diagram · 2 diagrams in section
