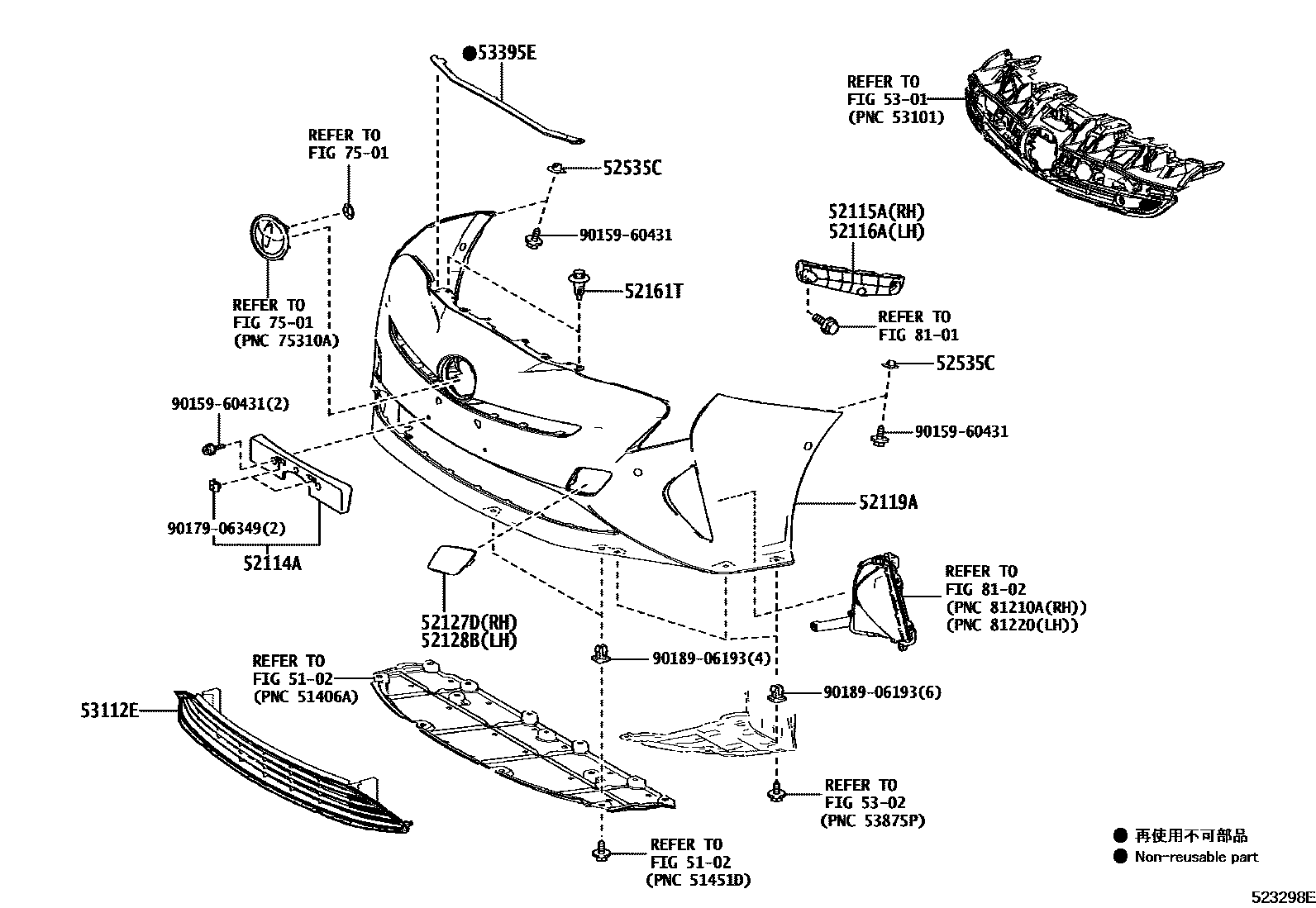

FRONT BUMPER & BUMPER STAY

0001 1BUMPER COVER 0002 1BUMPER REINFORCEMENT 0003 1

5102

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-47190iZVW50201511-201812

main52114-47270iZVW50201812

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47050iZVW50201511-201812

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47050iZVW50201511-201812

52119ACOVER, FRONT BUMPER

main52119-47962iZVW50201511-201812

PAINT REQ.

main52119-47980iZVW50201812-202211

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-47907iZVW50201511-201812

main52127-47911iZVW50201812

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-47906iZVW50201511-201812

main52128-47910iZVW50201812

52161TPIECE, FRONT BUMPER

main52161-16010iZVW50201511-201812

sub52161-0K040

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iZVW50201511-201812

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-47240iZVW50201511-201812

NO PAINT REQ.

main53112-47310iZVW50201812

53395ESEAL, HOOD TO FRONT END PANEL

main53395-47040iZVW50201511-201812

main53395-47060iZVW50201812

7501

8101

8102

9015960431

main90159-60431

9017906349

main90179-06349

9018906193

main90189-06193

19 parts on this diagram · 3 diagrams in section
