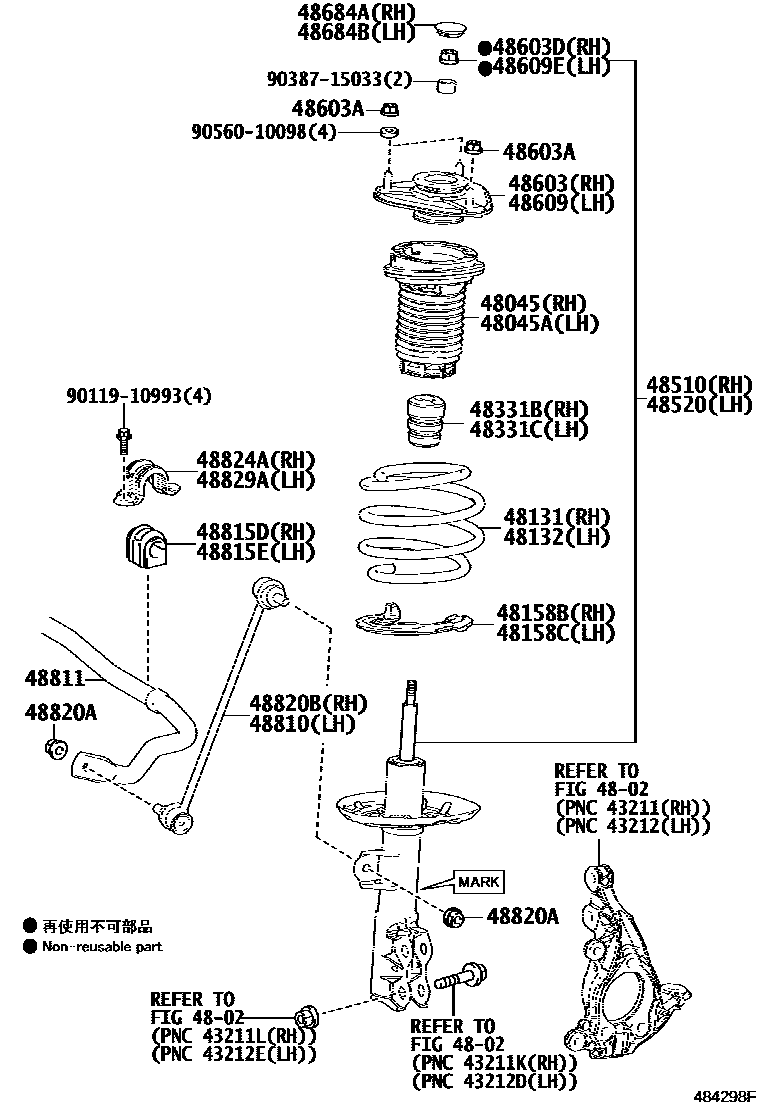

FRONT SPRING & SHOCK ABSORBER
4802
48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR
48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR
48131SPRING, FRONT COIL, RH
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)
48132SPRING, FRONT COIL, LH
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)
48331CBUMPER, FRONT SPRING, LH
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
MARK 48510-47300
MARK 48510-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)
MARK 48510-47300,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
MARK 48510-47430
MARK 48510-47450
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)&TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
MARK 48520-47300,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM
MARK 48520-47300
MARK 48520-47300,ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)
MARK 48520-47430
MARK 48520-47450
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
9038715033
9056010098
29 parts on this diagram · 2 diagrams in section
