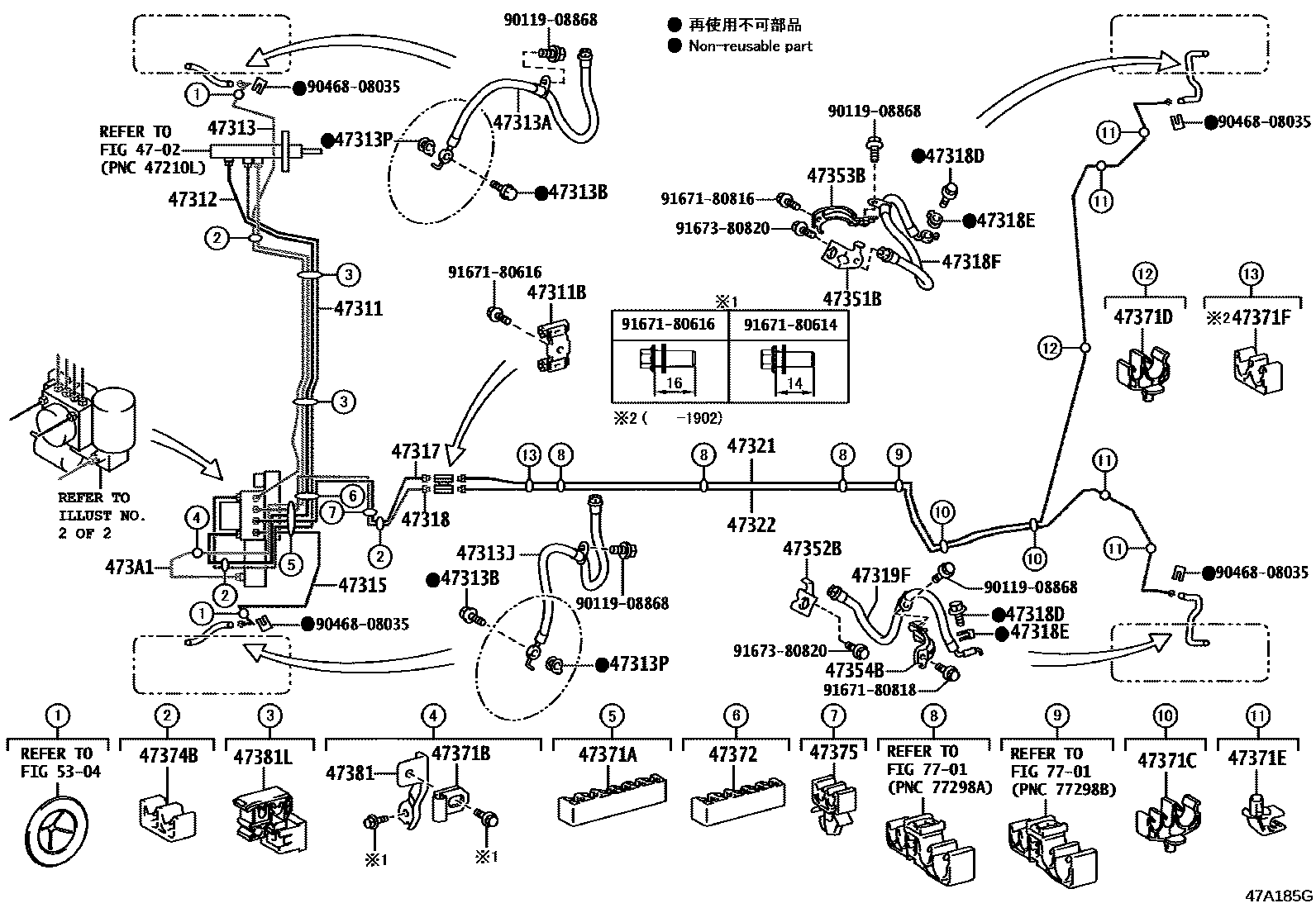

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR & BOOSTER PUMP0004 1BRAKE ACTUATOR & BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-12C90iZVW50..ARL201804-201812

main47311-12D00iZVW50..GCC201804-202006

main47311-47090iZVW50..ARL201511-201804

sub47311-12C90

main47311-47100iZVW50..GCC201511-201804

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZVW50201511-202006

47312TUBE, FRONT BRAKE, NO.2

main47312-12820iZVW50..ARL201804-201812

main47312-12830iZVW50..GCC201804-202006

main47312-47070iZVW50..ARL201511-201804

sub47312-12820

main47312-47080iZVW50..GCC201511-201804

47313TUBE, FRONT BRAKE, NO.3

main47313-12A70iZVW50..ARL201804-201812

main47313-12A80iZVW50..GCC201804-202006

main47313-47070iZVW50..ARL201511-201804

main47313-47080iZVW50..GCC201511-201804

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iZVW50201511-202211

sub90947-02K97

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iZVW50201511-202006

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iZVW50201511-202211

sub90947-02K98

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iZVW50201511-202006

47315TUBE, FRONT BRAKE, NO.5

main47315-12660iZVW50..ARL201804-201812

main47315-12670iZVW50..GCC201804-202006

main47315-47060iZVW50..ARL201511-201804

sub47315-12660

main47315-47070iZVW50..GCC201511-201804

47317TUBE, FRONT BRAKE, NO.7

main47317-12640iZVW50..ARL201804-201812

main47317-12650iZVW50..GCC201804-202006

main47317-47060iZVW50..ARL201511-201804

sub47317-12640

main47317-47070iZVW50..GCC201511-201804

47318TUBE, FRONT BRAKE, NO.8

main47318-12770iZVW50..ARL201804-201812

main47318-12780iZVW50..GCC201804-202006

main47318-47050iZVW50..ARL201511-201804

sub47318-12770

main47318-47060iZVW50..GCC201511-201804

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZVW50..GCC201511-202006

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iZVW50201511-202006

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H48iZVW50..GCC201511-202006

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H48iZVW50..ARL201511-202006

47321TUBE, REAR BRAKE, NO.1

main47321-47070iZVW50201511-201612

sub47321-47071

main47321-47071iZVW50201701-202006

47322TUBE, REAR BRAKE, NO.2

main47322-47070iZVW50201511-201612

sub47322-47071

main47322-47071iZVW50201701-202006

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iZVW50201511-202006

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iZVW50201511-202006

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-47040iZVW50..GCC201511-202006

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-47040iZVW50201511-202006

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E17iZVW50..ARL201511-201812

main90949-01E32iZVW50..GCC201511-201605

sub90949-01E51

main90949-01E51iZVW50..GCC201606-202006

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10854iZVW50201511-202006

47371CCLAMP, BRAKE TUBE, NO.7

main77286-47050iZVW50201511-202006

47371DCLAMP, BRAKE TUBE, NO.8

main77285-47110iZVW50201511-202006

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E10iZVW50..ARL201511-202006

47371FCLAMP, BRAKE TUBE, NO.10

main90464-00904iZVW50201511-201902

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D99iZVW50..GCC201511-202006

main90949-01E15iZVW50..ARL201511-201812

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D91iZVW50..ARL201511-201812

main90949-01E33iZVW50..GCC201511-202006

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D91iZVW50..GCC201511-202006

main90949-01E34iZVW50..ARL201511-201812

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-47060iZVW50..ARL201511-201812

main47381-47070iZVW50..GCC201511-202006

47381LBRACKET, BRAKE TUBE CLAMP, NO.3

main90949-01E08iZVW50..ARL201511-201605

sub90949-01E49

main90949-01E49iZVW50..ARL201606-201812

473A1TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER

main473A1-12010iZVW50..ARL201804-201812

main473A1-12020iZVW50..GCC201804-202006

main473A1-47010iZVW50..ARL201511-201804

main473A1-47020iZVW50..GCC201511-201804

5304

7701

9011908868

main90119-08868

9046808035

main90468-08035

9167180614

main91671-80614

9167180616

main91671-80616

9167180816

main91671-80816

9167180818

main91671-80818

9167380820

main91673-80820

43 parts on this diagram · 4 diagrams in section
