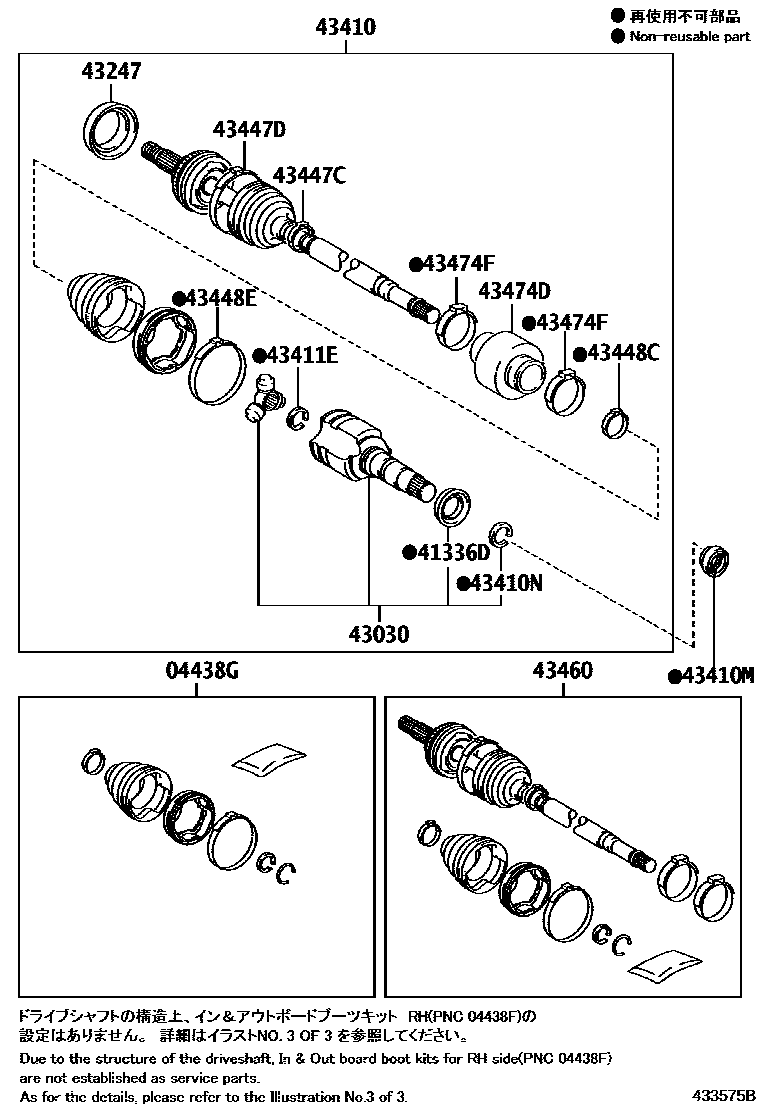

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47033iZVW50..GCC201511-202006

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZVW50201511-202006

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZVW50201511-201812

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZVW50201511-202006

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47040iZVW50201511-201812

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iZVW50201511-202006

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iZVW50201511-202006

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZVW50201511-202006

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZVW50..ARL201511-202006

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZVW50201511-202006

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZVW50201511-202006

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZVW50201511-202006

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49427iZVW50201511-201812

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZVW50..ARL201511-202006

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iZVW50..ARL201511-202006

15 parts on this diagram · 3 diagrams in section
