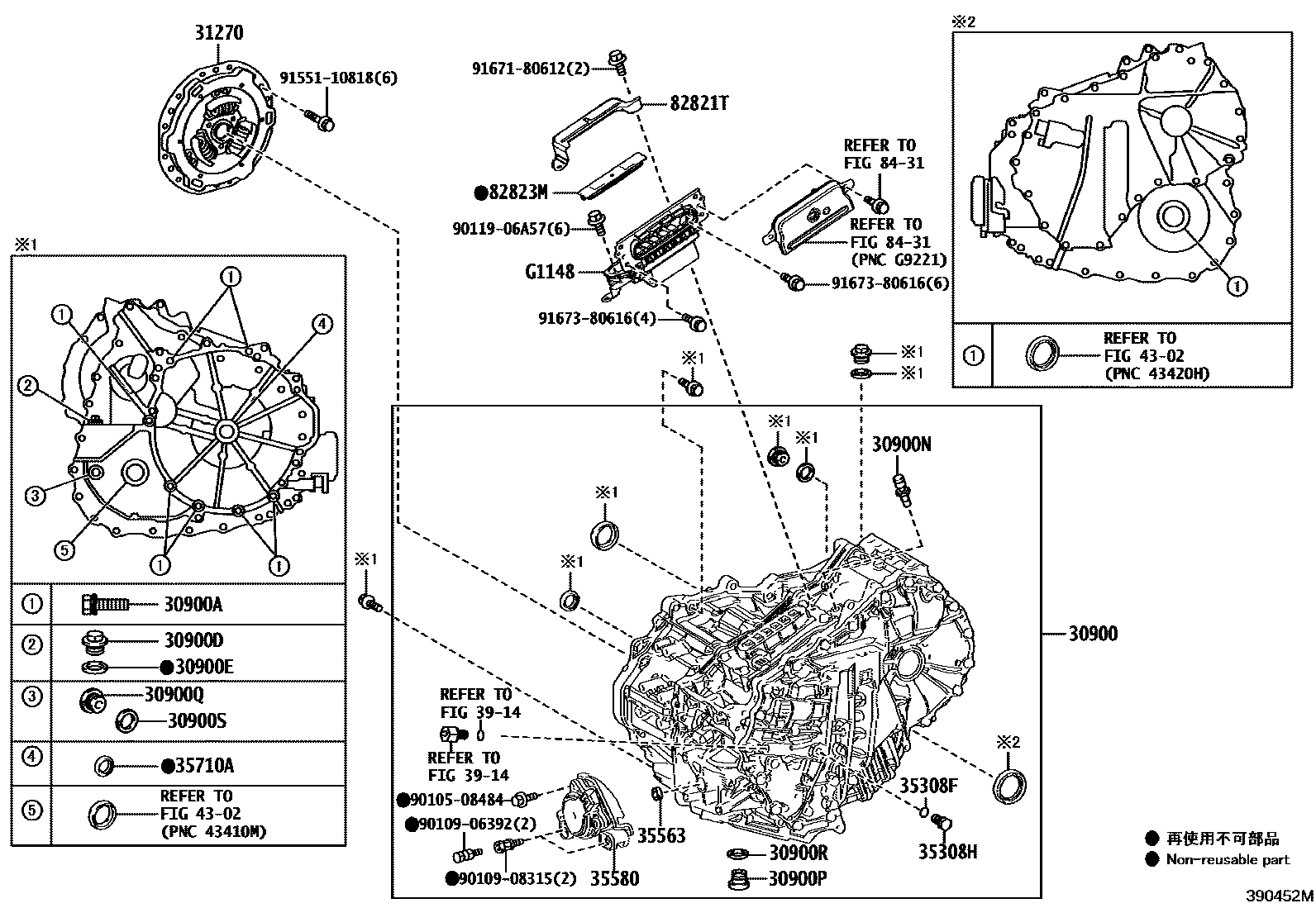

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47090iZVW50201511-202006

sub30900-47100

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045iZVW50201511-202006

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZVW50201511-202006

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZVW50201511-202006

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZVW50201511-202006

30900PPLUG, DRAIN(HEV)

main90341-18016iZVW50201511-202006

30900QPLUG, FILLER(HEV)

main90341-18016iZVW50201511-202006

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZVW50201511-202006

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZVW50201511-202006

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-47070iZVW50201511-202006

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iZVW50201511-202208

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iZVW50201511-202208

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-47010iZVW50201511-202006

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-47040iZVW50201511-202006

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZVW50201511-202006

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZVW50201511-201812

82823MCAP, TERMINAL

main82823-47040iZVW50201511-201812

8431

G1148CABLE, MOTOR

mainG114847070iZVW50201511-202006

9010508484

main90105-08484

9010906392

main90109-06392

9010908315

main90109-08315

9011906A57

main90119-06A57

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

28 parts on this diagram · 1 diagram in section
