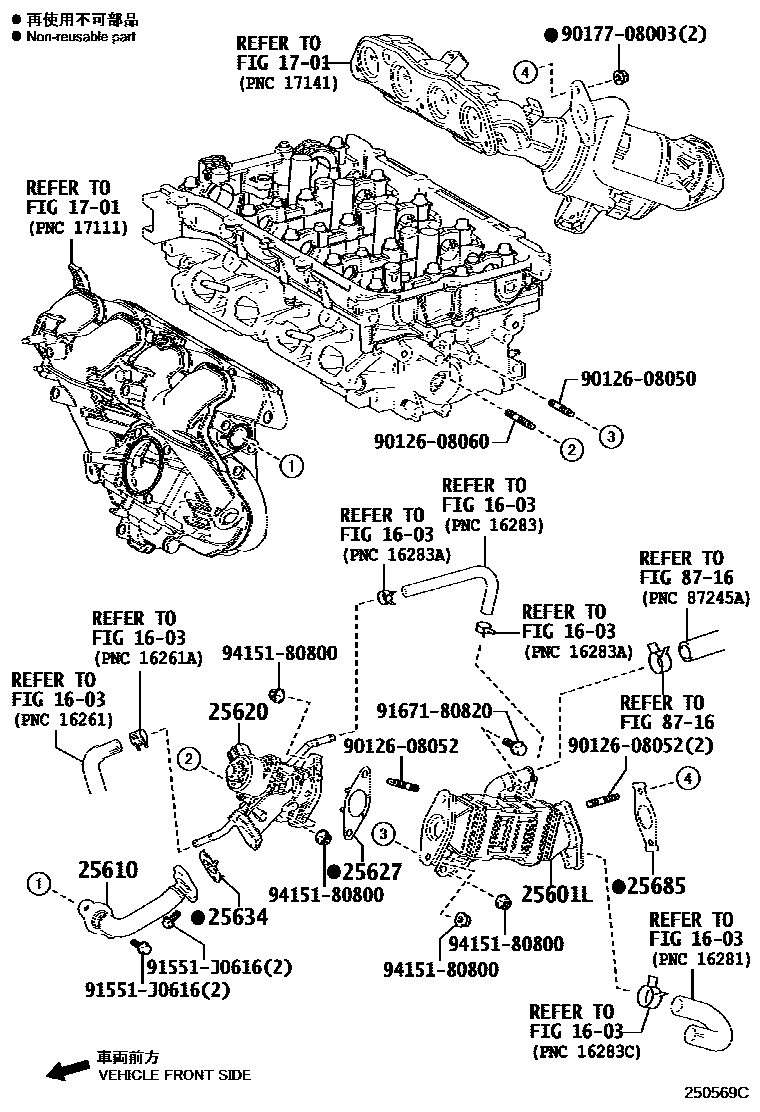

EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-37030i2ZRFXE..ZVW50201511-202107

sub25601-37060

sub16281-37190

main25601-37060i2ZRFXE..ZVW50202107

25610PIPE ASSY, EGR

main25610-37020i2ZRFXE..ZVW50201511-201709

main25610-37030i2ZRFXE..ZVW50201709-201812

25620VALVE ASSY, EGR

main25620-37150i2ZRFXE..ZVW50201511-201812

25627GASKET, EGR VALVE

main25627-37020i2ZRFXE..ZVW50201511-201812

25634GASKET, EGR PIPE

main25634-37020i2ZRFXE..ZVW50201511-201812

25685GASKET, EGR COOLER, NO.1

main25685-37020i2ZRFXE..ZVW50201511-201812

8716

9012608050

main90126-08050

9012608052

main90126-08052

9012608060

main90126-08060

9017708003

main90177-08003

91551J0616

main91551-J0616

9167180820

main91671-80820

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
