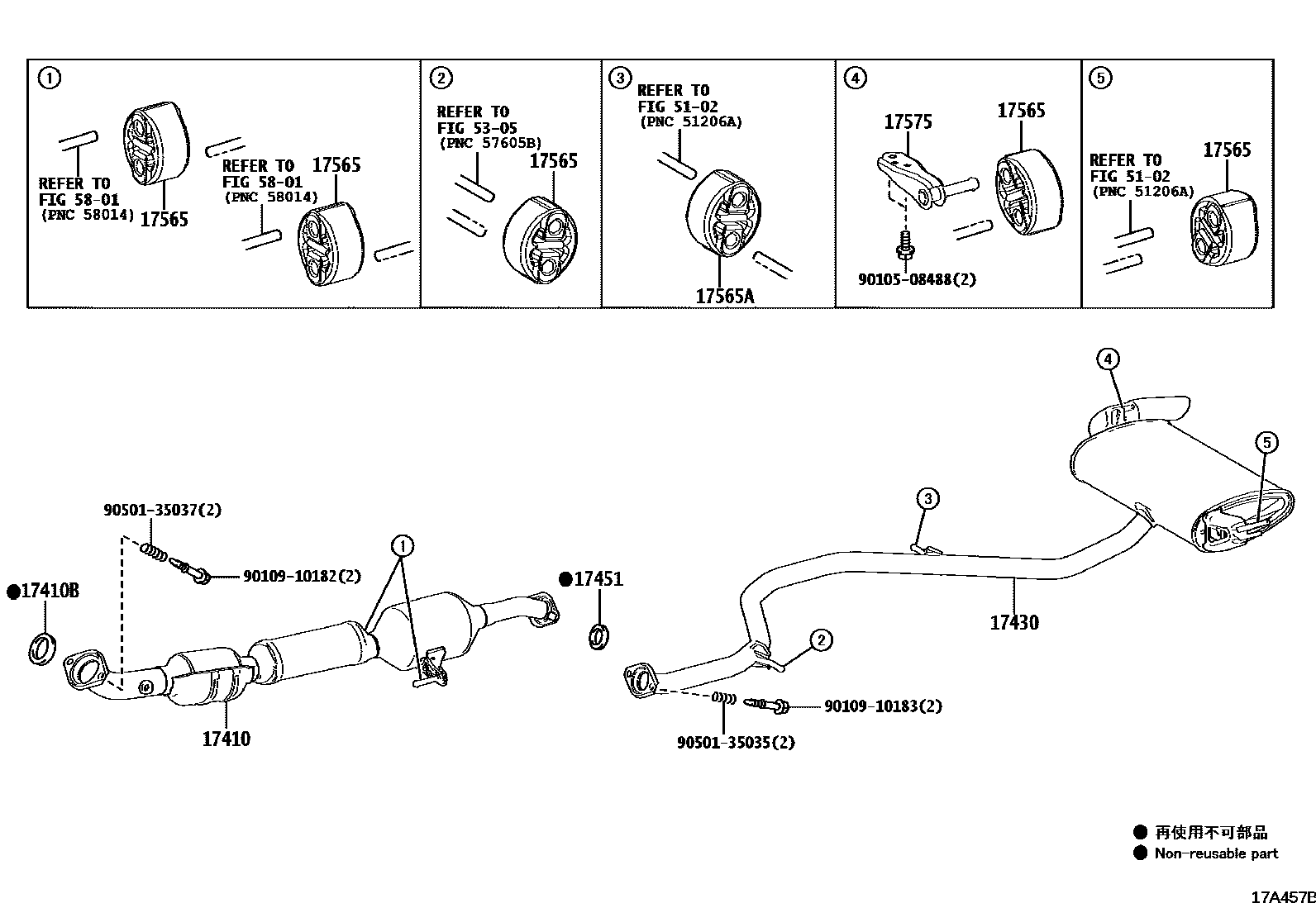

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37A30i2ZRFXE..ZVW50201511-201608

*114=TOYOTA/TL3/Y

sub17410-37B70

main17410-37B70i2ZRFXE..ZVW50201608-201812

*114=TOYOTA/TL3/Y

sub17410-37B72

main17410-37B72i2ZRFXE..ZVW50201812

*114=TOYOTA/TL3/Y

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW50201511-202006

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-37630i2ZRFXE..ZVW50201511-201607

sub17430-37730

main17430-37730i2ZRFXE..ZVW50201608-201812

sub17430-37731

main17430-37731i2ZRFXE..ZVW50201812-201907

sub17430-37B20

main17430-37B20i2ZRFXE..ZVW50201908

17451GASKET, EXHAUST PIPE

main17451-23042i2ZRFXE..ZVW50201511-202006

sub17451-23043

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ZRFXE..ZVW50201511-202006

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2ZRFXE..ZVW50201511-201812

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030i2ZRFXE..ZVW50201511-202006

5102

5305

5801

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

9050135035

main90501-35035

9050135037

main90501-35037

15 parts on this diagram · 1 diagram in section
