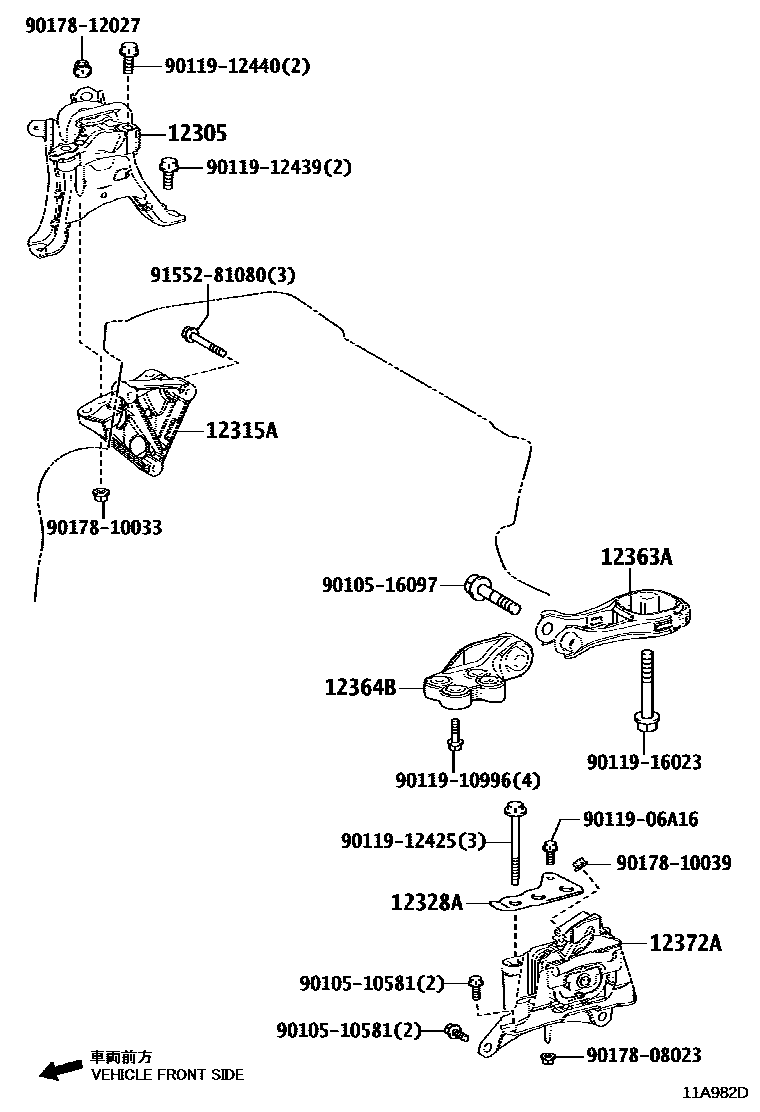

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-37340i2ZRFXE..ZVW50201511-201807

sub12305-37341

main12305-37341i2ZRFXE..ZVW50201808-202009

sub12305-37342

main12305-37342i2ZRFXE..ZVW50202010

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37060i2ZRFXE..ZVW50201511-202006

12328ASTAY, ENGINE MOUNTING, NO.2 LH

main12328-37010i2ZRFXE..ZVW50201511-202006

12363AROD, ENGINE MOVING CONTROL

main12363-37030i2ZRFXE..ZVW50201511-201808

sub12363-37031

main12363-37031i2ZRFXE..ZVW50201809-202302

sub12363-37032

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-37040i2ZRFXE..ZVW50201511-202006

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-37300i2ZRFXE..ZVW50201511-201512

sub12372-37301

main12372-37301i2ZRFXE..ZVW50201601-201612

sub12372-37311

main12372-37311i2ZRFXE..ZVW50201701-201804

sub12372-37312

main12372-37312i2ZRFXE..ZVW50201805-201810

sub12372-37313

main12372-37313i2ZRFXE..ZVW50201811-202006

9010510581

main90105-10581

9010516097

main90105-16097

9011906A16

main90119-06A16

9011910996

main90119-10996

9011912425

main90119-12425

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

9017808023

main90178-08023

9017810033

main90178-10033

9017810039

main90178-10039

9017812027

main90178-12027

9155281080

main91552-81080

19 parts on this diagram · 1 diagram in section
